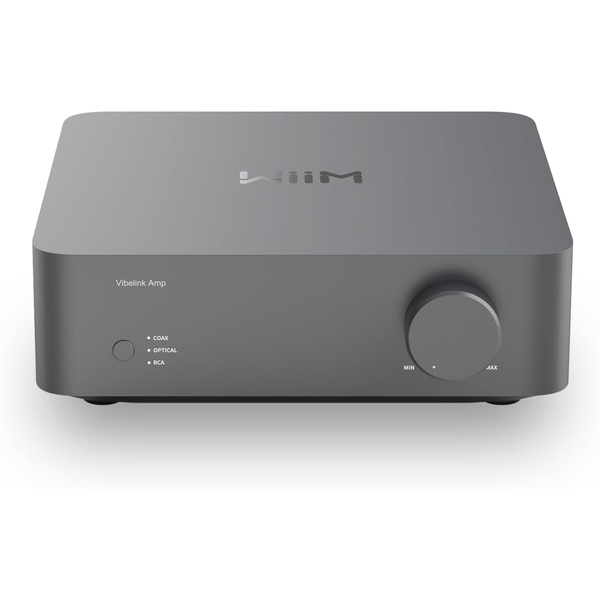

WiiM Vibelink Amp 200W Power Amplifier with Premium ESS SABRE DAC - Space Grey
WiiM Vibelink Amp Unleash the Power of Pure Sound
Why Choose WiiM Vibelink Amp?
Power. Precision. Pure Performance. Designed for music lovers and home theater enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8O and 200W per channel at 4O, providing powerful, high-fidelity amplification. Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision, ensuring an immersive listening experience.
Premium Build, Modern Aesthetic Crafted from a sleek, unibody aluminum chassis, the WiiM Vibelink Amp offers exceptional durability and peak performance. Its premium, minimalist design blends seamlessly into any audio setup, whether on a media console or in a high-end rack. Engineered with advanced thermal management, including a copper heat pipe and a large aluminum heatsink, it ensures efficient cooling and long-term reliability, even under demanding conditions.
High-Fidelity Audio with Premium Components Equipped with a premium ESS 9039Q2M DAC, TI TPA3255 amplifier chip, and six TI OPA1612 op-amps, the WiiM Vibelink Amp delivers ultra-low distortion and noise, revealing details often lost in standard amplifiers. Supporting high-resolution audio up to 192kHz/24-bit, it preserves the integrity of every recording while enhancing dynamic range for a richer, more immersive listening experience.
Post Filter Feedback Technology At the core of the WiiM Vibelink Amp's superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.
Advanced Thermal Management High-power amplification generates heat, but the WiiM Vibelink Amp stays cool under pressure with advanced thermal management: - Copper Heat Pipe - Rapidly transfers heat from key components for stable performance at any volume.- Large Aluminum Heatsink - Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling.- Precision PID Control - Real-time temperature regulation for optimal cooling and long-term reliability.
Smart, Energy-Efficient Performance The Vibelink Amp is designed with modern convenience in mind. With Auto Standby Mode, it automatically powers down after 30 or 60 minutes of inactivity, saving energy without compromising performance. The 12V Trigger In enables instant activation when connected to compatible devices, making it a smart and efficient addition to your home audio setup.
Pure Analog Input - No ADC Conversion, No Compromise Unlike many amplifiers that digitize analog signals, introducing unwanted processing and degradation, the WiiM Vibelink Amp offers a pure analog input that bypasses any Analog-to-Digital Conversion (ADC). This results in: - A direct, unaltered audio signal path for the purest analog experience- Authentic, warm sound reproduction without artificial enhancements- A true audiophile listening experience, preserving the integrity of vinyl, CD, and high-end analog sources
Bit-Perfect Music Playback - Pure High-Resolution Sound The WiiM Vibelink Amp delivers bit-perfect 192kHz/24-bit playback via Optical and Coax inputs, ensuring zero signal loss and true-to-source audio fidelity. Unlike conventional amplifiers that alter or resample audio, it preserves every detail with pristine clarity, depth, and dynamic range, making it the ultimate choice for audiophiles.
Adaptive Sample Rate &; Bit Depth - Optimized for Every Track The WiiM Vibelink Amp offers variable sample rate and bit depth selection, allowing full control over playback settings for true high-fidelity audio. Whether streaming high-resolution music, playing lossless FLAC files, or enjoying vinyl rips, the amp seamlessly adapts to the source-delivering the best possible sound quality without unwanted pops or clicks for a smooth, uninterrupted listening experience.
The Perfect Match for WiiM Streamers Seamless Integration - Designed for flawless compatibility with WiiM Mini, Pro, Pro Plus, and Ultra-just plug and play. Flexible Connectivity - Choose digital (Optical/Coaxial) or analog (RCA) inputs for maximum audio fidelity. Ultra-Low Latency - Perfectly synced playback for high-resolution streaming and immersive home theater sound. Studio-Grade Sound - Experience deep bass, crisp highs, and stunning clarity with bit-perfect precision.
Unleash the Full Power of Your WiiM Streamer! Pair your WiiM Mini, Pro, Pro Plus, or Ultra with the WiiM Vibelink Amp and experience pure, powerful, and immersive sound like never before. Elevate your high-fidelity streaming with crystal-clear detail, deep bass, and room-filling audio. Your music, perfected. Upgrade your setup today!
- Dimensions
- 7.9 x 7.9 x 2.58 inches (200 x 200 x 63 mm)
- Weight
- 2.05 kg (4.5 lbs)
- Power input
- 100-240V, 50/60Hz AC, 3A Max
- Output Power
- 100W per channel at 8O (stereo)
- Amplifier Technology
- Class-D with PFFB (Post-Filter Feedback) technology
- Total Harmonic Distortion (THD+N)
- =0.005%
- Signal-to-Noise Ratio (SNR)
- =110dB
- Frequency Response
- 20Hz - 20kHz ± 0.5dB
- Impedence Range
- 3~8 ohms
- Premium DAC
- ESS 9039Q2M high-performance DAC
- Bit-Perfect Playback
- Supports up to 192kHz/24-bit audio
- Dynamic Range
- =120dB for high-resolution sound
- Pure Analog Input
- No ADC conversion, maintaining signal integrity
- Analog Inputs
- 1x RCA Stereo (Line-In, pure analog signal path)
- Digital Inputs
- 1x Optical (TOSLINK) - Up to 192kHz/24-bit
- 1x Coaxial (S/PDIF) - Up to 192kHz/24-bit
- Speaker Outputs
- Gold-plated binding posts (supports banana plugs or bare wire connections)
- Trigger & Power Management
- 12V Trigger In: Auto power-on with compatible devices
- Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
- Supported Audio Formats
- PCM up to 192kHz/24-bit (through digital sources)
- Volume Knob
- Adjusts volume
- LED Indicator
- Three 4-color RGBW LED indicates source input and device status
- Chassis
- Premium unibody aluminum for durability & heat dissipation
- Thermal Management
- Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
- Cooling System
- Passive, silent operation
- Package Contents
- Use Guider *1
- Power Cable *1
- RCA Cable *1
- Optical Cable *1
- Banana Plugs *4
