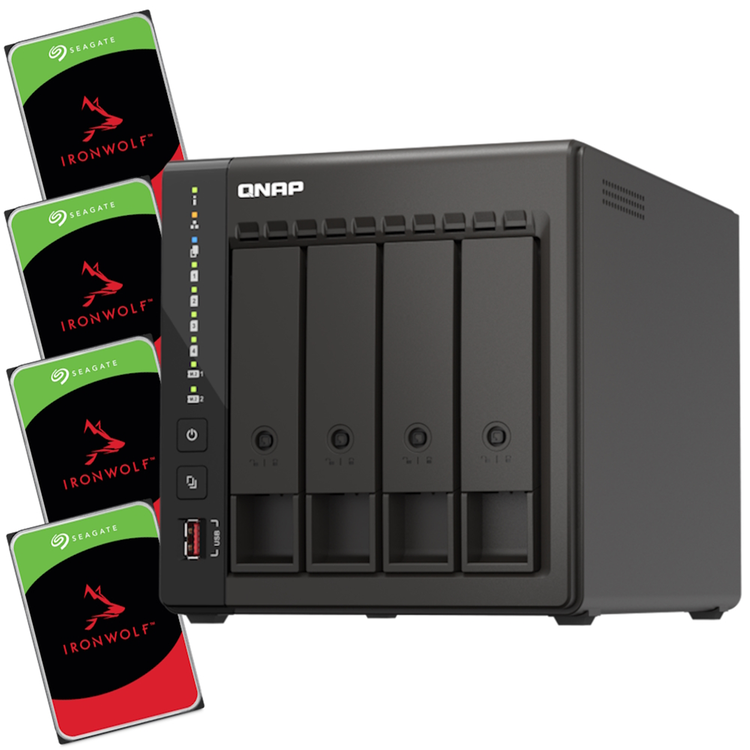

QNAP TS-453E-8G Work Group/ SOHO/ Home 4-Bay NAS Server
The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-453E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.
Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-453E will be available and supported by QNAP for an extended period, up to 2029.
Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity
Supports USB expansion enclosures
IronWolf
Seagate ST4000VN006, 5,400RPM, SATA III 6Gb/s, 3.5in, 4TB capacity, AgileArray, 256MB cache, Tough, ready, and scalable. IronWolf drives are NAS-optimized for 24x7 in NAS enclosures. Tuned with AgileArray and multi-user technology, IronWolf allows you to do more with your NAS.
IronWolf provides a workload rate of 180 TB/year with scalable 24x7 performance that can handle multi-bay NAS environments, as well as capacities up to 4 TB. It fits applications like 1- to 8-bay network attached storage (NAS).
Drive health and data recovery
When integrated into compatible NAS systems, these drives provide overall system reliability increases due to IronWolf Health Management (IHM).
QNAP TS-453E
CPU
Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® UHD Graphics
Floating Point Unit
Yes
Encryption Engine
(AES-NI)
Hardware-accelerated Transcoding
yes
System Memory
8 GB on board (non-expandable)
Maximum Memory
8GB
Flash Memory
4GB (Dual boot OS protection)
Drive Bay
4 x 3.5-inch SATA 6Gb/s
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
USB 2.0 port
2
USB 3.2 Gen 2 (10Gbps) Port
2 x Type-A
HDMI Output
2 x HDMI 1.4b ( up to 3840 x 2160 @ 30Hz )
Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-4
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD)
177 × 180 × 235 mm
Weight (Net)
3 kg
Weight (Gross)
4.3 kg
Operating Temperature
0 - 40 °C (32°F - 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit
90W adapter, 100-240V
Power Consumption: HDD Sleep Mode
15.78 W
Power Consumption: Operating Mode, Typical
33.88 W
Fan
1 x 120mm, 12VDC
System Warning
Buzzer
IronWolf
Capacity
4TB
Standard Model Number
ST4000VN006
Interface SATA
6Gb/s
Drive Bays Supported
1 -8 Bays
Recording Technology
CMR
Drive Design (Air or Helium)
Air
Workload Rate Limit (WRL)
180
Rotational Vibration (RV) Sensor
Yes
Dual-Plance Balance
Yes
Error Recovery Control
Yes
Max. Sustained Transfer Rate OD (MB/s)
202MB/s
Spindle Speed (RPM)
5,400
Cache (MB)
256
Load/Unload Cycles
600,000
Non-Recoverable Read Errors Rate
Max 1 per 10E14
Power-on Hours
8,760
Mean Time Between Failures (MTBF, hours)
1,000,000
Rescue Data Recovery Services (years)
3
Warranty, Limited (Years)
3
Start Up Current, Typical (12V,A)
1.8
Average Operating Power
4.8
Idle Power Average (W)
3.96 W
Standby Mode/Sleep Mode, Typical (W)
0.5/0.5
Voltage Tolerance, Inc. Noise (5V / 12V)
±5% / ±10%
Operating Temperature (ambient, min °C)
0
Operating Temperature (drive reported, max °C)
65
Nonoperating Temperature (ambient, min / max °C)
-40 / 70
Shock, Operating/Non-operating: 2ms (max)
80 Gs / 300 Gs
Acoustics, Idle (typical, measured in idle 1 state) (dBA)
23
Acoustics, Seek (typical) (dBA)
27
Height (mm/in)
20.2mm / 0.795in
Width (mm/in, max)
101.85 mm / 4.01in
Depth (mm/in, max)
146.99 mm/ 5.787in
Weight (g/lb, typical)
490g / 1.08lb
