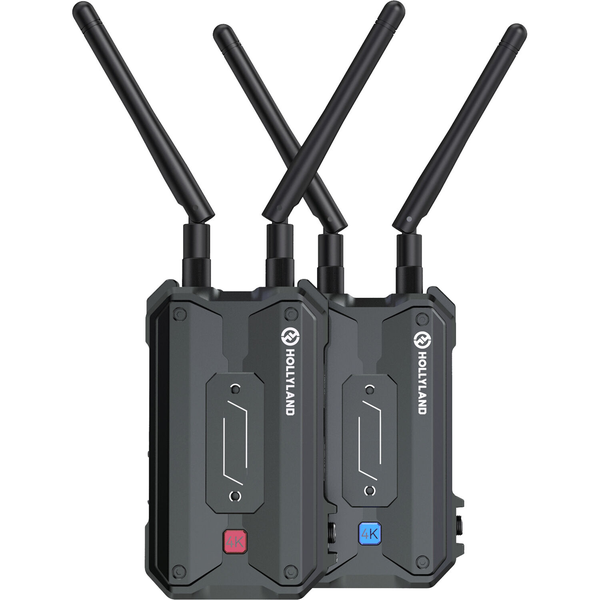

Hollyland Pyro H 4K HDMI Wireless Video Transmission (1TX+1RX)
Pyro H, your ultimate HDMI-only solution specially designed for video transmission at up to 4K/30fps, is now available on the market. With transmission over dual 2.4 GHz and 5 GHz frequency bands, this innovative kit marks Hollyland's pioneering leap into the realm of 4-receiver support, offering enhanced monitoring stability and collaboration on set. With a new level of performance in transmission range, and latency, among other things, Pyro H is to make a difference.
1 Transmitter & 4 Receivers: Offers more flexibility when additional monitoring needs emerge on set.
1,300ft (400m) LOS Range: Ultra-long-range wireless transmission capability.
0.06s Low Latency: Excels with increased transmission distance while preserving video quality and minimizing latency.
2.4GHz & 5GHz Dual Band: Provides better signal transmission performance and efficiency.
4K30 Transmission: Presents images with superior clarity, detail, and realism.
HDMI Loopout: Without compromising the quality of the transmitted signal.
UVC Streaming: Convenient for live streaming and video conferencing.
Smart Channel Scan: Chooses a high-quality frequency channel.
More Flexible.
Meet More Monitoring Needs.
Pyro H's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Broadcast Mode
Activated
When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.
Deactivated
When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.
Faster. Longer. Stronger.
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro H features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Dual Boosts.
Less Latency and More Stability.
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro H excels with increased transmission distance while preserving video quality and minimizing latency.
Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.
HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).
Dual Band
2.4GHz & 5GHz.
Pyro H offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro H, you won't have to worry about video drop issues any more.
High Definition
4K. Crisp and Sharp.
With 4k/30fps transmission capabilities, Pyro H presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.
Monitor Conveniently
HDMI Loopout.
HDMI Loopout port allows the output of signals to another display device, such as a monitor, without compromising the quality of the transmitted signal, which enables users to conveniently monitor the transmitted content, and make adjustments as necessary.
USB Video Class
UVC Streaming.
UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring capture cards or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.
Smooth Transmission
Smart Channel Scan.
Upon startup, Pyro H automatically chooses a high-quality frequency channel, optimizing user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Preset Grouping & Pairing
Easy Setup. Ready to Go.
Pyro H supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
Multiple Power Options
USB-C Charging. Continuous Power.
In addition to DC and NP-F batteries, Pyro H also supports USB-C power supply (5-12V). This power supply option proves convenient, especially when using stabilizers, as it eliminates the need for NP-F batteries, thus reducing overall weight and enhancing maneuverability.
*In Broadcast mode, USB-C charging is not supported.
*Charging cables and NP-F batteries are not included in the package.
Transmitter
Port
DC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
HDMI Loopout: HDMI 1.4b
USB-C: USB 2.0 OTG
Antenna: SMA Male
Power Supply
USB-C: 5V/2A (not supported in Broadcast mode)
Battery Voltage Range: 6.8 - 8.4V
DC Voltage Range: 6 - 16V
Power Consumption
<7W
Net Weight
192g
Dimensions
L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
Input/Output Format
HDMI
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
4K30/25/24
HDMI Loopout
720p50/60
1080i50/60
1080p24/25/30
1080p50/60
4K30/25/24
Operating Frequency
5 GHz Frequency Band
5.150 - 5.250 GHz
5.250 - 5.350 GHz
5.470 - 5.725 GHz
5.725 - 5.850 GHz
2.4 GHz Frequency Band
2.412 - 2.484 GHz
Transmit Power
< 23 dBm
Receiver Sensitivity
/
Latency
0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range
1,300ft (400m)(test data in an open, interference-free environment)
Bandwidth
20 MHz (Broadcast: 40 MHz)
Receiver
Port
DC Input: 2.0mm Core Socket
HDMI Output: HDMI 1.4b
USB-C: USB 2.0 OTG
Antenna: SMA Male
Power Supply
USB-C: 5V/2A (not supported in Broadcast mode)
Battery Voltage Range: 6.8 - 8.4V
DC Voltage Range: 6 - 16V
Power Consumption
< 4W
Net Weight
192g
Dimensions
L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
Input/Output Format
HDMI
720p50/60
1080i50/60
1080p24/25/30
1080p50/60
4K30/25/24
Operating Frequency
5 GHz Frequency Band
5.150 - 5.250 GHz
5.250 - 5.350 GHz
5.470 - 5.725 GHz
5.725 - 5.850 GHz
2.4 GHz Frequency Band
2.412 - 2.484 GHz
Transmit Power
/
Receiver Sensitivity
-85 dBm (Broadcast: -80 dBm)
Latency
0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range
1,300ft (400m)(test data in an open, interference-free environment)
Bandwidth
20 MHz (Broadcast: 40 MHz)
- Port
- DC Input: 2.0mm Core Socket
- HDMI Input: HDMI 1.4b
- HDMI Loopout: HDMI 1.4b
- USB-C: USB 2.0 OTG
- Antenna: SMA Male
- Power Supply
- USB-C: 5V/2A (not supported in Broadcast mode)
- Battery Voltage Range: 6.8 - 8.4V
- DC Voltage Range: 6 - 16V
- Power Consumption
- <7W
- Net Weight
- 192g
- Dimensions
- L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
- Input/Output Format
- HDMI
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- 4K30/25/24
- HDMI Loopout
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p50/60
- 4K30/25/24
- Operating Frequency
- 5 GHz Frequency Band
- 5.150 - 5.250 GHz
- 5.250 - 5.350 GHz
- 5.470 - 5.725 GHz
- 5.725 - 5.850 GHz
- 2.4 GHz Frequency Band
- 2.412 - 2.484 GHz
- Transmit Power
- < 23 dBm
- Receiver Sensitivity
- /
- Latency
- 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
- Range
- 1,300ft (400m)(test data in an open, interference-free environment)
- Bandwidth
- 20 MHz (Broadcast: 40 MHz)
- Port
- DC Input: 2.0mm Core Socket
- HDMI Output: HDMI 1.4b
- USB-C: USB 2.0 OTG
- Antenna: SMA Male
- Power Supply
- USB-C: 5V/2A (not supported in Broadcast mode)
- Battery Voltage Range: 6.8 - 8.4V
- DC Voltage Range: 6 - 16V
- Power Consumption
- < 4W
- Net Weight
- 192g
- Dimensions
- L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
- Input/Output Format
- HDMI
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p50/60
- 4K30/25/24
- Operating Frequency
- 5 GHz Frequency Band
- 5.150 - 5.250 GHz
- 5.250 - 5.350 GHz
- 5.470 - 5.725 GHz
- 5.725 - 5.850 GHz
- 2.4 GHz Frequency Band
- 2.412 - 2.484 GHz
- Transmit Power
- /
- Receiver Sensitivity
- -85 dBm (Broadcast: -80 dBm)
- Latency
- 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
- Range
- 1,300ft (400m)(test data in an open, interference-free environment)
- Bandwidth
- 20 MHz (Broadcast: 40 MHz)
