Description

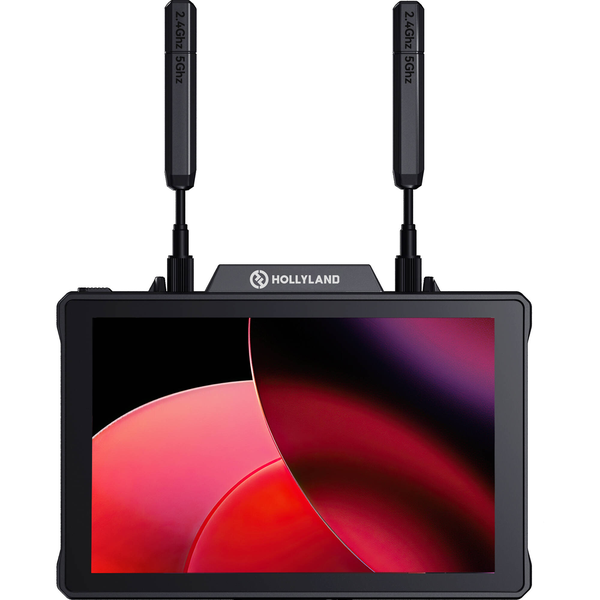

Hollyland Pyro 7 7-inch Wireless Transceiving Monitor
Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.
1TX & 4RX: Offers more flexibility when additional monitoring needs emerge on set.
1300ft (400m) & 0.06s Latency: Ultra-long range wireless transmission capability.
2.4 GHz & 5 GHz Dual Band: Provides better signal transmission performance and efficiency.
Auto Frequency Hopping: Guarantees reliable and uninterrupted wireless video transmission.
TX, RX, and Monitor - All in One: One device to meet your diverse needs
Dual-View Quick Monitoring Switch: Conveniently switch to the desired view.
7-Inch & 1500 nits: 7-inch, better monitoring experience. 1500 nits, clear and visible even in outdoor or strong lighting conditions.
Precise Image Analysis: More precise and advanced image analysis features for you.
SDI & HDMI Loopout: Satisfies the diverse requirements of different user groups.
RTMP Streaming: Convenient for live streaming and video conferencing.
More Flexible.
Meet More Monitoring Needs.
Pyro 7's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Broadcast Mode
Activated
When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.
Deactivated
When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.
See Real-time Footage
Quick Monitoring Switch
Pyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilizing two customizable buttons.
*This feature is used in the case of Broadcast mode, pre-pairing, same video resolution, and same mode (Smooth or HD mode).
Faster. Longer. Stronger.
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Dual Boosts.
Less Latency and More Stability.
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.
HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m) .
Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.
Auto Dual-Band Hopping
With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.
\
Dual Band - 2.4 GHz & 5 GHz.
Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won't have to worry about video drop issues any more.
Auto Frequency Hopping
Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Precise Image Analysis, Enhanced Your Experience
Pyro 7 offers a convenient custom shortcut key feature that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist and other image analysis functions.
Expanding Functionality Enhanced Features
Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 enables efficient export and organization of available videos into specific folders, catering to your needs for streamlined editing workflow.
*It also supports importing external devices or taking on-set screenshots, overlaying them with the current recording screen for scene restoration or replication purposes.
See Every Detail Clearly
The 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1500 nits, whether indoors or outdoors, in bright sunlight or dim environments, you can adjust the screen brightness for optimal visual performance.
* The iPad and iPhone shown for size reference are not included in the Pyro 7 package.
Note: Pyro 7 will undergo upgrades in brightness and weight from January 2025.
Interference-free
Smart Channel Scan.
Upon startup, Pyro 7 automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the device to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Preset Grouping & Pairing
Easy Setup. Ready to Go.
Pyro 7 supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
Real-Time Messaging Protocol
RTMP Streaming
With the HollyView App and the power of RTMP (Real-Time Messaging Protocol), just input your wireless key and connect 4G LTE Wi-Fi Modem to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro 7 will offer you a convenient live streaming experience.
Magnesium Aluminum
Lighter, Stronger, Stiffer
The shell of Pyro 7 is made of aerospace-grade magnesium-aluminum alloy, which is more robust, rigid, 30% lighter, and better at heat dissipation than aluminum-only models.
Input Port
HDMI 1.4b + 3G SDI
Output Port
HDMI 1.4b + 3G SDI
Antenna
RP-SMA Male*2
Power Input
DC Input (2.0mm core socket)
Headphone Jack
3.5mm
Upgrade Port
USB-C (USB 2.0 OTG)
SD Card Slot
Screen Size
7" Touchscreen
Screen Resolution
1920 × 1200 pixels
Pixel Density
323 PPI
Aspect Ratio
16:9
Screen Brightness
1500 nits
Contrast Ratio
1000:1
Power Input Voltage
10 - 18V @ 2.5A DC Input (nominal 12V)
Power Consumption
< 22W
Net Weight
˜ 570g (20.1oz)
with battery plate included and external antennas excluded
Dimensions (L × W × H)
180 × 127 × 31.8mm (7.1" × 5" × 1.25")
with battery plate and external antennas excluded
Operating Frequency
5.1 - 5.8 GHz; 2.412 - 2.484 GHz
Transmit Power
= 23 dBm
Receiver Sensitivity
-80 dBm
Display Latency
< 50ms
Transmission Latency
˜ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
LOS Range
1,300ft (400m)* (Connection to the monitoring app may affect the range);
650ft (200m)* (in Broadcast mode)
Bandwidth
20 MHz; 40 MHz (in Broadcast mode)
Audio Format
HDMI 1.4b 8-Channel
Operating Temperature
- 10? - 45?
Storage Temperature
- 40? - 60?
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
HDMI Loopout
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
SDI Loopout
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30
HDMI/SDI Output
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30
SDI Input
1080p50/59.94/60 (Level A)
1080p50/59.94/60 (Level B)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080psf25/29.97/30
720p50/59.94/60
HDMI/SDI Loopout
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
HDMI/SDI Output
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
Note
Due to differences in various countries and regions, there may be variations in the operating frequency bands and wireless transmit power of the product. For details, please refer to local laws and regulations.
Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.
1TX & 4RX: Offers more flexibility when additional monitoring needs emerge on set.
1300ft (400m) & 0.06s Latency: Ultra-long range wireless transmission capability.
2.4 GHz & 5 GHz Dual Band: Provides better signal transmission performance and efficiency.
Auto Frequency Hopping: Guarantees reliable and uninterrupted wireless video transmission.
TX, RX, and Monitor - All in One: One device to meet your diverse needs
Dual-View Quick Monitoring Switch: Conveniently switch to the desired view.
7-Inch & 1500 nits: 7-inch, better monitoring experience. 1500 nits, clear and visible even in outdoor or strong lighting conditions.
Precise Image Analysis: More precise and advanced image analysis features for you.
SDI & HDMI Loopout: Satisfies the diverse requirements of different user groups.
RTMP Streaming: Convenient for live streaming and video conferencing.
More Flexible.
Meet More Monitoring Needs.
Pyro 7's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Broadcast Mode
Activated
When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.
Deactivated
When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.
See Real-time Footage
Quick Monitoring Switch
Pyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilizing two customizable buttons.
*This feature is used in the case of Broadcast mode, pre-pairing, same video resolution, and same mode (Smooth or HD mode).
Faster. Longer. Stronger.
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Dual Boosts.
Less Latency and More Stability.
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.
HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m) .
Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.
Auto Dual-Band Hopping
With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.
\
Dual Band - 2.4 GHz & 5 GHz.
Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won't have to worry about video drop issues any more.
Auto Frequency Hopping
Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Precise Image Analysis, Enhanced Your Experience
Pyro 7 offers a convenient custom shortcut key feature that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist and other image analysis functions.
Expanding Functionality Enhanced Features
Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 enables efficient export and organization of available videos into specific folders, catering to your needs for streamlined editing workflow.
*It also supports importing external devices or taking on-set screenshots, overlaying them with the current recording screen for scene restoration or replication purposes.
See Every Detail Clearly
The 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1500 nits, whether indoors or outdoors, in bright sunlight or dim environments, you can adjust the screen brightness for optimal visual performance.
* The iPad and iPhone shown for size reference are not included in the Pyro 7 package.
Note: Pyro 7 will undergo upgrades in brightness and weight from January 2025.
Interference-free
Smart Channel Scan.
Upon startup, Pyro 7 automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the device to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Preset Grouping & Pairing
Easy Setup. Ready to Go.
Pyro 7 supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
Real-Time Messaging Protocol
RTMP Streaming
With the HollyView App and the power of RTMP (Real-Time Messaging Protocol), just input your wireless key and connect 4G LTE Wi-Fi Modem to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro 7 will offer you a convenient live streaming experience.
Magnesium Aluminum
Lighter, Stronger, Stiffer
The shell of Pyro 7 is made of aerospace-grade magnesium-aluminum alloy, which is more robust, rigid, 30% lighter, and better at heat dissipation than aluminum-only models.
Input Port
HDMI 1.4b + 3G SDI
Output Port
HDMI 1.4b + 3G SDI
Antenna
RP-SMA Male*2
Power Input
DC Input (2.0mm core socket)
Headphone Jack
3.5mm
Upgrade Port
USB-C (USB 2.0 OTG)
SD Card Slot
Screen Size
7" Touchscreen
Screen Resolution
1920 × 1200 pixels
Pixel Density
323 PPI
Aspect Ratio
16:9
Screen Brightness
1500 nits
Contrast Ratio
1000:1
Power Input Voltage
10 - 18V @ 2.5A DC Input (nominal 12V)
Power Consumption
< 22W
Net Weight
˜ 570g (20.1oz)
with battery plate included and external antennas excluded
Dimensions (L × W × H)
180 × 127 × 31.8mm (7.1" × 5" × 1.25")
with battery plate and external antennas excluded
Operating Frequency
5.1 - 5.8 GHz; 2.412 - 2.484 GHz
Transmit Power
= 23 dBm
Receiver Sensitivity
-80 dBm
Display Latency
< 50ms
Transmission Latency
˜ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
LOS Range
1,300ft (400m)* (Connection to the monitoring app may affect the range);
650ft (200m)* (in Broadcast mode)
Bandwidth
20 MHz; 40 MHz (in Broadcast mode)
Audio Format
HDMI 1.4b 8-Channel
Operating Temperature
- 10? - 45?
Storage Temperature
- 40? - 60?
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
HDMI Loopout
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 23.98/24/25/29.97/30
SDI Loopout
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30
HDMI/SDI Output
720p50/60
1080i50/60
1080p24/25/30
1080p 50/60
1920*1080 24/25/30
SDI Input
1080p50/59.94/60 (Level A)
1080p50/59.94/60 (Level B)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080psf25/29.97/30
720p50/59.94/60
HDMI/SDI Loopout
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
HDMI/SDI Output
1080p50/59.94/60 (Level A)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p23.98/24
1080i50/59.94/60
720p50/59.94/60
Note
Due to differences in various countries and regions, there may be variations in the operating frequency bands and wireless transmit power of the product. For details, please refer to local laws and regulations.
Specifications
- Input Port
- HDMI 1.4b + 3G SDI
- Output Port
- HDMI 1.4b + 3G SDI
- Antenna
- RP-SMA Male*2
- Power Input
- DC Input (2.0mm core socket)
- Headphone Jack
- 3.5mm
- Upgrade Port
- USB-C (USB 2.0 OTG)
- SD Card Slot
- Screen Size
- 7" Touchscreen
- Screen Resolution
- 1920 × 1200 pixels
- Pixel Density
- 323 PPI
- Aspect Ratio
- 16:9
- Screen Brightness
- 1500 nits
- Contrast Ratio
- 1000:1
- Power Input Voltage
- 10 - 18V @ 2.5A DC Input (nominal 12V)
- Power Consumption
- < 22W
- Net Weight
- ˜ 570g (20.1oz)
- with battery plate included and external antennas excluded
- Dimensions (L × W × H)
- 180 × 127 × 31.8mm (7.1" × 5" × 1.25")
- with battery plate and external antennas excluded
- Operating Frequency
- 5.1 - 5.8 GHz; 2.412 - 2.484 GHz
- Transmit Power
- = 23 dBm
- Receiver Sensitivity
- -80 dBm
- Display Latency
- < 50ms
- Transmission Latency
- ˜ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
- LOS Range
- 1,300ft (400m)* (Connection to the monitoring app may affect the range);
- 650ft (200m)* (in Broadcast mode)
- Bandwidth
- 20 MHz; 40 MHz (in Broadcast mode)
- Audio Format
- HDMI 1.4b 8-Channel
- Operating Temperature
- - 10? - 45?
- Storage Temperature
- - 40? - 60?
- HDMI Input
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- 3840*2160 23.98/24/25/29.97/30
- HDMI Loopout
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- 3840*2160 23.98/24/25/29.97/30
- SDI Loopout
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p 50/60
- 1920*1080 24/25/30
- HDMI/SDI Output
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p 50/60
- 1920*1080 24/25/30
- SDI Input
- 1080p50/59.94/60 (Level A)
- 1080p50/59.94/60 (Level B)
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080psf23.98/24
- 1080psf25/29.97/30
- 720p50/59.94/60
- HDMI/SDI Loopout
- 1080p50/59.94/60 (Level A)
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p23.98/24
- 1080i50/59.94/60
- 720p50/59.94/60
- HDMI/SDI Output
- 1080p50/59.94/60 (Level A)
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p23.98/24
- 1080i50/59.94/60
- 720p50/59.94/60
- Note
- Due to differences in various countries and regions, there may be variations in the operating frequency bands and wireless transmit power of the product. For details, please refer to local laws and regulations.
Allowances
As an international traveller you are entitled to bring a certain amount/value of goods that are free of Customs duty and exempt Goods and Services tax (GST) into New Zealand. This is called your duty free allowance and personal goods concession. It is important to review these for any purchases you make on The Mall.
Your duty free allowance entitles you to bring into New Zealand the following quantities of alcohol products free of customs duty and GST provided you are over 17 years of age. You do need to be 18 years or over to purchase.
- Up to six bottles (4.5 litres) of wine, champagne, port or sherry or
- Up to twelve cans (4.5 litres) of beer
- And three bottles (or other containers) each containing not more than 1125ml of spirits, liqueur, or other spirituous beverages
Goods other than alcohol and tobacco, whether purchased overseas or purchased duty free in New Zealand, that have a combined total value not exceeding NZ$700 may also be brought as part of your personal goods concession.
When travelling overseas there are legal limits on the amount of duty free alcohol and other goods you can take with you. These amounts will vary depending on the country you are flying into. We always recommend you check the latest limits and exemptions.
Click & Collect
Your order can be picked up at an Auckland Airport Collection Point. There is one in departures and one at arrivals in the international terminal. Alternatively, if you are arriving between 11pm and 6am you will be able to collect your order from our lockers. See map
Please bring your order confirmation email and your passport. If you are collecting from lockers you will have been sent an email with your access code, be sure to have this on you in order to collect your order.
If you’re departing Auckland Airport, we recommend that you come to the Auckland Airport Collection Point at least 60 minutes before your flight. If you miss your pickup time or your flight details have changed please let us know as soon as possible.
When you collect your order you will have the opportunity to inspect the items and sign for them.
If you need to return an item, our Collection Point team are there to help you. If you are collecting after hours please return the item to your locker and our team will be in touch as soon as possible. You may also like to view our Returns & refunds which provides information on how this works and outlines the individual retailer's returns and refunds policies.
After Hours Collections
If your order needs to be collected after the Auckland Airport Collection Point desk is closed, your order will be placed in the lockers next to the desk. All the details you will need to collect your order will be provided in your Order Confirmation and Ready to Collect Email.
