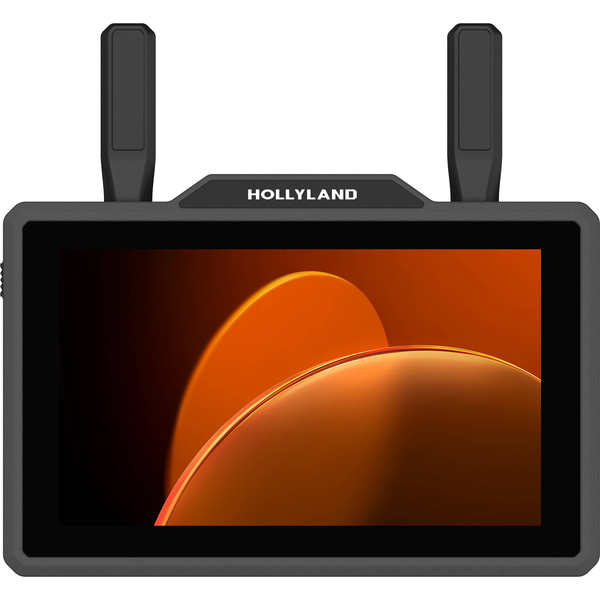

Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance. With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool. Proxy recording and RTMP live streaming make Pyro 5 more than just a monitor—it's your multi-tasking hub on set, built to simplify and speed up every step of production.
WifiBroadcast Technology - Shoot. Sync. Share.
Pyro 5 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Broadcast Mode
In Broadcast Mode, one transmitter connects to up to four receivers with camera views switching and auto frequency hopping. Ideal for multi-cam setups, it delivers stable performance at up to 200m line-of-sight or 100m back-to-back.
Activated
Deactivated
Dual-Band Stronger Signal. Smoother Feeds.
Built with a dual-band 2.4G/5G transmission system, Pyro 5 automatically adapts to changing environments—delivering robust, interference-resistant video even in signal-heavy locations.
Direct Camera Control. Just a Tap Away.
With the 5.5-inch touchscreen, Pyro 5 enables direct adjustments to shutter speed, aperture, focus, focus mode, white balance, and ISO, offering dynamic control over your camera's settings.
ISO
IRIS
SHUTTER
WB
Focus Mode
More Than a Monitor. Efficient Proxy Recording.
Proxy files can be recorded directly to an SD card while monitoring in real-time. Automatically organized into folders, proxy files are ready to review or cut. The Proxy files now include timecode, perfectly synced with your camera for easier, more accurate editing.
Multi-Cam Switching.
Pyro 5 supports switching between camera groups, keeping up with fast-paced live productions.
Lock Pairing.
When multiple Pyro systems are in use, Lock Pairing ensures each receiver stays securely connected to its original transmitter—no signal mix-ups.
Shoot Bright. See Brighter.
The 1500-nit screen stays bright and readable, even in the most challenging outdoor lighting.
Auto Frequency Hopping
Pyro 5 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Smart Channel Selection
At startup, the system automatically scans and locks onto the optimal frequency channel. Channels can also be manually scanned and switched via the receiver, with visual signal strength indicators for each frequency.
Image Flow.
Choose between high-fidelity visuals or ultra-low latency—whichever suits your shoot best.
HD Mode
Delivers stunning clarity with a 12 Mbps bitrate and a minimum latency of 75ms. Ideal for critical image monitoring.
Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.
*All performance figures are from Hollyland laboratory tests and may vary with real-world conditions
Precision Meets Ease Image Analysis.
Advanced image analysis tools—now more accurate, more user-friendly, and made for fast decision-making on set.
Waveform
Focus Assist
Zebra Pattern
False Clolor
3D LUT
Pyro 5 comes with 5 built-in LUTs and supports custom LUT import.
Built to Feel Good. Made to Last.
A dual-injection shell keeps the device light in hand and strong enough to handle the roughest shoots. The Easy-install antennas make setup, transport, and storage faster and easier than ever. Every detail is designed for the field—from the rugged build to the streamlined setup.
Go Live, Anywhere. - RTMP Streaming
Stream directly to Zoom, YouTube Live, TikTok, and more with the HollyView App and RTMP support. Just connect a 4G LTE Wi-Fi modem, enter your stream key, and you're live—no extra setup needed.
Input Port
Transmitter Mode: HDMI 1.4b + 3G SDI
Receiver Mode: /
Output Port
Transmitter Mode: Loop-Out HDMI 1.4b
Receiver Mode: HDMI 1.4b
Audio-Video Parameters
Transmitter Mode: Color Depth Capability
Transmitter Mode: Input Audio Format
Transmitter Mode: Output Audio Format
Receiver Mode: HDMI Input: YUV422/YUV444 8BIT
Receiver Mode: HDMI 1.4b 8-Channel
Antenna
SMA Male
Power Input
DC Input (2.0mm core socket)
Headphone Jack
3.5mm
Upgrade Port
USB-C (USB 2.0 OTG) / SD Card Slot
Screen Size
5.5" Touchscreen
Screen Resolution
1920*1080 Pixels
Color Gamut
Rec.709
Aspect Ratio
16: 9
Screen Brightness
1,500 nits
Contrast Ratio
1000:1
Power Input Voltage
NPF: 6V~16V
DC-in: 10-18V DC
Video Processing Technology
Transmitter Mode: Video Bitrate
Transmitter Mode: Video Encoding Format
Receiver Mode: Maximum 12 Mbps
Receiver Mode: H.264
Power Consumption
Transmitter Mode <16.5W
Receiver Mode <14W
Net Weight
˜ 410g (14.5oz)
Dimensions
(L×W×H): 151.6×102.3×40.5mm
Operating Frequency
5.150-5.250GHz
2.412~2.484GHz
5.250-5.350GHz
5.470-5.600GHz
5.600-5.725GHz
5.725-5.850GHz
Transmit Power
Transmitter Mode: < 23dBm
Receiver Sensitivity
Receiver Mode: Unicast: -85dBm; Broadcast: -80dBm
Transmission Latency
˜60ms (Tested in a laboratory environment with 1080P60 signal transmission)
Bandwidth
Unicast: 20 MHz Broadcast: 40 MHz
Operating Temperature
– 10? – 45?
Storage Temperature
– 40°C – 45°C
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
HDMI Loopout/Output
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
SDI Input
1080p50/59.94/60 (Level A)
1080p50/59.94/60 (Level B)
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080psf23.98/24
1080psf25/29.97/30
720p50/59.94/60
- Input Port
- Transmitter Mode: HDMI 1.4b + 3G SDI
- Receiver Mode: /
- Output Port
- Transmitter Mode: Loop-Out HDMI 1.4b
- Receiver Mode: HDMI 1.4b
- Antenna
- SMA Male
- Power Input
- DC Input (2.0mm core socket)
- Headphone Jack
- 3.5mm
- Upgrade Port
- USB-C (USB 2.0 OTG) / SD Card Slot
- Screen Size
- 5.5" Touchscreen
- Screen Resolution
- 1920*1080 Pixels
- Color Gamut
- Rec.709
- Aspect Ratio
- 16: 9
- Screen Brightness
- 1,500 nits
- Contrast Ratio
- 1000:1
- Power Input Voltage
- NPF: 6V~16V
- DC-in: 10-18V DC
- Video Processing Technology
- Transmitter Mode: Video Bitrate
- Transmitter Mode: Video Encoding Format
- Receiver Mode: Maximum 12 Mbps
- Receiver Mode: H.264
- Power Consumption
- Transmitter Mode <16.5W
- Receiver Mode <14W
- Net Weight
- ˜ 410g (14.5oz)
- Dimensions
- (L×W×H): 151.6×102.3×40.5mm
- Operating Frequency
- 5.150-5.250GHz
- 2.412~2.484GHz
- 5.250-5.350GHz
- 5.470-5.600GHz
- 5.600-5.725GHz
- 5.725-5.850GHz
- Transmit Power
- Transmitter Mode: < 23dBm
- Receiver Sensitivity
- Receiver Mode: Unicast: -85dBm; Broadcast: -80dBm
- Transmission Latency
- ˜60ms (Tested in a laboratory environment with 1080P60 signal transmission)
- Bandwidth
- Unicast: 20 MHz Broadcast: 40 MHz
- Operating Temperature
- - 10? - 45?
- Storage Temperature
- - 40°C - 45°C
- HDMI Input
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- HDMI Loopout/Output
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- SDI Input
- 1080p50/59.94/60 (Level A)
- 1080p50/59.94/60 (Level B)
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080psf23.98/24
- 1080psf25/29.97/30
- 720p50/59.94/60
