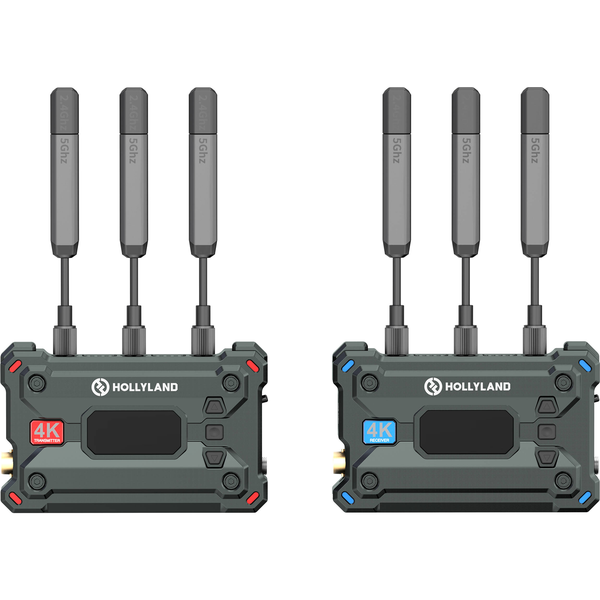

Hollyland Pyro S 4K HDMI & SDI Wireless Video Transmission (1TX+1RX)
View all HollylandSold by PB Tech
Description
Hollyland Pyro S 4K HDMI & SDI Wireless Video Transmission (1TX+1RX)
Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S’s magnesium alloy shell makes it easier to carry and handle. It’s ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.
1 Transmitter & 4 Receivers: Offers more flexibility when additional monitoring needs emerge on set.
1,300ft (400m) LOS Range: Ultra-long-range wireless transmission capability.
0.05s Low Latency: Excels with increased transmission distance while preserving video quality and minimizing latency.
2.4GHz & 5GHz Dual Band: Provides better signal transmission performance and efficiency.
Auto Frequency Hopping: Guarantees reliable and uninterrupted wireless video transmission.
HDMI & SDI: Supports both HDMI and SDI ports for maximum compatibility.
Multiple Power Supply Options: Offers versatility, reliability, and convenience.
UVC & RTMP Streaming: Suitable for streaming live content from local sites to global audiences.
4K30 Transmission: Presents images with superior clarity, detail, and realism.
Ready Out of the Box: Preset grouping eliminates the need for tedious setup.
More Flexible. Meet More Monitoring Needs.
Pyro S’s WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Broadcast Mode
Activated
When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.
Deactivated
When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.
Faster. Longer. Stronger.
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro S features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 50ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Dual Boosts. Less Latency and More Stability.
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.
Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 50ms latency for ultra-long-distance transmission.
HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).
Auto Dual-Band Hopping
With our developed Auto Dual-Band Hopping (ADH) technology, Pyro S operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.
Dual Band - 2.4GHz & 5GHz.
Pyro S offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro S, you won’t have to worry about video drop issues any more.
Auto Frequency Hopping
Pyro S is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Seamless Connectivity - Both HDMI & SDI Input/Output.
Pyro S is the perfect solution for professional shooting and commercial projects. The transmitter features one HDMI input and one SDI input, while the receiver provides one SDI output and one HDMI output.
High Definition - 4K. Crisp and Sharp.
With 4k/30fps transmission capabilities, Pyro S presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.
Effortless Streaming - The Real-Time Shooting Scenes
USB Video Class.
UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring capture cards or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.
RTMP Streaming
With RTMP (Real-Time Messaging Protocol), just input your wireless key and connect your USB Wi-Fi dongle to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro S will offer you a straightforward and convenient live streaming experience.
* Some network card models may not be compatible.
Smooth Transmission
Smart Channel Scan.
Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Preset Grouping & Pairing
Easy Setup. Ready to Go.
Pyro S supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
Magnesium Alloy Shell
Lighter. Stronger. Stiffer.
The shell of Pyro S is made of aerospace-grade magnesium-aluminum alloy, which is more robust, rigid, 30% lighter, and better at heat dissipation than aluminum-only models.
Fan Control
Efficient Cooling System.
Pyro S offers a two-speed fan adjustment. The cooling system helps to regulate device temperature, preventing overheating and ensuring stable signal transmission.
Auto Mode
The device automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation.
Low-Speed Mode
The fan operates at the lowest speed, reducing noise generation. This mode is suitable for environments where low noise levels are required.
Full Color
LCD Display.
The LCD display on both units offers vibrant, vivid colors and an easy-to-read interface. With it, you can monitor the status and setting information, including battery level, current group, transmission resolution, frame rate, current channel, and more.
Say Goodbye to Low Battery Anxiety
Multiple Power Supply Options.
Each unit can support power input from an NP-F battery or a DC power source. The Pyro S does not include an NP-F battery, which can be purchased separately.
Transmitter
Port
DC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
SDI Input: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male
Power Supply
Battery Voltage Range: 6.8 – 8.4V
DC Voltage Range: 6 – 16V
Power Consumption
< 11W
Net Weight
207g
Dimensions
L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
Input/Output Format
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 30/25/24/29.97/23.98
SDI Input
1080p60/59.94/50
1080i60/59.94/50
1080p30/29.97/25/24/23.98
720p60/59.94/50
1080psf23.98/24
1080psf25/29.97/30
Operating Frequency
5 GHz Frequency Band
5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4 GHz Frequency Band
2.412 – 2.484 GHz
Transmit Power
< 23 dBm
Receiver Sensitivity
/
Latency
as low as 50ms
Bandwidth
20 MHz
(Broadcast: 40 MHz)
Temperature
-10 – 45? (working)
-40 – 60? (storage)
Receiver
Port
DC Input: 2.0mm Core Socket
HDMI Output: HDMI 1.4b
SDI Output: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male
Power Supply
Battery Voltage Range: 6.8 – 8.4V
DC Voltage Range: 6 – 16V
Power Consumption
< 8W
Net Weight
207g
Dimensions
L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
Input/Output Format
HDMI Output
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 30/25/24/29.97/23.98
SDI Output
1080p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
720p50/59.94/60
1080p23.98/24
1080i50/59.94/60
Operating Frequency
5 GHz Frequency Band
5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4 GHz Frequency Band
2.412 – 2.484 GHz
Transmit Power
/
Receiver Sensitivity
-85 dBm (Broadcast: -80 dBm)
Latency
as low as 50ms
Bandwidth
20 MHz
(Broadcast: 40 MHz)
Temperature
-10 – 45? (working)
-40 – 60? (storage)
Note
Note
Due to differences in various countries and regions, there may be variations in the operating frequency bands and wireless transmit power of the product. For details, please refer to local laws and regulations.
Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S’s magnesium alloy shell makes it easier to carry and handle. It’s ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.
1 Transmitter & 4 Receivers: Offers more flexibility when additional monitoring needs emerge on set.
1,300ft (400m) LOS Range: Ultra-long-range wireless transmission capability.
0.05s Low Latency: Excels with increased transmission distance while preserving video quality and minimizing latency.
2.4GHz & 5GHz Dual Band: Provides better signal transmission performance and efficiency.
Auto Frequency Hopping: Guarantees reliable and uninterrupted wireless video transmission.
HDMI & SDI: Supports both HDMI and SDI ports for maximum compatibility.
Multiple Power Supply Options: Offers versatility, reliability, and convenience.
UVC & RTMP Streaming: Suitable for streaming live content from local sites to global audiences.
4K30 Transmission: Presents images with superior clarity, detail, and realism.
Ready Out of the Box: Preset grouping eliminates the need for tedious setup.
More Flexible. Meet More Monitoring Needs.
Pyro S’s WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Broadcast Mode
Activated
When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.
Deactivated
When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.
Faster. Longer. Stronger.
With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro S features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 50ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Dual Boosts. Less Latency and More Stability.
Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.
Smooth Mode
The bitrate dynamically adjusts in this mode to achieve the lowest 50ms latency for ultra-long-distance transmission.
HD Mode
Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).
Auto Dual-Band Hopping
With our developed Auto Dual-Band Hopping (ADH) technology, Pyro S operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.
Dual Band - 2.4GHz & 5GHz.
Pyro S offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro S, you won’t have to worry about video drop issues any more.
Auto Frequency Hopping
Pyro S is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Seamless Connectivity - Both HDMI & SDI Input/Output.
Pyro S is the perfect solution for professional shooting and commercial projects. The transmitter features one HDMI input and one SDI input, while the receiver provides one SDI output and one HDMI output.
High Definition - 4K. Crisp and Sharp.
With 4k/30fps transmission capabilities, Pyro S presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.
Effortless Streaming - The Real-Time Shooting Scenes
USB Video Class.
UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring capture cards or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.
RTMP Streaming
With RTMP (Real-Time Messaging Protocol), just input your wireless key and connect your USB Wi-Fi dongle to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro S will offer you a straightforward and convenient live streaming experience.
* Some network card models may not be compatible.
Smooth Transmission
Smart Channel Scan.
Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Preset Grouping & Pairing
Easy Setup. Ready to Go.
Pyro S supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
Magnesium Alloy Shell
Lighter. Stronger. Stiffer.
The shell of Pyro S is made of aerospace-grade magnesium-aluminum alloy, which is more robust, rigid, 30% lighter, and better at heat dissipation than aluminum-only models.
Fan Control
Efficient Cooling System.
Pyro S offers a two-speed fan adjustment. The cooling system helps to regulate device temperature, preventing overheating and ensuring stable signal transmission.
Auto Mode
The device automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation.
Low-Speed Mode
The fan operates at the lowest speed, reducing noise generation. This mode is suitable for environments where low noise levels are required.
Full Color
LCD Display.
The LCD display on both units offers vibrant, vivid colors and an easy-to-read interface. With it, you can monitor the status and setting information, including battery level, current group, transmission resolution, frame rate, current channel, and more.
Say Goodbye to Low Battery Anxiety
Multiple Power Supply Options.
Each unit can support power input from an NP-F battery or a DC power source. The Pyro S does not include an NP-F battery, which can be purchased separately.
Transmitter
Port
DC Input: 2.0mm Core Socket
HDMI Input: HDMI 1.4b
SDI Input: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male
Power Supply
Battery Voltage Range: 6.8 – 8.4V
DC Voltage Range: 6 – 16V
Power Consumption
< 11W
Net Weight
207g
Dimensions
L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
Input/Output Format
HDMI Input
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 30/25/24/29.97/23.98
SDI Input
1080p60/59.94/50
1080i60/59.94/50
1080p30/29.97/25/24/23.98
720p60/59.94/50
1080psf23.98/24
1080psf25/29.97/30
Operating Frequency
5 GHz Frequency Band
5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4 GHz Frequency Band
2.412 – 2.484 GHz
Transmit Power
< 23 dBm
Receiver Sensitivity
/
Latency
as low as 50ms
Bandwidth
20 MHz
(Broadcast: 40 MHz)
Temperature
-10 – 45? (working)
-40 – 60? (storage)
Receiver
Port
DC Input: 2.0mm Core Socket
HDMI Output: HDMI 1.4b
SDI Output: 3G SDI
USB-C: USB 2.0 OTG
Antenna: SMA Male
Power Supply
Battery Voltage Range: 6.8 – 8.4V
DC Voltage Range: 6 – 16V
Power Consumption
< 8W
Net Weight
207g
Dimensions
L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
Input/Output Format
HDMI Output
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
3840*2160 30/25/24/29.97/23.98
SDI Output
1080p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
720p50/59.94/60
1080p23.98/24
1080i50/59.94/60
Operating Frequency
5 GHz Frequency Band
5.150 – 5.250 GHz
5.250 – 5.350 GHz
5.470 – 5.725 GHz
5.725 – 5.850 GHz
2.4 GHz Frequency Band
2.412 – 2.484 GHz
Transmit Power
/
Receiver Sensitivity
-85 dBm (Broadcast: -80 dBm)
Latency
as low as 50ms
Bandwidth
20 MHz
(Broadcast: 40 MHz)
Temperature
-10 – 45? (working)
-40 – 60? (storage)
Note
Note
Due to differences in various countries and regions, there may be variations in the operating frequency bands and wireless transmit power of the product. For details, please refer to local laws and regulations.
Specifications
- Port
- DC Input: 2.0mm Core Socket
- HDMI Input: HDMI 1.4b
- SDI Input: 3G SDI
- USB-C: USB 2.0 OTG
- Antenna: SMA Male
- Power Supply
- Battery Voltage Range: 6.8 - 8.4V
- DC Voltage Range: 6 - 16V
- Power Consumption
- < 11W
- Net Weight
- 207g
- Dimensions
- L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
- Input/Output Format
- HDMI Input
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- 3840*2160 30/25/24/29.97/23.98
- SDI Input
- 1080p60/59.94/50
- 1080i60/59.94/50
- 1080p30/29.97/25/24/23.98
- 720p60/59.94/50
- 1080psf23.98/24
- 1080psf25/29.97/30
- Operating Frequency
- 5 GHz Frequency Band
- 5.150 - 5.250 GHz
- 5.250 - 5.350 GHz
- 5.470 - 5.725 GHz
- 5.725 - 5.850 GHz
- 2.4 GHz Frequency Band
- 2.412 - 2.484 GHz
- Transmit Power
- < 23 dBm
- Receiver Sensitivity
- /
- Latency
- as low as 50ms
- Bandwidth
- 20 MHz
- (Broadcast: 40 MHz)
- Temperature
- -10 - 45? (working)
- -40 - 60? (storage)
- Port
- DC Input: 2.0mm Core Socket
- HDMI Output: HDMI 1.4b
- SDI Output: 3G SDI
- USB-C: USB 2.0 OTG
- Antenna: SMA Male
- Power Supply
- Battery Voltage Range: 6.8 - 8.4V
- DC Voltage Range: 6 - 16V
- Power Consumption
- < 8W
- Net Weight
- 207g
- Dimensions
- L × W × H: 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
- Input/Output Format
- HDMI Output
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 1080p50/59.94/60
- 3840*2160 30/25/24/29.97/23.98
- SDI Output
- 1080p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.97/30
- 720p50/59.94/60
- 1080p23.98/24
- 1080i50/59.94/60
- Operating Frequency
- 5 GHz Frequency Band
- 5.150 - 5.250 GHz
- 5.250 - 5.350 GHz
- 5.470 - 5.725 GHz
- 5.725 - 5.850 GHz
- 2.4 GHz Frequency Band
- 2.412 - 2.484 GHz
- Transmit Power
- /
- Receiver Sensitivity
- -85 dBm (Broadcast: -80 dBm)
- Latency
- as low as 50ms
- Bandwidth
- 20 MHz
- (Broadcast: 40 MHz)
- Temperature
- -10 - 45? (working)
- -40 - 60? (storage)
- Note
- Due to differences in various countries and regions, there may be variations in the operating frequency bands and wireless transmit power of the product. For details, please refer to local laws and regulations.
Allowances
As an international traveller you are entitled to bring a certain amount/value of goods that are free of Customs duty and exempt Goods and Services tax (GST) into New Zealand. This is called your duty free allowance and personal goods concession. It is important to review these for any purchases you make on The Mall.
Your duty free allowance entitles you to bring into New Zealand the following quantities of alcohol products free of customs duty and GST provided you are over 17 years of age. You do need to be 18 years or over to purchase.
- Up to six bottles (4.5 litres) of wine, champagne, port or sherry or
- Up to twelve cans (4.5 litres) of beer
- And three bottles (or other containers) each containing not more than 1125ml of spirits, liqueur, or other spirituous beverages
Goods other than alcohol and tobacco, whether purchased overseas or purchased duty free in New Zealand, that have a combined total value not exceeding NZ$700 may also be brought as part of your personal goods concession.
When travelling overseas there are legal limits on the amount of duty free alcohol and other goods you can take with you. These amounts will vary depending on the country you are flying into. We always recommend you check the latest limits and exemptions.
Click & Collect
Your order can be picked up at an Auckland Airport Collection Point. There is one in departures and one at arrivals in the international terminal. Alternatively, if you are arriving between 11pm and 6am you will be able to collect your order from our lockers. See map
Please bring your order confirmation email and your passport. If you are collecting from lockers you will have been sent an email with your access code, be sure to have this on you in order to collect your order.
If you’re departing Auckland Airport, we recommend that you come to the Auckland Airport Collection Point at least 60 minutes before your flight. If you miss your pickup time or your flight details have changed please let us know as soon as possible.
When you collect your order you will have the opportunity to inspect the items and sign for them.
If you need to return an item, our Collection Point team are there to help you. If you are collecting after hours please return the item to your locker and our team will be in touch as soon as possible. You may also like to view our Returns & refunds which provides information on how this works and outlines the individual retailer's returns and refunds policies.
After Hours Collections
If your order needs to be collected after the Auckland Airport Collection Point desk is closed, your order will be placed in the lockers next to the desk. All the details you will need to collect your order will be provided in your Order Confirmation and Ready to Collect Email.
