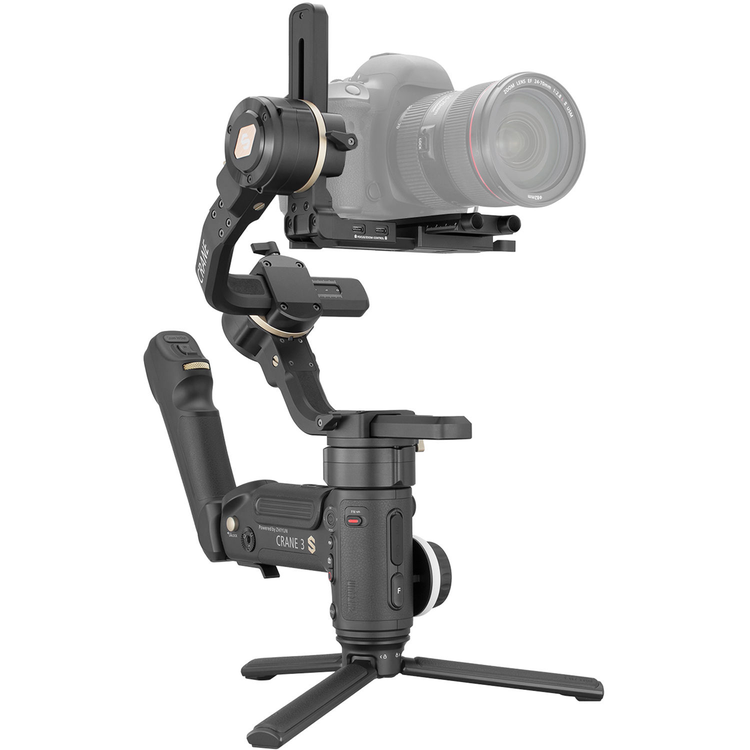

The CRANE 3S Handheld Stabilizer from Zhiyun-Tech is a powerful redesign of previous Zhiyun gimbals with the addition of detachable handle options, more powerful motors with a large 14.3 lb payload, an updated axis-locking system, external power input, and the ViaTouch 2.0 remote control system. The 55° angled roll axis allows you to fit your camera without blocking the view, and it is also modular so you can add an included extension arm to fit larger cameras.
The CRANE 3S features an angled, ergonomic handle that provides two-handed operation for optimal stability. The handle enables you to seamlessly switch to underslung mode, whether with one or two hands, and achieve creative shots such as 330° roll shots as you move closer toward a subject. It also has numerous advanced features such as remote control of camera record/stop/shutter using the included cables, an improved zoom and focus system from its predecessor the CRANE 3 LAB, and compatibility with the separately available Transmount Image Transmission System for wireless video transmission. It can also accommodate a wide range of camera sizes by utilizing a separately available extension module to extend the horizontal arm.
The 3S has two options for the detachable, angled handle. Included is the SmartSling that offers an ergonomic handle with an integrated joystick and control buttons, and the optional EasySling provides a simple, comfortable handgrip without controls. All the controls you need are provided at your fingertips at the top of the main handle along with an OLED status screen. The free Zhiyun iOS/Android app provides many of the same control functions, as well as special features such as panorama, focus time-lapse, motion time-lapse, long exposure time-lapse, camera settings, and more.
You can power the 3S using the three included batteries for up to 12 hours. However, if you need extra shooting time, a DC port allows you to plug in an optional battery pack such as the Transmount PowerPlus that contains six 18650 batteries, extending your shooting time to up to 18 hours. The CRANE 3S can be controlled using the updated ViaTouch 2.0 iOS or Android smartphone app via Bluetooth 5.0 for remote motion control and to manage the gimbal settings.
Nine accessory mounting threads are available around the gimbal to add a variety of Transmount or third-party accessories. Another major feature of the gimbal is a redesigned axis latch lock system consisting of a separate latch lock on each axis that provides solid locking in place without excess sway. This feature allows you to lock the individual axes to remember your balance positions when powering the gimbal off so you won't have to rebalance for each use.
Innovative Gimbal Design
Detachable, angled handle allows for two-handed operation; included SmartSling or optional EasySling handle options, and is compatible with a wide range of rigs and cameras
Powerful Motors
Featuring more powerful motors and a different gimbal design from the CRANE 3 LAB, the CRANE 3S achieves a greater load capacity of 14.3 lb
Crafted Latch Design
The CRANE 3S features a redesigned locking latch system that retains its balance position when turned off, and also locks more securely to prevent any excess joint sway
ViaTouch 2.0 Control System
The CRANE 3S ViaTouch 2.0 Control System consists of a variety of controls for framing shots, controlling certain gimbal movements, and adjusting camera settings, and it even supports SyncMotion, a motion control system using the physical movements of your remote control device
Accessory Compatibility Options
The CRANE 3S is compatible with optional Transmount products such as the Image Transmission System and other accessories that can attach to its numerous accessory threads
Note:
The CRANE 3S doesn't support many third-party 18650 batteries because it requires the slightly shorter kind made by Zhiyun-Tech, so only Zhiyun-Tech 18650 batteries are recommended.
Grip Design
Single Handgrip (Slanted)
Gimbal
Load Capacity
1.32 to 14.3 lb / 0.6 to 6.49 kg
Number of Axes
3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range
Controllable Range
Yaw (Pan):
360°
Pitch (Tilt):
246° (-91 to 155°)
Roll:
295° (-57.5 to 237.5°)
Connectivity
Inputs/Outputs
1 x USB-C (Power / Control) Input
1 x Proprietary (25.2 VDC Power) Input
Wireless Protocol
Bluetooth 5.0
Battery
Battery Type
3 x 18650
Battery Capacity
2600 mAh
Battery Runtime
12 Hours
Battery Chemistry
Lithium-Ion
Voltage
9.8 to 11.1 VDC
Power
Operating Voltage
9.8 to 25.2 VDC
Operating Current
360 to 5400 mA (Maximum)
Environmental
Operating Temperature
22 to 77°F / -10 to 45°C
General
Mounting
9 x 1/4"-20 Female
Dimensions
13.62 x 13.54 x 3.86" / 346 x 344 x 98 mm
Weight
5.45 lb / 2.47 kg
Packaging Info
Package Weight
10.51 lb
Box Dimensions (LxWxH)
18 x 16 x 6.2"
