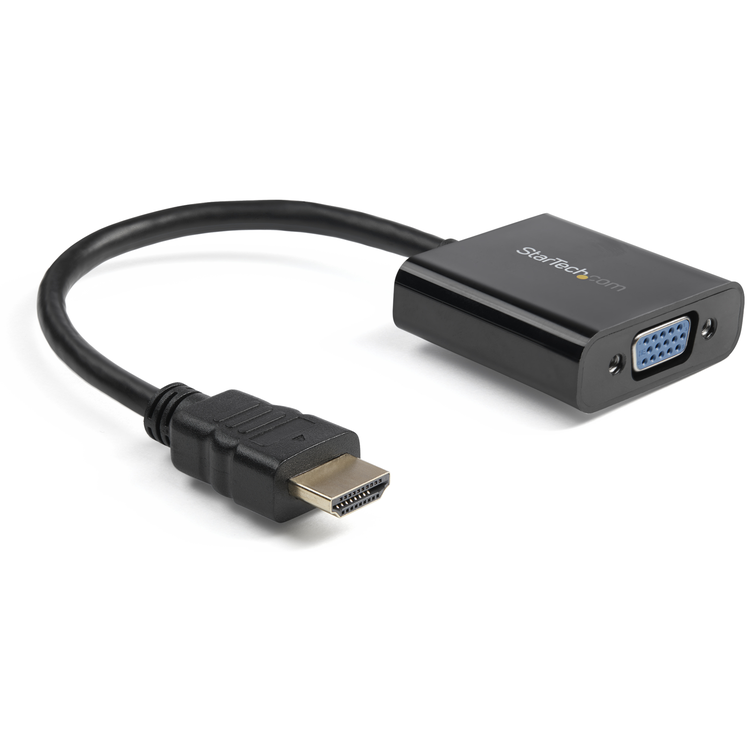

StarTech.com HD2VGAE2 1080p 60Hz HDMI to VGA High Speed
Connect an HDMI® equipped Laptop, Ultrabook, or Desktop Computer to your VGA Display, or Projector
- CONNECT TO LEGACY DISPLAY: Cut upgrading costs by continuing to use legacy equipment; The HDMI (male) to VGA (female) active adapter enables you to connect a newer HDMI based desktop or laptop (like an Ultrabook) to an older VGA monitor or projector
- HIGH QUALITY VIDEO OUTPUT: With support for resolutions up to 1920x1080 @ 60Hz (1080p), this IT-grade VGA display converter produces full HD, crystal-clear video output to ensure your picture quality is not compromised
- PERFECT PORTABILITY: Designed with the traveling professional in mind, this ultra lightweight HDMI to VGA adapter doesn't require an external power adapter and fits perfectly in your laptop bag; It's the perfect accessory for the IT pro on the go
- HASSLE-FREE: Supporting a true plug-and-play experience, this black HDMI video adapter offers a quick and easy setup, with no additional software or drivers needed; Ease of use ensures users can connect whether they're traveling, in the office or at home
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI to VGA high speed display adapter is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance
The HD2VGAE2 HDMI® to VGA adapter allows you to connect an HDMI output from your laptop, ultrabook, or desktop computer onto a VGA monitor or projector, saving the cost of upgrading to an HDMI compatible display. Intended for outputting user generated content such as presentations, and work documents, the HDMI to VGA converter can also work to increase your productivity by extending your computer's desktop onto a secondary monitor, doubling available workspace.
With no need for an external power source, and support for resolutions up to 1080p (1920x1080), this active HDMI to VGA adapter offers a compact and portable solution for connecting a High-Definition VGA display.
Looking for an HDMI to VGA coverter for your Chromebook? Use the HD2VGAMICRO.
The HD2VGAE2 HDMI® to VGA Adapter is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Applications
Connect HDMI-enabled devices such as your laptop, ultrabook, or desktop computer to a VGA projector or display
Connector(s)
Connector A
1 - HDMI (19 pin)
Connector B
1 - VGA (15 pin, High Density D-Sub)
Environmental
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
40% to 85% RH Non-Condensing
Hardware
Active or Passive Adapter
Active
AV Input
HDMI
AV Output
VGA
Ports
1
Audio
No
Industry Standards
High Speed HDMI®
Chipset ID
ITE - IT6695FN
Packaging Information
Package Height
0.8 in [2.1 cm]
Package Length
6.7 in [17.0 cm]
Shipping (Package) Weight
1.8 oz [50.0 g]
Package Width
7.7 in [19.6 cm]
Package Quantity
1
Performance
Maximum Analog Resolutions
1920x1080
Maximum Digital Resolutions
1920x1080
Supported Resolutions
1920x1080 (1080p) @ 60Hz
Wide Screen Supported
Yes
MTBF
1,754,784 Hours
Physical Characteristics
Weight of Product
1.4 oz [40 g]
Color
Black
Material
Plastic
Cable Length
7.9 in [200 mm]
Product Length
9.6 in [24.5 cm]
Product Width
1.6 in [4.0 cm]
Product Height
0.6 in [1.5 cm]
Special Notes / Requirements
Note
This adapter will not work with Samsung Chromebooks. HD2VGAMICRO is recommended for this application.
What's in the Box
Included in Package
1 - HDMI® to VGA Converter Adapter
- Connector A
- 1 - HDMI (19 pin)
- Connector B
- 1 - VGA (15 pin, High Density D-Sub)
- Operating Temperature
- 0°C to 60°C (32°F to 140°F)
- Storage Temperature
- -10°C to 70°C (14°F to 158°F)
- Humidity
- 40% to 85% RH Non-Condensing
- Active or Passive Adapter
- Active
- AV Input
- HDMI
- AV Output
- VGA
- Ports
- 1
- Audio
- No
- Industry Standards
- High Speed HDMI®
- Chipset ID
- ITE - IT6695FN
- Package Height
- 0.8 in [2.1 cm]
- Package Length
- 6.7 in [17.0 cm]
- Shipping (Package) Weight
- 1.8 oz [50.0 g]
- Package Width
- 7.7 in [19.6 cm]
- Package Quantity
- 1
- Maximum Analog Resolutions
- 1920x1080
- Maximum Digital Resolutions
- 1920x1080
- Supported Resolutions
- 1920x1080 (1080p) @ 60Hz
- Wide Screen Supported
- Yes
- MTBF
- 1,754,784 Hours
- Weight of Product
- 1.4 oz [40 g]
- Color
- Black
- Material
- Plastic
- Cable Length
- 7.9 in [200 mm]
- Product Length
- 9.6 in [24.5 cm]
- Product Width
- 1.6 in [4.0 cm]
- Product Height
- 0.6 in [1.5 cm]
- Note
- This adapter will not work with Samsung Chromebooks. HD2VGAMICRO is recommended for this application.
- Included in Package
- 1 - HDMI® to VGA Converter Adapter
