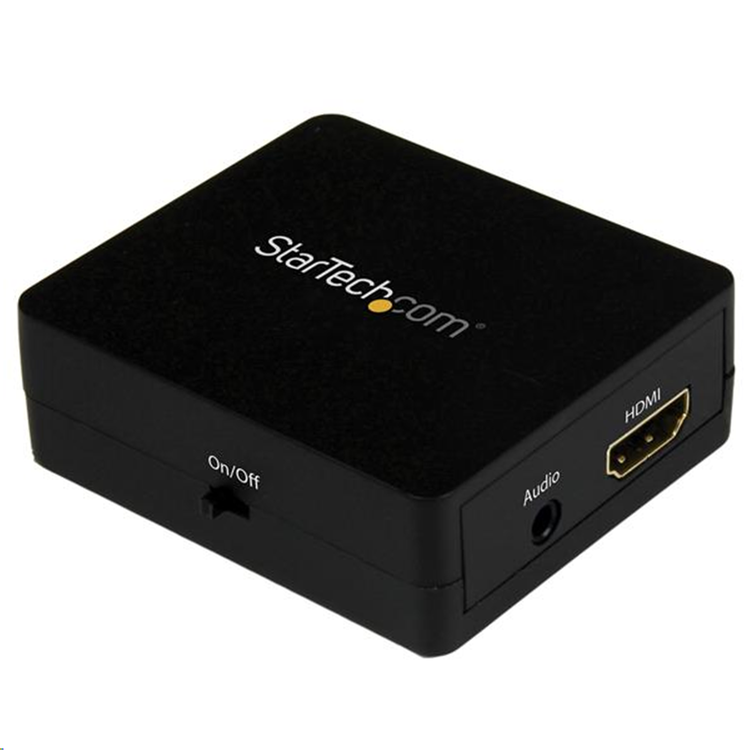

This HDMI® audio extractor lets you separate stereo audio from your HDMI video signal and connect it to a 3.5mm audio device, such as your stereo sound system or desktop speakers. You can also extract the audio from the HDMI signal and integrate it into an optical TOSLINK® application, using the included digital SPDIF adapter.
Hassle-free integration
Your latest consumer A/V equipment probably only offers an HDMI output. This can make it difficult to integrate devices, such as your new Blu-ray™ player or computer system, with your existing audio equipment or desktop speakers. The HDMI audio extractor is USB powered using the included power cable, for easy integration with your computer systems. The adapter also features a small footprint that discreetly blends into your hardware setup, for a uniform look.
Versatile connection options
With a 3.5mm audio output and a TOSLINK adapter included, the HDMI audio extractor lets you output audio to virtually any non-HDMI equipment, whether it's digital or analog. This makes the audio extractor great for any application where you need to connect your HDMI source to speakers that don't have an HDMI input - such as desktop speakers, or a classroom or boardroom sound system.
Maximum compatibility
The audio extractor is HDCP enabled and HDMI 1.3b compliant, to ensure compatibility with your HDMI device. Plus, the HDMI output supports resolutions up to 1920x1080 (1080p) at 60Hz, to fit any HD application. The HDMI audio extractor can also be used with an inexpensive dual-RCA composite adapter (sold separately) to integrate the audio from your HDMI source into 2-channel RCA audio applications.
The HD2A is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Hardware
Audio
Yes
Chipset ID
Explore-EP93Z3E
Output Signal
3.5 mm Audio
HDMI
Performance
Audio Specifications
2.1 stereo audio
Maximum Digital Resolutions
1080p (1920 x 1080)
Supported Resolutions
Up to 1080p (1920 x 1080)
Wide Screen Supported
Yes
Connector(s)
Connector A
1 - HDMI (19 pin) Female Input
Connector B
1 - 3.5 mm Mini-Jack (3 Position) Female Output
1 - HDMI (19 pin) Female Output
Connector Type(s)
1 - USB Mini-B (5 pin) Female
Power
Power Source
USB-Powered
Environmental
Humidity
5% to 95% non-condensing
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
Included in Package
1 - HDMI audio extractor
1 - USB power cable
1 - Toslink adapter
