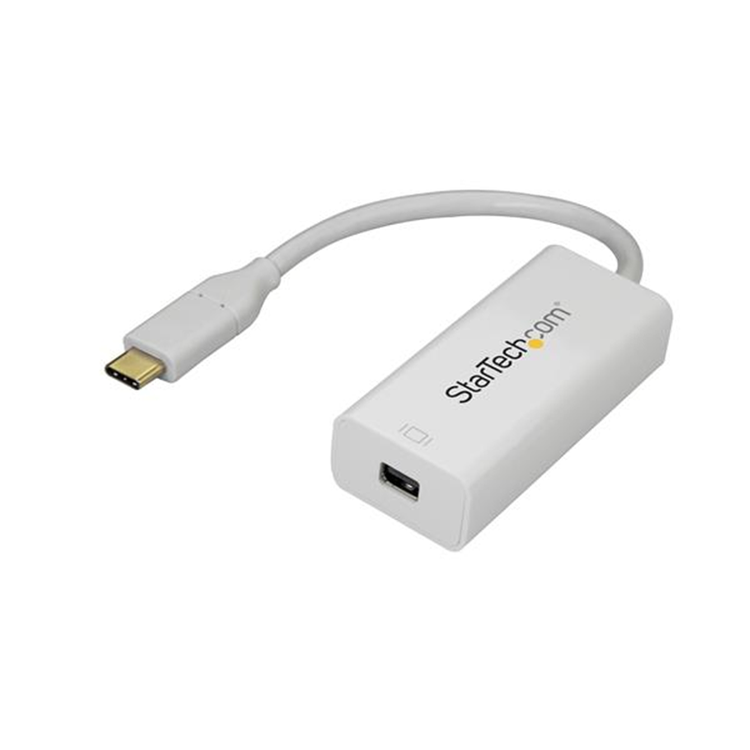

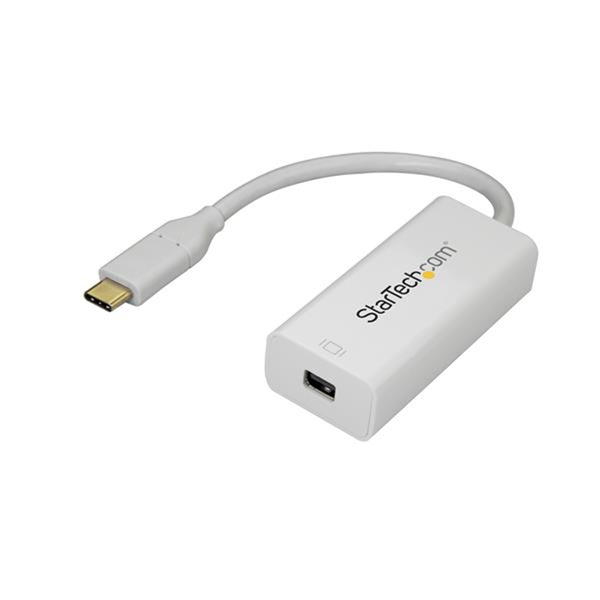

This USB-C™ to Mini DisplayPort adapter lets you output mDP video and audio from the USB Type-C™ port on your laptop or other device. The adapter works with USB-C devices that pass a DisplayPort video signal (DP Alt Mode), such as your MacBook Pro, Chromebook™ or other USB-C laptop. This versatile adapter enables you to connect a Mini DisplayPort monitor to your USB-C computer using a Mini DisplayPort cable, or re-purpose your existing mDP equipped workspace to work with your new USB-C computer.
Ultra HD 4K resolution at 60Hz
For easier multitasking, the adapter lets you harness the video capabilities that are built into your computer's USB-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier to multitask, even while working on resource-demanding applications. With this adapter, you can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
Applications
- Connect your BYOD MacBook Pro or Dell XPS with USB-C to a provided Mini DisplayPort monitor at work
- Connect an mDP display to your USB-C laptop to use as a secondary display
- Connect a secondary USB-C laptop to the mDP port on your 2009 or 2010 iMac, to use your iMac as a monitor
Active or Passive Adapter
Passive
Adapter Style
Adapters
Audio
Yes
Chipset ID
- NXP - PTN5100
- Pericom - PI3DPX1203
Converter Type
Format Converter
Audio Specifications
7.1 surround sound
Maximum Digital Resolutions
4K (3840 x 2160) @ 60 Hz
Supported Resolutions
- 1024 x 768
- 1280 x 720
- 1920 x 1080 @ 144hz
- 1920 x 1200
- 2560 x 1440
- 2560 x 1600
- 3840 x 2160 @ 60Hz
Video Revision
DisplayPort 1.2
Wide Screen Supported
Yes
Connector A
- 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
- 1 - Mini-DisplayPort (20 pin) Female Output
System and Cable Requirements
- Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
- This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters
- This adapter will not support Thunderbolt displays
