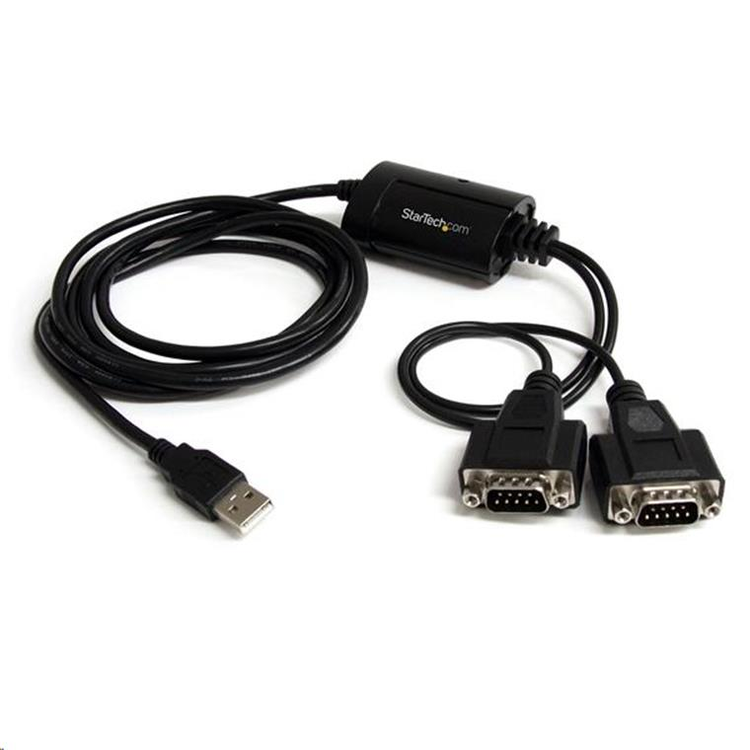

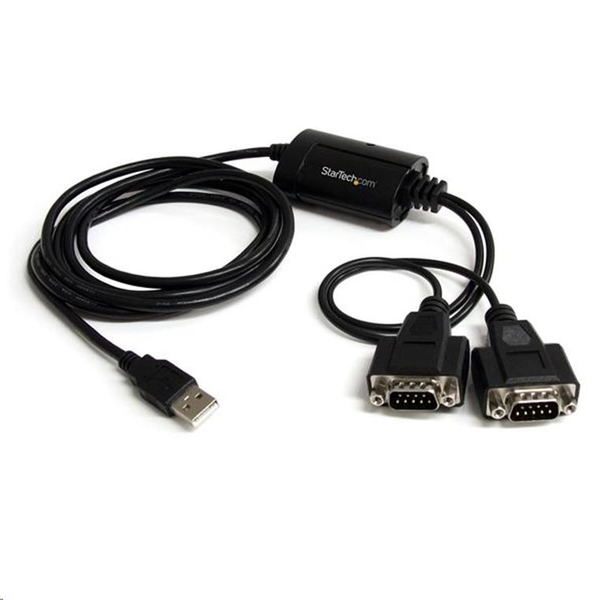

StarTech.com ICUSB2322F 1-Port - FTDI - COM Retention USB to Serial Cable
2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Simple installation and operation with COM port retention provides robust connectivity for serial devices
- Portable USB-Powered design requires no bulky power adapter or outlet
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
Bus Type
USB 2.0
Chipset ID
FTDI - FT2232D
Interface
Serial
Port Style
Cable Adapter
Ports
2
Data Bits
7, 8
FIFO
128 Bytes
Max Baud Rate
921.6 Kbps
Parity
None, Odd, Even, Mark, Space
Serial Protocol
RS-232
Stop Bits
1, 2
Connector Type(s)
1 - USB A (4 pin) Male
2 - DB-9 (9 pin, D-Sub) Male
OS Compatibility
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
System and Cable Requirements
One available USB 1.1 (or better) port
Power Source
USB-Powered
Humidity
5~95% RH
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Cable Length
6 ft [1.8 m]
Color
Black
Enclosure Type
Plastic
Included in Package
1 - 2 Port USB to RS-232 Serial Adapter
1 - Wall Mounting Kit
1 - Driver CD
1 - Instruction Manual
