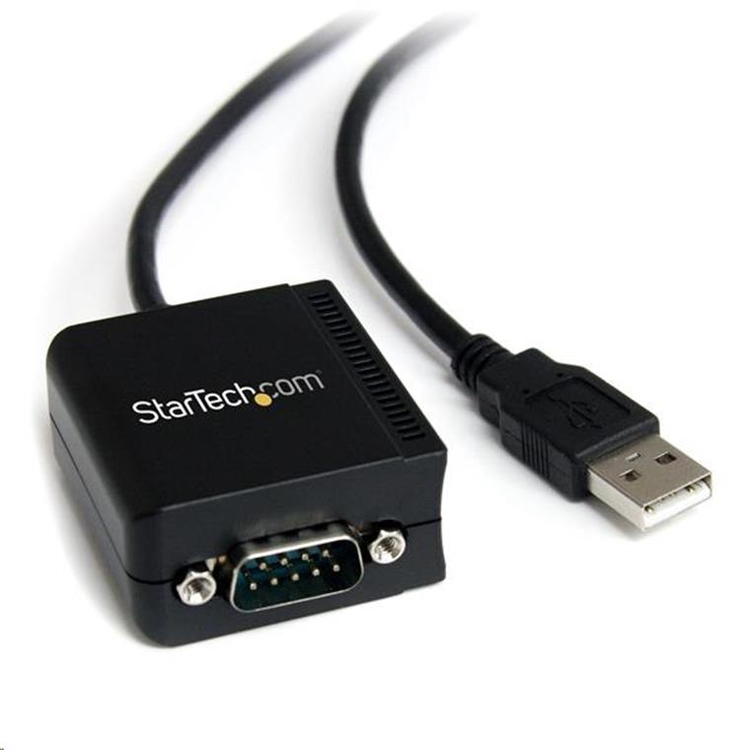

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
Hardware
Bus Type
USB 2.0
Chipset ID
FTDI - FT232RL
Interface
Serial
Port Style
Cable Adapter
Ports
1
Performance
Data Bits
7, 8
FIFO
256 Bytes
Max Baud Rate
115.2 Kbps
MTBF
836981.2 hours
Parity
None, Odd, Even, Mark, Space
Serial Protocol
RS-232
Stop Bits
1, 2
Connector(s)
Connector Type(s)
1 - DB-9 (9 pin, D-Sub) Male
1 - USB A (4 pin) Male
Software
OS Compatibility
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements
One available USB 1.1 (or better) port
Power
Power Source
USB-Powered
Environmental
Humidity
5~95% RH
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Cable Length
6 ft [1.8 m]
Color
Black
Enclosure Type
Plastic
Product Height
0.9 in [22 mm]
Product Length
1.8 in [45 mm]
Product Weight
7.1 oz [200 g]
Product Width
1.6 in [41.5 mm]
