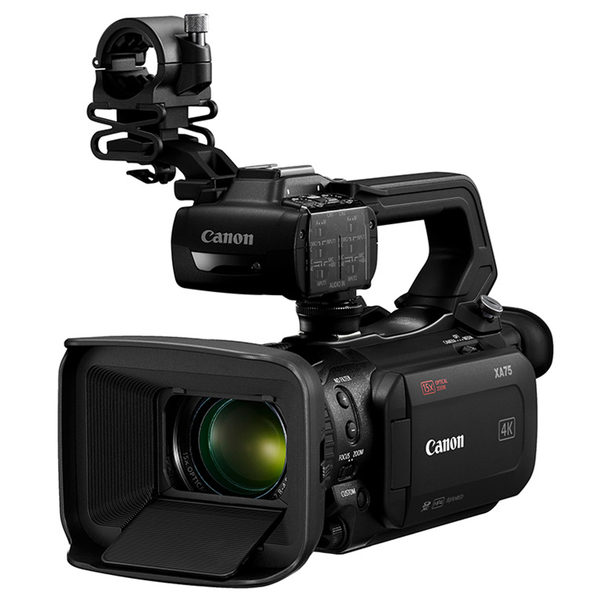

Get your shot, tell your story Shoot high quality 4K UHD video with the compact XA75. As well as outstanding Over Sampling HD processing, Dual Pixel CMOS AF, a Canon 15x optical zoom lens and HD livestreaming in UVC1 via USB-C over a computer, capture high quality footage in either XF-AVC or MP4 formats. Compact professional 4K UHD camcorder Capture stunning 4K UHD and superior Full HD images thanks to a 1.0-inch Type CMOS 4K sensor and DIGIC DV6 image processor. Over Sampling HD processing delivers Full HD images from the sensor. 4K 15x optical zoom lens The Canon lens covers a 25.5 - 382mm (35mm equivalent) range. A digital zoom boosts to 300x with 5-axis image stabilisation. Fast, precise focusing with face detection Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring. XF-AVC and MP4 for flexible recording Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 25P, plus Full HD 45Mbps at 50P/50i/25P. For smaller files, record MP4 4K 150Mbps at 25P and Full HD 35Mbps or 17Mbps at 50P/25P. Multiple shooting functions Output options include 3G-SDI, simultaneous backup and relay recording via dual SD card and Infrared mode. For specialist capture, record Slow Motion in Full HD 0.5x or Fast Motion in 4K/Full HD up to 1200x. Colour match with other Canon cameras via the custom picture menu. Livestream and more Stream HD footage via UVC1 over a computer or add a date and time stamp with OSD recording. Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
- Sensor
- 1 inch-type CMOS Sensor
- Filter
- RGB Primary Colour Filter
- Total Pixels
- Approx.13.4MP
- Effective Pixels per Sensor
- Approx. 8.29 MP (3840 x 2160)
- Subject Illumination Range
- Approx. 0.1 lx to 100,000 lx
- Minimum Illumination (PAL)
- Approx. 0.1 lx: Low Light (shooting mode), shutter speed 1/2 sec.
- Approx. 1.4 lx: In P (Program AE) mode, 50.00P, shutter speed 1/25 sec. auto slow shutter On
- Type
- DIGIC DV 6
- Colour Sampling
- YCC 4:2:0 8bit
- Zoom Ratio
- 15 x optical
- Focal Length (35mm Equivalent)
- Approx. 25.5 - 382.5mm Standard IS/IS Off
- Minimum Focus Distance
- 1 cm at wide end, 60 cm across entire zooming range
- Max. Aperture
- f/2.8 - 4.5
- Aperture Blades
- 9 blades
- Filter Diameter
- 58mm
- Image Stabilization System
- Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
- ND Filter
- 3 densities: ND 1/4, ND 1/16, and ND 1/64, turret switched, motor-driven.
- Zoom Control
- Zoom rockers on body and handle;
- Touch Screen or Remote Controller Selectable manual zoom/focus ring on lens;
- Selectable High Speed and Soft Zoom modes available.
- Zoom Speed
- Variable (body rocker only) or Constant speed (body and handle rocker;
- Fast/Normal/Slow, 16 speed level settings in each)
- Focus Control
- MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset.
- AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. Face Frame displays tracked subject
- Focus System
- Dual Pixel CMOS AF, detection range 80% vertical/80% horizontal of field of view Contrast AF.
- AF Modes
- Continuous, AF-Boosted MF
- Face Detection and Tracking, Face Only AF.
- Manual Focus Assist
- Dual Pixel Focus Guide, Peaking, Magnification
- Iris Control
- Touchscreen, Auto
- Digital Zoom/Teleconverter
- 20x Digital zoom (300x with optical zoom) and 40x digital zoom (600x with optical zoom) are available. Digital zoom not available in AUTO mode.
- 2x Digital Teleconverter (Not available when using Digital Zoom)
- Video Storage Media
- SD/SDHC/SDXC card (2 card slots)
- Type
- U3 Class recommended for all recording conditions * UHS-II not supported.
- Recording Time
- MP4: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
- XF-AVC:160Mbps: 50 mins/45 Mbps: 185 mins
- Recording File System
- FAT32/exFAT
- Internal Recording Format (PAL)
- XF-AVC:
- 3840 x 2160 / 25.00P (160 Mbps)
- 1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
- MP4:
- 3840 x 2160 / 25.00P(150 Mbps)
- 1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)
- External Recording Output
- HDMI output (When Shooting):
- UHD recording mode:
- 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
- Full HD recording mode:
- 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
- SDI output (When Shooting):
- UHD recording mode:
- 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
- Full HD recording mode:
- 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
- Slow/Fast Motion (PAL)
- 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200
- 1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
- 1920 x 1080 / 25.00P: x0.5
- Pre-Record Function
- Yes. 3 seconds
- Still Photos
- JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)
- Photo Storage Media
- SD Card
- Display Type
- Capacitive LCD touch panel
- Size
- 3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)
- Wave Form Monitor
- No
- Focus Assist
- Peaking / Magnify
- Peaking
- Selectable Peaking Colour: Red / Blue / Yellow
- Zebra
- 70% or 100% reference level
- Markers
- Grid (white/grey), Level (white/grey), 4:3 (white/grey)
- Size
- 0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576)
- Correction Lens
- +2.0 to -5.5 dioptre
- Audio Input
- XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC) Built-in Mic
- Headphone Output
- 3.5mm stereo mini jack
- HDMI Output
- HDMITM mini connector. Timecode can be superimposed onto HDMI output
- USB
- Type-C Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.
- SDI Output
- 3G-SDI
- Time Code
- Rec Run / Free Run
- Genlock
- No
- LAN
- No
- AV Terminal
- No
- DC Input
- USB-C
- Remote Control Terminal
- 2.5mm mini jack
- Tally Lamp
- Yes, in detachable Handle Unit
- Colour Bars (PAL)
- Yes. SMPTE, ARIB or EBU, with 1KHz Tone
- Accessory Shoe
- Yes (cold shoe)
- Assignable Buttons
- 5 assignable Buttons
- Custom Dial
- Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off
- Video Output (UVC)
- Recording system: Motion JPEG
- Resolutions: 1920×1080 (when main resolution is not 1280×720) 1280×720 (when main resolution is 1280×720)
- Frame rates: 25 fps (best effort)
- Exposure Metering
- Center-weighted average metering
- AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes
- Segment evaluative metering
- Night Scene, Snow, Beach, Sunset, Spotlight modes
- No metering in Fireworks mode: Exposure constant
- Exposure Compensation
- Highlight AE, Normal, Exposure lock, Auto backlight compensation.
- Exposure Lock
- Yes.
- Auto ISO / Auto Gain Control Setting
- Auto / Manual
- Auto Gain Control Limit
- 0 - 38dB (1dB increments)
- Wide DR Mode: 9 -38dB (1dB increments)
- Control Modes
- Auto, P, Tv, Manual
- Shutter Speed (PAL)
- 1/6 - 1/2000 sec
- (1/2 - 1/500 sec in Low Light mode)
- Shutter Speed range available dependent on shooting mode
- Slow Shutter (SLS)
- 50.00P:
- Auto slow shutter On: 1/25 to 1/500 sec.
- Auto slow shutter Off: 1/50 to 1/500 sec.
- 25.00P:
- Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12)
- Auto slow shutter Off: 1/25 to 1/500 sec.
- Clear Scan (PAL)
- No
- Wi-Fi
- No
- GPS Information (Optional Accessory)
- Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception.
- (requires the optional GPS Receiver GP-E2)
- Auto
- Yes
- Preset
- Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
- Manual Setting
- Colour Temperature range: 2,000-15,000K
- Default value for Set 1 and Set 2: 5,600K
- Program AE
- AUTO mode
- M (Manual) mode
- P (program AE), Tv (shutter-priority AE), Av (aperture-priority AE), M (manual exposure), SCN (Portrait, Sports, Night Scene, Snow, Beach, Sunset, Low Light, Spotlight, Fireworks) IR mode
- Custom Picture Menu
- C1: Normal (BT.709 Normal / BT.709)
- C2: Wide DR (BT.709 Wide DR / BT.709)
- C3: LOG3 (Canon Log 3 / BT.709)
- C4: EOS Std. (EOS Standard / BT.709)
- C5 to C6: USER05 to USER06 (same as C1)
- Look Settings
- Standard
- Neutral
- Wide DR
- Monochrome
- Standard (Adjustment: Sharpness, Contrast, Colour Depth)
- Infrared Shooting Mode
- Yes
- Built-in IR Lamp
- Yes, in detachable Handle Unit.
- Wavelength: 850nm (near-Infrared)
- Recording Format
- MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
- Audio Control
- Manual/Auto
- Independent 2ch Line/Mic/Mic+48V input;
- Independent level control per channel (-8 to +18 dB);
- Independent audio limiters (2 ch);
- Input mic trimming
- Reference Tone
- 1KHz, -12dB / -18dB / -20dB / Off
- Microphone Attenuation
- On/Off (20dB)
- Microphone Level Meter
- Yes
- Supplied
- Lens hood with barrier, Mic holder unit, Handle Unit, Battery Pack BP-820, USB Power Adapter PD-E1, AC Cable
- Power Supply (Battery)
- Canon Battery Pack BP-820 (supplied), BP-828 (optional)
- Power Consumption
- MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: 5.2W
- Recording Time
- MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: Max 140 mins, typical 75 mins (BP-820)
- Dimensions
- Approx. 110 x 91 x 214 mm (main body only)
- Approx. 140 x 216 x 265 mm
- (Including lens hood, BP-820, mic holder unit, and handle unit)
- Weight (Body Only)
- 990g
- Weight (Accessories)
- 1465g
- Operating Temperature Range
- 0ºC to +40ºC, 85% relative humidity
