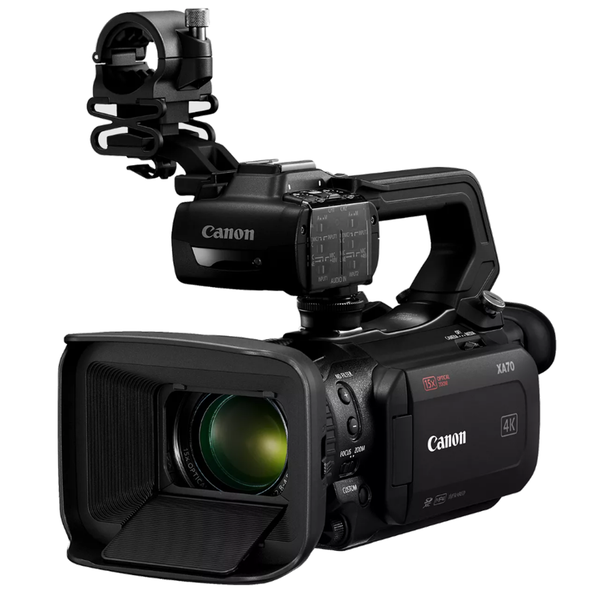

Shoot, Record, Document, Stream Shoot high quality 4K UHD video with the compact XA70. The camcorder delivers outstanding oversampled HD, Dual Pixel CMOS AF, a 15x optical zoom lens and HD livestreaming with UVC1 via a USB-C connection to a PC or Mac. Capture footage for recording or sharing later in either XF-AVC or MP4 formats. Compact Professional 4K UHD Camcorder Capture stunning 4K UHD and Full HD images thanks to a 1.0-inch Type CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor. On-Screen Display (OSD) "Time Stamp" Recording The OSD recording feature embeds date, time, timecode and other data into the original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers. For projects that require the date and time to be visible in the image, the camera will be able to include that information in the on-screen display while recording. 4K 15x Optical Zoom Lens The XA70's lens covers a 25.5 - 382mm (35mm equivalent) range. Digital zoom boosts the 15x optical zoom to 600x magnification. To minimize camera shake, the camera provides Canon's Dynamic IS 5-axis image stabilization. Fast, Precise Focusing with Face Detection Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultra-bright 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring. XF-AVC and MP4 for Flexible Recording Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P/24P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P. Professional Input and Output Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in 0.4x Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu. Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
- Sensor
- 1 inch-type CMOS Sensor
- Filter
- RGB Primary Colour Filter
- Total Pixels
- Approx.13.4MP
- Effective Pixels per Sensor
- Approx. 8.29 MP (3840 x 2160)
- Subject Illumination Range
- Approx. 0.1 lx to 100,000 lx
- Minimum Illumination (PAL)
- Approx. 0.1 lx: Low Light (shooting mode), shutter speed 1/2 sec.
- Approx. 1.4 lx: In P (Program AE) mode, 50.00P, shutter speed 1/25 sec. auto slow shutter On
- Image Processor
- Type
- DIGIC DV 6
- Colour Sampling
- YCC 4:2:0 8bit
- 15 x optical
- Focal Length (35mm Equivalent)
- Approx. 25.5 - 382.5mm Standard IS/IS Off
- Minimum Focus Distance
- 1 cm at wide end, 60 cm across entire zooming range
- Max. Aperture
- f/2.8 - 4.5
- Aperture Blades
- 9 blades
- Filter Diameter
- 58mm
- Image Stabilization System
- Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
- ND Filter
- 3 densities: ND 1/4, ND 1/16, and ND 1/64, turret switched, motor-driven.
- Zoom Control
- Zoom rockers on body and handle;
- Touch Screen or Remote Controller Selectable manual zoom/focus ring on lens;
- Selectable High Speed and Soft Zoom modes available.
- Zoom Speed
- Variable (body rocker only) or Constant speed (body and handle rocker;
- Fast/Normal/Slow, 16 speed level settings in each)
- Focus Control
- MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset.
- AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. Face Frame displays tracked subject
- Focus System
- Dual Pixel CMOS AF, detection range 80% vertical/80% horizontal of field of view Contrast AF.
- AF Modes
- Continuous, AF-Boosted MF Face Detection and Tracking, Face Only AF.
- Manual Focus Assist
- Dual Pixel Focus Guide, Peaking, Magnification
- Iris Control
- Touchscreen, Auto
- Digital Zoom/Teleconverter
- 20x Digital zoom (300x with optical zoom) and 40x digital zoom (600x with optical zoom) are available. Digital zoom not available in AUTO mode.
- 2x Digital Teleconverter (Not available when using Digital Zoom)
- Video Storage Media
- SD/SDHC/SDXC card (2 card slots)
- Type
- U3 Class recommended for all recording conditions * UHS-II not supported.
- Recording Time
- MP4: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
- XF-AVC:160Mbps: 50 mins/45 Mbps: 185 mins
- Recording File System
- FAT32/exFAT
- Internal Recording Format (PAL)
- XF-AVC:
- 3840 x 2160 / 25.00P (160 Mbps)
- 1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
- MP4:
- 3840 x 2160 / 25.00P(150 Mbps)
- 1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)
- External Recording Output
- HDMI output (When Shooting):
- UHD recording mode:
- 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
- Full HD recording mode:
- 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
- Slow/Fast Motion (PAL)
- 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200
- 1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
- 1920 x 1080 / 25.00P: x0.5
- Pre-Record Function
- Yes. 3 seconds
- Still Photos
- JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)
- Photo Storage Media
- SD Card
- Display Type
- Capacitive LCD touch panel
- Size
- 3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)
- Wave Form Monitor
- No
- Focus Assist
- Peaking / Magnify
- Peaking
- Selectable Peaking Colour: Red / Blue / Yellow
- Zebra
- 70% or 100% reference level
- Markers
- Grid (white/grey), Level (white/grey), 4:3 (white/grey)
- Size
- 0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576)
- Correction Lens
- +2.0 to -5.5 dioptre
- Audio Input
- XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC) Built-in Mic
- Headphone Output
- 3.5mm stereo mini jack
- HDMI Output
- HDMITM mini connector. Timecode can be superimposed onto HDMI output
- USB
- Type-C Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.
- SDI Output
- No
- Time Code
- Rec Run / Free Run
- Genlock
- No
- LAN
- No
- AV Terminal
- No
- DC Input
- USB-C
- Remote Control Terminal
- 2.5mm mini jack
- Tally Lamp
- Yes, in detachable Handle Unit
- Colour Bars (PAL)
- Yes. SMPTE, ARIB or EBU, with 1KHz Tone
- Accessory Shoe
- Yes (cold shoe)
- Assignable Buttons
- 5 assignable Buttons
- Custom Dial
- Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off
- Video Output (UVC)
- Recording system: Motion JPEG Resolutions: 1920×1080 (when main resolution is not 1280×720) 1280×720 (when main resolution is 1280×720) Frame rates: 25 fps (best effort)
- Exposure Metering
- Center-weighted average metering
- AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes
- Segment evaluative metering
- Night Scene, Snow, Beach, Sunset, Spotlight modes
- No metering in Fireworks mode: Exposure constant
- Exposure Compensation
- Highlight AE, Normal, Exposure lock, Auto backlight compensation.
- Exposure Lock
- Yes.
- Auto ISO / Auto Gain Control Setting
- Auto / Manual
- Auto Gain Control Limit
- 0 - 38dB (1dB increments)
- Wide DR Mode: 9 -38dB (1dB increments)
- Auto, P, Tv, Manual
- Shutter Speed (PAL)
- 1/6 - 1/2000 sec
- (1/2 - 1/500 sec in Low Light mode)
- Shutter Speed range available dependent on shooting mode
- Slow Shutter (SLS)
- 50.00P:
- Auto slow shutter On: 1/25 to 1/500 sec.
- Auto slow shutter Off: 1/50 to 1/500 sec.
- 25.00P:
- Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12)
- Auto slow shutter Off: 1/25 to 1/500 sec.
- Clear Scan (PAL)
- No
- Wi-Fi
- No
- GPS Information (Optional Accessory)
- Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception.
- (requires the optional GPS Receiver GP-E2)
- Auto
- Yes
- Preset
- Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
- Manual Setting
- Colour Temperature range: 2,000-15,000K
- Default value for Set 1 and Set 2: 5,600K
- Shooting Modes
- Custom Picture Menu
- C1: Normal (BT.709 Normal / BT.709)
- C2: Wide DR (BT.709 Wide DR / BT.709)
- C3: LOG3 (Canon Log 3 / BT.709)
- C4: EOS Std. (EOS Standard / BT.709)
- C5 to C6: USER05 to USER06 (same as C1)
- Look Settings
- Standard
- Neutral
- Wide DR
- Monochrome
- Infrared Shooting Mode
- Yes
- Built-in IR Lamp
- Yes, in detachable Handle Unit.
- Wavelength: 850nm (near-Infrared)
- Recording Format
- MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
- Audio Control
- Manual/Auto
- Independent 2ch Line/Mic/Mic+48V input;
- Independent level control per channel (-8 to +18 dB);
- Independent audio limiters (2 ch);
- Input mic trimming
- Reference Tone
- 1KHz, -12dB / -18dB / -20dB / Off
- Microphone Attenuation
- On/Off (20dB)
- Microphone Level Meter
- Yes
- Supplied
- Lens hood with barrier, Mic holder unit, Handle Unit, Battery Pack BP-820, USB Power Adapter PD-E1, AC Cable
- Power Supply (Battery)
- Canon Battery Pack BP-820 (supplied), BP-828 (optional)
- Power Consumption
- MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: 5.1W
- Recording Time
- MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: Max 145 mins, typical 80 mins (BP-820)
- Dimensions
- Approx. 110 x 91 x 214 mm (main body only)
- Approx. 140 x 216 x 265 mm
- (Including lens hood, BP-820, mic holder unit, and handle unit)
- Weight (Body Only)
- 990g
- Weight (Accessories)
- 1465g
- Operating Temperature Range
- 0ºC to +40ºC, 85% relative humidity
