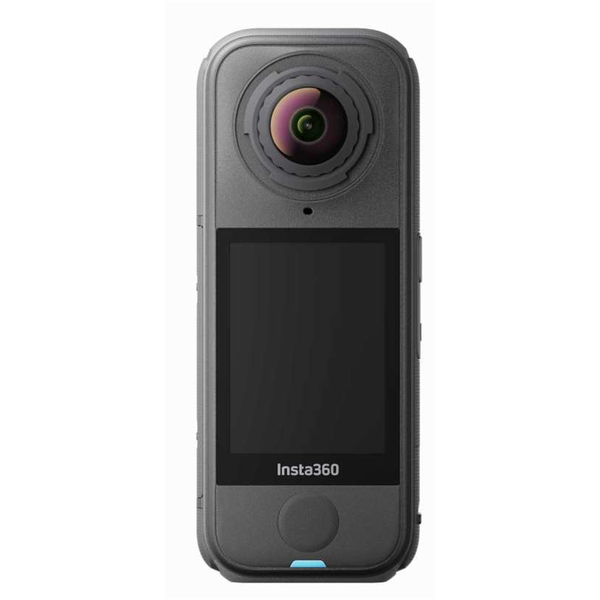

Insta360 X4 Air 360° Waterproof 8K Action Camera - Starter Bundle
- Sensor Size
- 1/1.8″
- Lens Aperture
- F1.95″
- Focal Length
- 6.4mm
- 360 Video Resolution
- Video Mode:
- 8K: 7680×3840@30/25/24fps
- 6K: 6016×3008@50/48/30/25/24fps
- 4K: 3840×1920@50/48/30/25/24fps
- InstaFrame Mode:
- 6K: 30/25/24fps
- Single-Lens Video Resolution
- Single-Lens:
- 4K: 3840×2160″
- 16:9@60/50/48/30/25/24fps
- 9:16@30/25/24fps
- 2.7K: 2720×1536@60/50/48/30/25/24fps
- 1080p: 1920×1080@60/50/48/30/25/24fps
- FreeFrame:
- 4K: 3840×3840@30/25/24fps
- 2.7K: 2720×2720@60/50/48/30/25/24fps
- 1080p: 1920×1920@60/50/48/30/25/24fps
- Me Mode:
- 4K: 3840×2160@30/25/24fps
- 2.7K: 2720×1536@60/50/48/30/25/24fps
- Photo Resolution
- Approx. 29MP (7680×3840)
- Video Format
- 360: INSV
- Single-Lens: MP4″
- Photo Format
- INSP (can export via mobile app or Studio desktop software)
- DNG
- Video Modes
- 360: Video, Active HDR, InstaFrame Mode, Timelapse, TimeShift, Bullet Time, Loop Recording, Road Mode
- Single-Lens: Video, FreeFrame, Me Mode, Loop Recording
- Photo Modes
- Photo, HDR Photo, Interval, Starlapse, Burst
- Color Profiles
- Vivid, Standard, Flat
- I-Log
- -
- Video Coding
- H.264, H.265″
- Max. Video Bitrate
- 180Mbps
- Exposure Value
- ±4EV
- ISO Range
- 100-3200″
- Shutter Speed
- Photo: 1/8000 - 120s
- Live Photo: 1/8000 - 1/30s
- Video: 1/8000 - to the limit of frames per second
- White Balance
- 2000K-10000K
- Audio Modes
- · Auto Wind Reduction
- · Active Wind Reduction
- · Stereo
- · Direction Focus
- Audio Format
- 48 kHz, 16bit, AAC
- Weight
- 165g 1″
- Dimensions (W x H x D)
- 46×113.8×37mm
- MicroSD Card
- UHS-I V30 speed class, exFAT format SD cards with a max storage of 1TB are recommended
- Battery Capacity
- 2010mAh
- Charging Time
- 80% in 36 mins (9V 2A)
- 100% in 57 mins (9V 2A)
- Run Time
- 8K30fps: 88 mins
- 6K24fps: 105 mins
- *Tested in a lab environment in 360 Video Mode.
- Operating Temperature
- -4°F to 104°F (-20? to 40?)
- Waterproof
- 49ft (15m)
- Bluetooth
- BLE 5.2″
- Wi-Fi
- 802.11a/b/g/n/ac
- USB
- USB-C 3.0″
- Gyroscope
- 6-axis gyroscope
- Mounting Point
- 1/4″ Quick Release
- Color
- Graphite Black, Arctic White
- Mobile Phones/Tablets
- iOS:
- Compatible with iOS mobile devices with A12 chips or above and iOS version 13.0 or above, including iPhone XS, iPhone XS Max, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 12 mini, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 13 mini, iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16, iPhone 16 Plus, iPhone 16 Pro, iPhone 16 Pro Max, iPhone Air, iPhone 17, iPhone 17 Pro, iPhone 17 Pro Max, iPad Air (2020), iPad Pro and newer iPad models.
- Android:
- Compatible with Android mobile devices that meet the following capabilities:
- Kirin 990 chips and above, including Huawei Mate 30, P40, or newer models.
- Snapdragon 855 chips and above, including Samsung Galaxy S10, Xiaomi Mi 9, or newer models.
- Exynos 2200 chips and above, including Samsung Galaxy S22, S22 Ultra, or newer models.
- (Must be using Android 10.0, HarmonyOS 2.0.0 or higher. Does not support HarmonyOS NEXT.)
- Note
- 1. Devices that do not meet the above requirements may still be able to use the app to control the camera. However, the performance of some processor-intensive and AI-powered features may be sub-optimal.
- 2. After testing, phones equipped with Qualcomm SDM765 5G chips have poor hardware decoding capabilities and are not supported for use, such as OPPO Reno 3 5G.
- 3. App installation requires a mobile phone with a 64-bit system. A 32-bit system does not support app installation.
- Bluetooth Devices
- Motorcycle Bluetooth Headsets:
- SENA: 60S, 50S, ST1, 10S, 50R, C30″
- Cardo: SPIRIT, PACKTALK EDGE, 4X, 2X, NEO
- Airide: G7+
- ASMAX: F1, Z1″
- Lexinmoto: G4″
- Vimoto: V9S, V9X
- Other Bluetooth Devices:
- Apple AirPods 2, Apple AirPods 3, Apple AirPods 4, Apple AirPods Pro 2″
- Samsung Galaxy Buds2, Buds
- Huawei FreeBuds Pro 2″
- Redmi Buds 5 Pro
- Shokz S810″
- OnePlus Buds Ace
- IQOO TWS 2″
- Jlad Go Air Sport
- OPPO Enco Air3″
- Microphone
- RØDE: Wireless GO II, VideoMicro, VideoMic Pro+, Wireless Pro, Wireless ME
- DJI: Mic, Mic 2″
- Boya: MMI, M1 Pro
- Sony: UWP-D21″
- Lark: LARK Max, LARK M1, LARK 150″
- Hollyland LARK M2″
- Blink900″
