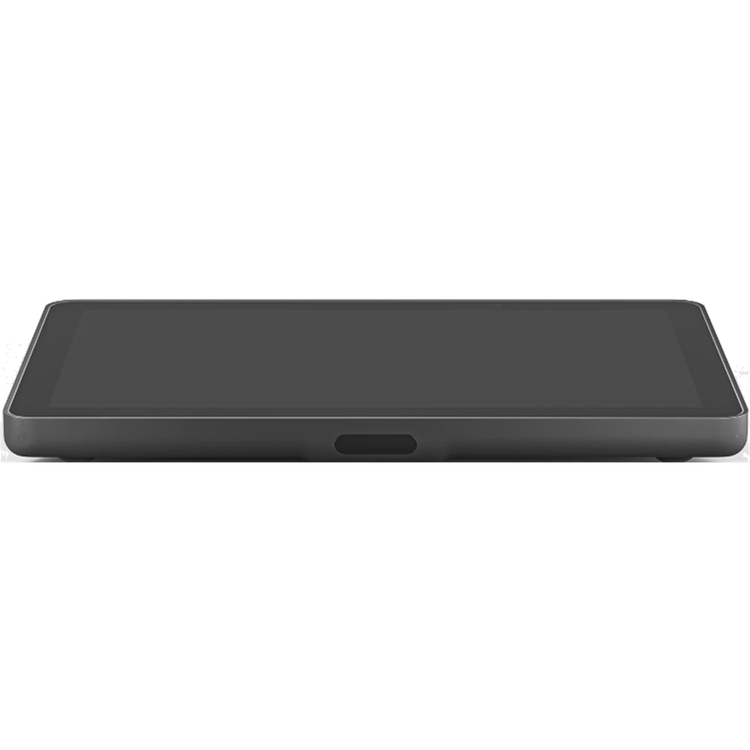

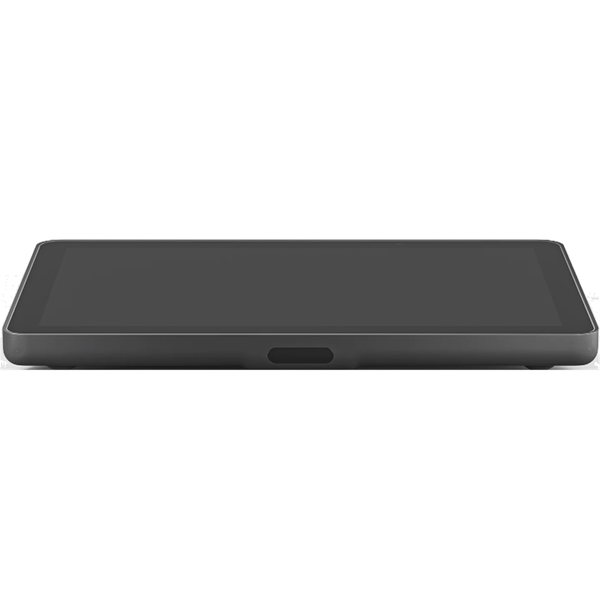

LOGITECH TAP IP
Make video meetings simple to join with a network-connected touch controller.
DEPLOY ROOM SOLUTIONS WITH EASE
Transform collaboration spaces with Logitech Tap IP and leading video conferencing room solutions. Deliver one-touch join, easy content-sharing, and a seamless meeting experience across all rooms.
CLEAN AND CONVENIENT SETUP - JUST THE RIGHT PRESENCE
With a spacious 10.1" display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room.
CLEAN AND CONVENIENT SETUP - SIMPLE AND SECURE CABLING
Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms.
CLEAN AND CONVENIENT SETUP - MULTIPLE MOUNTING OPTIONS
Install Tap IP almost anywhere in the room with Table and Riser Mounts that fit standard table grommets and rotate 180° for visibility and convenience. Or save table space in small rooms with the Wall Mount.
CLEAN AND CONVENIENT SETUP - SINGLE CABLE SIMPLICITY
With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install.
DESIGNED FOR ANY ROOM
Proovide a consistent one-touch join experience in rooms of virtually any size or shape.
PAIRS WELL WITH PARTNERS
Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience.1
SIMPLE TO MANAGE WITH LOGITECH SYNC
With Logitech Sync, you can monitor and manage Tap IP along with your other meeting room devices from one single platform.
A CHOICE YOU'LL FEEL GOOD ABOUT
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.
MADE WITH RECYCLED PLASTIC
The plastic parts in Tap IP graphite include 56% certified post-consumer recycled plastic to give a second life to end-of-life plastic from old consumer electronics and help reduce our carbon footprint.*
*Excluding accessories and packaging. Measured by weight.
CARBON NEUTRAL
Tap IP is certified carbon neutral. This means the carbon impact of the product and packaging has been reduced to zero due to Logitech’s investment in carbon offsetting and removal projects.
DIMENSIONS
Height: 56.1 mm
Width: 246.2 mm
Depth: 171.3 mm
Weight: 1 kg
TECHNICAL SPECIFICATIONS
Screen
Size: 10.1" diagonal
IPS (In-Plane Switching)
LCD Panel with LED Backlighting
Resolution: 1280 x 800 resolution
Touch: Capacitive, 10 points multi-touch
Brightness: 400 nits
Contrast: 1000:1
Anti Fingerprint: Oleophobic coating
Viewing angle: 85 degrees (U/D/L/R)
Position angle: 14 degrees
General Specifications
Integrated ultrasonic speaker
Integrated PIR Motion Sensor
Integrated accelerometer
Integrated ambient light sensor
100 mm x 100 mm VESA FDMI
Internal cable retention and strain relief system
COMPATIBILITY AND CERTIFICATIONS
Logitech Tap IP is certified or compatible as a touch controller for video conferencing room solutions
- Microsoft Teams Rooms on Android on Logitech Rally Bar, Rally Bar Mini or RoomMate
- Zoom Rooms (any)
See www.logitech.com/support/tap-compatibility for the latest certification and compatibility updates.
Logitech CollabOS platform
Logitech Sync Remote Management
Power and Cables
Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device.*
*Requires PoE enabled network or PoE Injector and ethernet cable (Not included)
PORTS AND INTERFACES
Ethernet: 10/100 Mbps
WiFi: 802.11a/b/g/n/ac
Bluetooth 5.0
Environmental
Operating Temperature: 0 to 40°C
Stored Temperature: -40 to 70°C
Humidity: 10 to 95%
Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Key Protection: Arm TrustZone, RPMP
Device Security: Kensington Lock
Sustainability
Graphite plastics: 56% post-consumer recycled material
Certified carbon neutral
PACKAGE CONTENTS
Tap IP Touch Controller
Documentation
