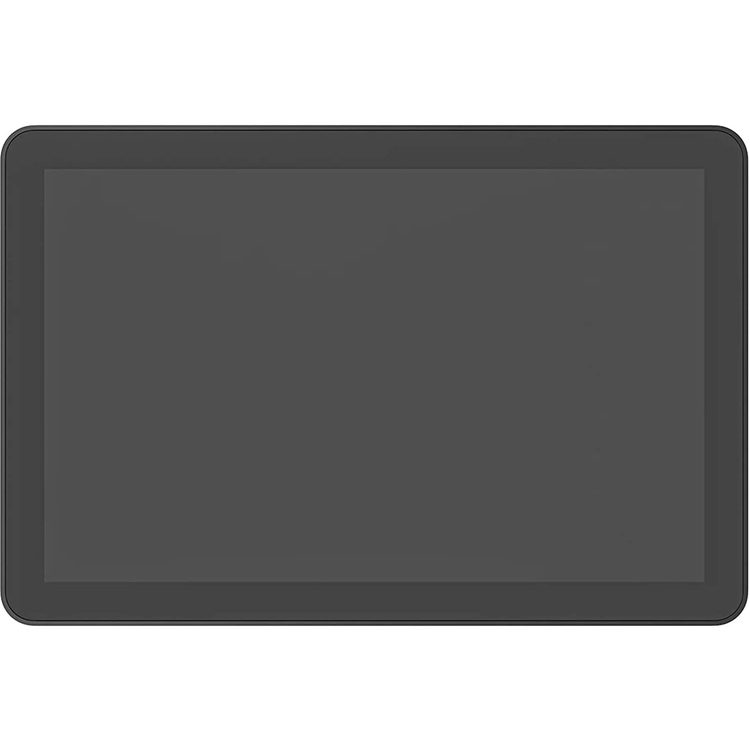

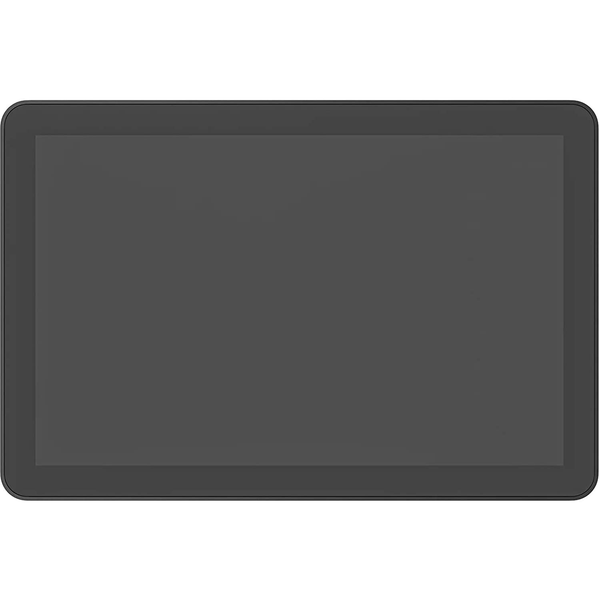

LOGITECH TAP SCHEDULER Purpose-built scheduling panel for meeting rooms
RIGHT PLACE, RIGHT TIME Tap Scheduler makes it easy to see meeting details and reserve a room for ad hoc or future meetings. Easily deploy as a purpose-built scheduling panel for leading room scheduling solutions to help workers find and claim the right space.
GREEN MEANS GO Quickly find an open room through colored LED lights that show availability at a distance.
CLEAN AND EASY INSTALL Included mounts and clean cabling help ensure a tidy and professional setup. GLASS MOUNTINGSecure Tap Scheduler while maintaining a clean look on both sides of the glass.
MULLION MOUNTINGSecure Tap Scheduler to a door or window frame for greater visibility using the included mount.
WALL MOUNTINGPlace and secure Tap Scheduler anywhere on a wall.
CABLE MANAGEMENTHide cables in the wall, mullion, or in other directions, with multiple routing options.
PURPOSE-BUILT AS A SCHEDULING PANEL Tap Scheduler was designed for easy viewing and usability, with a spacious screen and a sleek, unobtrusive profile. Count on Tap Scheduler for reliable performance with durable components that are built to last.
MAKE THE MOST OF YOUR SPACE Easily add Tap Scheduler to a variety of meeting rooms, from phone booths to video rooms to hangout nooks, helping employees quickly find the right meeting location. Simple installations and an intuitive user experience drive fast deployment and adoption.
PICK YOUR PLATFORM Enable a seamless meeting experience through Tap Scheduler and Logitech's suite of room solutions, which integrate with Microsoft Teams®, Zoom Rooms™, and other service providers to raise the bar on collaboration.
SIMPLE TO MANAGE WITH LOGITECH SYNC With Logitech Sync, you can monitor and manage Tap Scheduler along with your other meeting room devices from one single platform.
A CHOICE YOU'LL FEEL GOOD ABOUT Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change. Made With Recycled PlasticThe plastic parts in Tap Scheduler graphite include 54% certified post-consumer recycled plastic to give a second life to end-of-life plastic from old consumer electronics and help reduce our carbon footprint. Carbon NeutralTap Scheduler is certified carbon neutral. This means the carbon impact of the product and packaging has been reduced to zero due to Logitech's investment in carbon offsetting and removal projects.
- Device-only
- Height: 165 mm
- Width: 246.2 mm
- Depth: 28.5 mm
- Weight: 0.7 kg
- Surface-mounted
- Height: 165 mm
- Width: 246.2 mm
- Depth: 31.4 mm
- Mullion-mounted
- Height: 165 mm
- Width: 292.6 mm
- Depth: 44.5 mm
- Screen
- Size: 10.1" diagonal
- IPS (In-Plane Switching)
- LCD Panel with LED Backlighting
- Resolution: 1280 x 800 resolution
- Touch: Capacitive, 10 points multi-touch
- Brightness: 400 nits
- Contrast: 1000:1
- Anti Fingerprint: Oleophobic coating
- Viewing angle: 85 degrees (U/D/L/R)
- Position angle: 0 degrees (flat on mounting surface)
- General Specifications
- Integrated accelerometer
- Integrated ambient light sensor
- 100 mm x 100 mm VESA FDMI
- Cable exits: horizontal / vertical / center
- COMPATIBILITY AND CERTIFICATIONS
- Logitech Tap Scheduler integrates with leading room scheduling solutions as a
- - Microsoft Teams Panel
- - Zoom Rooms Scheduling Display
- - Robin-Powered scheduling panel
- - Appspace
- - RICOH Spaces
- - Meetio scheduling panel
- See www.logitech.com/support/tapscheduler-compatibility for the latest certification and compatibility information.
- Logitech CollabOS platform
- Logitech Sync Remote Management
- Power and Cables
- Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device.
- *Requires PoE enabled network or PoE Injector and ethernet cable (Not included)
- PORTS AND INTERFACES
- Ethernet: 10/100 Mbps
- WiFi: 802.11a/b/g/n/ac
- Bluetooth 5.0 (inactive, reserved for future use)
- Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70°C
- Humidity: 10-95%
- Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Key Protection: Arm TrustZone
- Sustainability
- Graphite plastics: 54% post-consumer recycled material
- Certified carbon neutral
- PACKAGE CONTENTS
- Logitech Tap Scheduler
- Multi-surface mount (glass/drywall)
- Corner mount accessory
- Mullion mount
- Mounting hardware
- Documentation
