Om-System

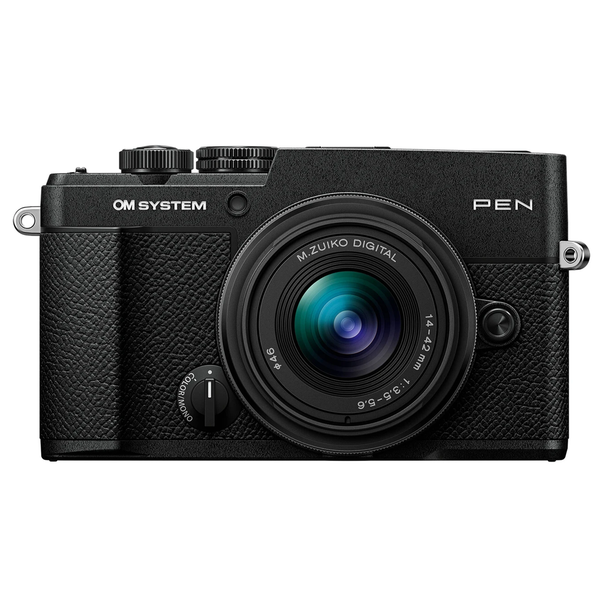

OM-SYSTEM PEN Mirrorless Camera with 14-42mm III Lens (Black)
View all Om-SystemSold by PB Tech
Description
OM-SYSTEM PEN Mirrorless Camera with 14-42mm III Lens (Black)
Specifications
- Lens mount
- Micro Four Thirds
- Type
- 4/3'' Live MOS sensor
- Effective pixels
- 20.4 Megapixels
- Full resolution
- 21.8 Megapixels
- Aspect ratio & area
- 4:3 / 17.3 x 13.0mm
- Filter array
- Primary colour filter (RGB)
- Dust reduction filter
- Supersonic Wave Filter
- Type
- OLED Electronic Viewfinder
- Pixel number
- 2.36M dots
- Magnification
- Approx. 1.10×-1.23× depending on Finder Style (-1m?¹, 50mm lens, infinity)
- Angle of view
- Approx. 100%
- Style
- 3 styles selectable
- Correction of color temperature
- +/- 3 levels
- Diopter adjustment
- Equipped -4.0 - +2.0 diopters / built-in type
- Eye point
- Approx. 20.5 mm (-1m?¹, from rear lens surface)
- Monitor type
- Vari-angle LCD - Touch Panel
- Resolution
- 1040K dots
- Monitor size
- 7.6cm / 3.0'' (3:2)
- Brightness adjustment
- +/- 7 levels
- Color balance
- Brightness ±7 levels / Colour temperature ±7 levels
- Touch Control functions
- AF area enlargement, AF area selection, AF targeting pad, Art Filter, Face/Subject selection, Frame forward/backward, Live Guide, Magnified playback, Menu control, Movie Controls, Profile mode controls, Scene Modes, Shutter release, Super Control Panel, Wi-Fi connection
- Detection
- 2-axis
- Display
- Rear display and viewfinder
- Magnification levels
- 3 / 5 / 7 / 10 / 14x
- Live ND
- Available (ND2 / 4 / 8 / 16)
- S/M mode only; flash unavailable; ISO up to 800; max shutter speed 1/30 sec. at ND2, decreasing with higher ND steps
- Type
- Sensor shift
- Modes
- S-IS AUTO, S-IS1, S-IS2, S-IS3, OFF
- Lens IS priority
- Available
- Live View stabilisation
- Available
- Effective Compensation Range
- Center 5.5 steps / Corner 4.5 steps
- Up to 5.5 EV steps
- Note
- * With M.Zuiko Digital 14-42mm F3.5-5.6 III at 42mm (84mm equiv.); yaw/pitch/roll; CIPA 2024 standard
- Method
- High-speed imager AF; imager phase detection AF + imager contrast AF
- Face Detection extension
- Face / Eye detection AF available in Video recording mode only
- Manual focus
- Available, with enlarged focusing area, focus peaking and focus indicator
- Focus areas
- 121 points * /
- 121 points contrast AF
- All target, single target (normal / small), group target (5-area / 9-area / 25-area), custom target 1-4 (AF area and its increment steps selectable)
- AF illuminator
- Equipped
- AF targeting pad
- Available
- AF working range
- -3.5 EV to 20 EV (ISO approx. 100, F2.8 lens)
- Focus limit
- Available; up to 3 distance settings can be saved
- AF tracking
- Available (C-AF+TR / C-AF+TR+MF)
- C-AF tracking sensitivity
- 5 steps
- C-AF Center Priority
- Available
- Number of images
- 3 - 999 shots
- Step size
- 10 levels
- Modes
- S-AF, S-AF+MF, C-AF, C-AF+MF, MF, C-AF+TR, C-AF+TR+MF, Preset MF, Starry Sky AF, Starry Sky AF+MF, Super spot AF
- Back light effect
- On / Off
- Color selection
- White, black, red, yellow
- Intensity
- High / Normal / Low
- Technology
- Available
- Compatible Lenses
- 100-400mm F5.0-6.3 IS, 12-100mm F4 IS PRO, 12-40mm F2.8 PRO, 12-40mm F2.8 PRO II, 12-45mm F4 PRO, 150-400mm F4.5 TC1.25x IS PRO, 300mm F4 PRO, 30mm F3.5 Macro, 40-150mm F2.8 PRO 40-150mm F4.0 PRO, 60mm F2.8 Macro, 7-14mm F2.8 PRO, 8-25mm F4 PRO, 8mm F1.8 Fisheye PRO, M.Zuiko Digital ED 100-400mm F5.0-6.3 IS II, M.Zuiko Digital ED 90mm F3.5 Macro IS PRO, 14-42mm F3.5-5.6 III, M.Zuiko Digital ED 150-600mm F5.0-6.3 IS, M.Zuiko Digital ED 50-200mm F2.8 IS PRO
- Compatible Converter
- 1.4x Teleconverter MC-14, 2x Teleconverter MC-20
- Note
- Angle of view becomes slightly smaller
- Modes
- Aperture priority, Art Filter, AUTO, Bulb (Live Bulb, Live Time, Live Composite), Custom, Manual, Programme automatic, Scene select, Shutter priority
- Exposure compensation
- +/- 5 EV ( 1, 1/2, 1/3 steps )
- Note: Monitor and EVF displays only up to ±3 EV.
- Exposure bracketing
- 3/5 frames (2.0 or 3.0 EV)
- 7 frames (2.0 EV)
- ISO bracketing
- 3 frames ( 1/3, 1/2, 1 EV steps )
- HDR bracketing
- 3 / 5 frames ( +/- 2 / 3 EV steps )
- 7 frames ( +/- 2 EV steps )
- AE lock
- Available
- Flicker Scan
- Available
- Max. number of frames
- 2 frames (shooting)
- Auto gain control
- Available
- Method
- TTL image sensor metering
- Zones
- 324 zones Multi-pattern Sensing System
- Detection range
- -2 - 20 EV (f2.8, ISO 100)
- Modes
- Centre weighted metering, ESP light metering, Highlight, Shadow, Spot metering
- Modes
- Bleach Bypass, Cross Process, Diorama, Dramatic Tone, Gentle Sepia, Grainy Film, Instant Film, Key Line, Light Tone, Pale & Light Color, Partial Color, Pin Hole, Pop Art, Soft Focus, Vintage, Water Color
- Variation / Effect
- Art Filter Fine Tune available for Pop Art, Soft Focus, Pin Hole, Cross Process, Instant Film
- Note
- * 18 colours selectable
- Monochrome Profile Control
- 8 color filters with 3 levels; shading effect 11 steps (-5 to +5); Film Grain Off/Low/Med/High; monochrome color Normal/Sepia/Blue/Purple/Green; MONO1-MONO4 memories
- Color Profile Control
- Color Profile Control Saturation of 12 colors adjustable in 11 steps (-5 to +5); shading effect 11 steps (-5 to +5); COLOR1-COLOR4 memories; Highlight & Shadow settings can be stored
- Auto
- ISO LOW 64 - 6400
- Manual
- ISO LOW approx. 64 / approx. 100; ISO 200-25600
- AUTO WB system
- Auto WB
- White balance bracketing
- 3 frames; A-B / G-M axis; 2 / 4 / 6 steps
- Custom WB
- Custom WB (Kelvin setting)
- Manual White balance (One-Touch)
- Available
- One-touch white balance
- 4 custom settings can be registered
- Preset values
- 7
- Speed
- Approx. 5fps (selectable 1-5fps)
- Max. number of frames: RAW 29 / JPG (LF): 154
- Speed
- Approx. 4.8fps (selectable 1-5fps)
- Speed*
- Approx. 30fps (selectable 15, 20, 30fps)
- **Compatible lenses are limited.
- ***Focus and exposure are fixed at first frame
- Speed (H)
- Approx. 30fps
- Speed (L)
- Approx. 8fps
- Speed (H)
- Approx. 30fps
- Max. number of frames: RAW 20 / JPG (LF): 20
- Speed (L)
- Approx. 8fps
- Max. number of frames: RAW 23 / JPG (LF): 48
- Conditions
- SanDisk SDSDXWH-064G-JNJIP (UHS-I U3 Class10 64GB)
- When using the M.Zuiko Digital ED 12-40mm F2.8 PRO II
- Low ISO processing: Priority is given to sequential shooting
- Art Filter bracketing
- Available
- Color space
- sRGB / AdobeRGB
- Fisheye compensation
- Available; 3 styles with M.Zuiko Digital ED 8mm F1.8 Fisheye PRO
- Gradation
- Auto / Normal / High Key / Low Key
- Black & White filter
- Yellow, Orange, Red, Green
- Black & White toning
- Normal / Sepia / Blue / Purple / Green
- Picture mode
- Art Filter, Colour Creator, Colour Profile Control, Custom, Monochrome Profile Control, Monotone, Natural, Portrait, Underwater, Vivid, Flat, e-Portrait
- Engine
- TruePic™ IX
- Tele converter effect
- 2x
- X-sync speed
- 1/250 sec.; electronic shutter: 1/50 sec. up to ISO 6400, 1/20 sec. ISO 8000+ / ISO bracketing
- Intensity
- +/- 3 EV ( 1/3, 1/2, 1 EV steps )
- Available
- Available
- JPEG
- Applied
- RAW
- 12bit
- RAW & JPEG
- Applied parallel recording
- Aspect ratio
- 4:3 / 3:2 / 16:9 / 6:6 / 3:4
- DCF
- 2.0
- EXIF
- 3.0
- RAW
- Applied
- RAW
- 5184 x 3888 compressed
- JPEG
- 5184 × 3888 to 1024 × 768
- Recording format
- MOV(MPEG-4AVC/H.264)
- Picture mode
- Flat, OM-Log400, OM-Cinema1, OM-Cinema2
- Time code
- Rec run / Free run
- Drop frame / Non-drop frame
- ALL-I: FHD 30p/25p/24p approx. 202 Mbps (48kHz/16bit) or approx. 205 Mbps (96kHz/24bit)
- FullHD IPB /LongGOP FHD 30p/25p/24p approx. 30/33 Mbps; 60p/50p approx. 52/55 Mbps depending on audio
- Image Stabilisation Mode
- M-IS1, M-IS2, OFF
- 4K Movie quality
- 4096×2160 (C4K) / 24p approx. 237/240 Mbps
- 3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps)
- HD Movie quality
- Full HD 1920 × 1080 30p/25p/24p ALL-I or LongGOP; 60p/50p LongGOP
- Art Filter
- Available
- Fast motion
- S&Q Movie available
- Flicker Scan
- Available
- Monitor mode
- Live View Output via HDMI: Monitor mode / Record mode
- Record mode
- 4K/C4K cannot be set; movie quality can be YCbCr 4:2:2 8-bit
- High-Speed Recording
- S&Q capture up to 120 fps
- Time lapse
- 4K / FHD: 5 / 10 / 15 / 30 fps
- Slow motion
- Available
- Speaker
- Built-in mono speaker
- Image footage
- 30s
- Functions
- Wind noise reduction / Recording volume / Microphone volume limiter
- Internal microphone
- Built-in stereo microphones
- Microphone functions
- Recording Volume, Volume limiter, Wind Noise Reduction
- Modes
- Calendar, Enlargement, Index, Movie, Single-frame
- Shooting information
- Off / On
- Highlight/Shadow point warning
- Available
- Histogram in playback mode
- Available
- Auto rotation
- Available
- Editing functions
- Aspect ratio, Correction of saturation, e-Portrait, Gradation auto, Image Overlay, Monochrome, Post recording, RAW data edit, Red-eye reduction, Resize, Sepia, Trimming
- In-movie image extraction
- Available (4K only)
- Trimming
- Available
- Programmable button
- Equipped
- Fn Button
- Equipped
- My Mode
- 5 settings storable (Can be set to mode dial.)
- Factory reset
- Full / Basic
- Menu languages in camera
- Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Serbian, Slovenian, Spanish, Swedish, Turkish, Ukrainian
- Hot shoe
- Equipped
- HDMI™
- Micro HDMI (Type D)
- Microphone jack
- 3.5 ø mm mini-jack (plug-in power on/off)
- USB 2.0 High Speed
- Applied
- USB 3
- Type C
- Wireless connectivity
- Bluetooth®, Wi-Fi
- Communication method
- Bluetooth® Low Energy Ver.5.2
- Media
- SD / SDHC (UHS-I) / SDXC (UHS-I)
- Note
- "HDMI", the HDMI logo and "High-Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC.
- The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by OLYMPUS CORPORATION is under license.
- Wi-Fi is a registered trademark of the Wi-Fi Alliance.
- Easy Connection
- QR code setting
- GPS info
- Available through Smartphone GPS data
- Image Share
- Available; marking function for image share
- Simple Image Transfer (Power-Off Standby)
- Images can be automatically imported using image-share marking / remotely viewed while camera power is off; activated via Bluetooth and imported via Wi-Fi
- Wireless Release Remote Control
- Wireless release (half/full press), movie start/stop
- Wireless Shooting
- Available (Live View remote control)
- Battery life
- Image shooting
- EVF approx. 410 shots / LCD approx. 410 shots (CIPA)
- Movie recording
- Approx. 80 min CIPA; approx. 130 min when zoom and other operational functions are not used
- Battery
- BLS-7 Li-ion battery
- Sleep mode
- 1, 3, 5min. and off selectable.
- USB charging
- Built-in battery can be charged with USB (when camera power is off)
- Width
- 125.8mm
- Depth
- 43.3mm
- Height
- 74.5mm
- Weight
- 393g (including battery and memory card)
- Weight (body only)
- 344g (body only)
- Humidity
- 30 - 90% operation humidity / 10 - 90% storage humidity
- Temperature
- -10 - 40°C Operating temperature / -20 - 60°C storage temperature
