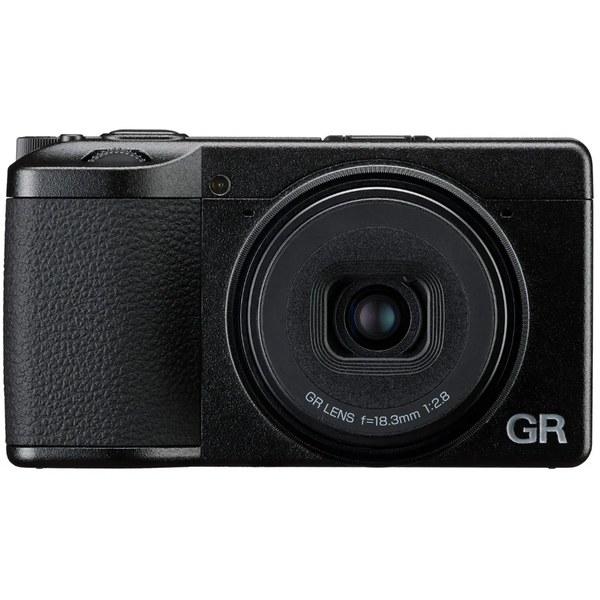

Ricoh GR IV HDF Edition Camera - Black

Ricoh GR IV HDF Edition Camera - Black

- High-end compact digital camera with a highlight diffusion filter (HDF) for soft, smooth rendering and more emotional and impressive expressions.
- High image quality by GR LENS 18.3mm f/2.8
- Back-illuminated 25.7M APS-C sensor with “GR ENGINE 7” processing engine for high sensitivity up to ISO 204800 and low noise
- Five-axis IBIS Shake Reduction mechanism
- "Image Control" function 12 existing effect modes
- Creating individual recepies for you own image characteristics based on the Highlight diffusion filter
RICOH GR IV HDF
To further enhance the essential values of the GR series, the GR IV has been equipped with a number of newly developed key components, including the lens, image sensor and image processing processor.
It features a newly developed APS-C image sensor and a newly designed lens to improve image quality while reducing the body size – a concept of the GR series that was already implemented in the previous model, the RICOH GR III.

The new model, the GR IV HDF, inherits the basic advantages of the base model, such as exceptional image quality, responsiveness and mobility, and also features RICOH's HDF (Highlight Diffusion Filter), which allows users to instantly and easily capture soft, gentle images with diffused highlights in addition to the clear, sharply focused images for which the base model is known.
This creative versatility expands the boundaries of visual expression in snapshot photography.
HDF makes the difference
Exclusive to the GR IV HDF, the Highlight Diffusion Filter (HDF) instantly transforms the look of your images. By softening highlights and creating a delicate, cinematic look, this filter offers an expressive alternative to the traditional ultra-sharp look, which can be activated or deactivated with a simple press of the Fn button.
Ricoh's proprietary inkjet printing technology (multi-drop technology) made it possible to integrate the into the the shutter unit.
There are 2 effects as follows:
- A: The white in the highlight area is more diffused to emphasize the light source
- B: Reduce the contrast of the entire image (sharpness effect is about -2 to -3)


Emphasizing light creates a softer depiction, enabling emotional photographic expression reminiscent of film photography or cinema. It is well-suited for constructing narratives, making it ideal for photography that tells a story through multiple images rather than relying on a single eye-catching, impactful shot. Flashy filters have limited uses and quickly get bored; this filter effect is adjusted for long-term use across various everyday scenes.

High-visibility LCD screen, Total control
The high-resolution 3-inch LCD screen offers excellent readability, even in bright sunlight, thanks to its air gap-free construction and automatic brightness adjustment. It allows you to frame, view, and adjust your images with precision, whatever the shooting conditions.
Smart connectivity, Simplified workflow
With dual Bluetooth® and Wi-Fi connectivity and the new GR WORLD app, the GR IV HDF integrates seamlessly into your workflow. Transfer your images instantly, shoot remotely, and manage your shots directly from your smartphone.
New-generation APS-C sensor, Rich, natural images
The RICOH GR IV HDF is equipped with a newly developed back-illuminated APS-C sensor with approximately 25.7 megapixels, offering exceptional detail, color, and nuance reproduction. Combined with advanced noise management, it guarantees remarkable image quality, even in low light, while maintaining the natural rendering that is emblematic of the GR series.
GR ENGINE 7 processor, Power and responsiveness
The new GR ENGINE 7 processor ensures fast and accurate image processing, enabling subtle gradations, a wide dynamic range, and excellent high-sensitivity performance. This power also translates into increased responsiveness, ideal for capturing the decisive moment without compromise.
GR 18.3 mm F2.8 Lens, Precision from Center to Edge
The newly designed GR lens combines a 28 mm equivalent focal length with an F2.8 aperture, offering the perfect balance between versatility and creativity. Its advanced optical construction, consisting of 7 elements in 5 groups, ensures exceptional sharpness across the entire image, while effectively reducing distortion and chromatic aberrations.

New Electronic Shutter Function
GRIV HDF uses an electronic shutter for the faster shutter release.
This allows you to use the shutter speed up to 1/16000s while keeping the aperture wide open
It can shoot with appropriate exposure even in bright environments such as sandy beaches in the middle of summer, and HDF can also be used in the same environment to expand the opportunity for shooting
New function can be selected in the Shooting Settings
Electronic Shutter:
At F2.8: 1/3200 sec - 1/16000 sec
At 5.6-F16: 1/5000 sec - 1/16000 sec
Lower environmental impact.
Sustainability is an important issue for us. That is why we use environmentally friendly packaging materials.
New image angles
The crop setting provides image angles equivalent to 35 mm and 50 mm focal lengths. In addition, a focal length of 21 mm (35 mm equivalent) can be achieved with the optional GW-4 wide-angle conversion lens. This requires the optional GA-3 adapter, which also allows the use of 49 mm filters.

Camera Type
Single lens - compact digital-still camera
LENS
Construction
7 elements in 5 groups (3 aspherical lens elements)
Focal Length
18.3 mm (approx. 28 mm in 35 mm equivalent focal length)
Aperture
F2.8 to F16
Crop
Off, 35mm, 50mm
IMAGE CAPTURE UNIT
Image Sensor
Primary color filter, CMOS. Size: 23.3 mm × 15.5 mm
Effective Pixels
Approx. 25.74 megapixels
Sensitivity (Stand. output)
ISO 100 to ISO 204800. Auto (ISO Auto Lower/ Upper Limit and Minimum Shutter Speed can be set), Manual
Noise Reduction
Slow Shutter Speed Noise Reduction, High-ISO Noise Reduction
Image Stabilization
IBIS - Sensor-shift shake reduction “SR” (5-axis)
AA Filter Simulator
Moiré reduction using the SR unit (Off, Low, High)
Dust Removal
Image sensor cleaning using ultrasonic vibrations “DR II”
Horizon Correction
SR On: Correction up to 1 degree. SR Off: Correction up to 1.5 degrees
WHITE BALANCE
Pre-sets
Auto White Balance, Auto WB (Warmth Pri.), Auto WB (White Pri.), Daylight, Shade, Cloudy, Fl. - Daylight Color, Fl. - Daylight White, Fl. - Cool White, Fl. - Warm White, Tungsten, CTE, Manual White Balance, Color Temperature, Custom 1, Custom 2, Custom 3
Fine Adjustment
Adjustable ±14 steps on A-B axis or G-M axis
FILE FORMATS
Still Image
RAW (DNG) 14bit, JPEG (Exif 2.3 compliant), DCF 2.0 compliant. Color Space: sRGB, AdobeRGB. Recorded Pixels: [3:2] L (26M: 6192 × 4128), M (16M: 4944 × 3296), S (8.2M: 3504 × 2336), XS (2.5M: 1920 × 1280). [4:3] L (23M: 5504 × 4128), M (15M: 4400 × 3296), S (7.3M: 3120 × 2336), XS (2.8M: 1920 × 1440). [1:1] L (17M: 4128 × 4128), M (11M: 3296 × 3296), S (5.5M: 2336 × 2336), XS (1.6M: 1280 × 1280). [16:9] L (22M: 6192 × 3480), M (14M: 4944 × 2784), S (6.9M: 3504 × 1968), XS (2.1M: 1920 × 1080)
Movie
MPEG4 AVC/H.264 (MOV). Recorded Pixels: Full HD (1920 × 1080, 60p/30p/24p). Sound Recording: Built-in stereo microphone. Recording Time: Up to 4 GB or 25 minutes; automatically stops recording if the internal temperature of the camera becomes high
Storage Media
Internal memory (approx. 53 GB), microSD/microSDHC/ microSDXC memory card (microSDHC memory card and microSDXC memory card conform to UHS-I standards)
IMAGE STORAGE CAPACITY (Internal memory)
JPEG - L
3:2 - 26M: 6192 x 4128 px - 3,498
JPEG - XS
3:2 - 2.5M: 1920 x 1280 px - 33,371
RAW
3:2 - 26M: 6192 x 4128 px - 995
RAW+
3:2 - 26M: 6192 x 4128 px - 774
Full HD
16:9 - 30fps - 1920 x 1080 - 1:26'56"
FOCUS
Type
Hybrid AF (image plane phase-matching detection and contrast detection)
Focus Mode
Auto-area AF, Select AF, Pinpoint AF, Tracking AF, Continuous AF, MF, Snap (0.3 m, 1 m, 1.5 m, 2 m, 2.5 m, 3.5 m, 5 m, 8), 8
Focus Range (from lens face)
Normal mode: Approx. 0.1 m to 88. Macro mode: Approx. 0.06 to 0.15 m
Focus Limiter
Near Side, Far Side
Full Press Snap
Shooting by focusing at the Snap distance with a single press of the shutter release button or a touch on the monitor
Face/Eye Detection
On, Use only in Auto-area AF, Off
EXPOSURE CONTROL
Exposure Mode
Program AE, Aperture Priority AE, Shutter Priority, AE, Snap Distance Priority AE, Manual Exposure
Metering Mode
Multi-segment metering, Center-weighted metering, Spot metering, Highlight-weighted metering
Shutter Speed
1/4000 to 30 sec. (limit by aperture — F2.8: up to 1/2500 sec., F5.6 or higher: up to 1/4000 sec.), 1/16.000 second, high-speed electronic shutter, Timed exposure (10 sec. to 20 min.), Bulb, Time
Exposure Compensation
Still image: ±5 EV, 1/3 EV steps. Movie: ±2 EV, 1/3 EV steps
HDF Filter
On, Off
FLASH
Flash
no internal flash
Hot shoe
Compatible with dedicated flashes Flash Mode: Flash On, Flash On+Red-eye, Slow-speed Sync, Slow Sync+Red-eye. Flash Output: Auto, 1/1, 1/4
Flash Sync
All shutter speed values
DRIVE MODE
Drive
Single Frame Shooting, Continuous Shooting, Bracketing, Multi-exposure, Interval Shooting, Interval Composite
Self-timer
10 sec., 2 sec., Off
SHOOTING FUNCTIONS
Image Control
Standard, Vivid, Monotone, Soft Monotone, Hard Monotone, Hi-Contrast B&W, Negative Film, Positive Film, Cinema (Yellow), Cinema (Green), Cross Processing, Bleach Bypass, Retro, HDR Tone, Custom 1, Custom 2, Custom 3. Adjustment parameters: Saturation, Hue, High/Low Key Adjustment, Contrast, Contrast (Highlight), Contrast (Shadow), Sharpness, Shading, Clarity, Toning, Filter Effect, Grain Effect, HDR Tone Level, Color Tone. * Adjustable parameters vary depending on the selected image setting.
Dynamic Range Correction
Highlight Correction, Shadow Correction
PLAYBACK FUNCTIONS
Playback View
Single image display, Multi-image display (20 images, 48 images), Display magnification (up to 16×; 100% view and Quick Zoom view available), Histogram (Y histogram, RGB histogram), Grid Guide (3×3 Grid, 4×4 Grid), Highlight Alert, Auto Image Rotation, Calendar Filmstrip Display
Base Parameter Adjustment
Normal editing, Monotone editing. Adjustment parameters: Brightness, Saturation, Filter Effect, Hue, Toning, Contrast, Sharpness. * Adjustable parameters vary depending on the selected edit setting.
RAW Development
JPEG Recorded Pixels, Aspect Ratio, Color Space, White Balance, Image Control, Peripheral Illumination Correction, Sensitivity, High-ISO Noise Reduction, Shadow Correction
Edit
Delete, Protect, Image Rotation, Image Copy, File Transfer, Resize, Cropping (aspect ratio and slant adjustments available), Levels Adjustment, White Balance Adjustment, Color Moiré Correction, Movie Edit (Cut, Divide)
LCD MONITOR
Type
3.0-inch wide viewing angle TFT color LCD (aspect ratio: 3:2) with air-gapless tempered glass. Approx. 1037K dots
Touch Screen
Capacitive sensing type
Adjustments
Brightness, Saturation, Blue/Amber, Green/Magenta, Outdoor View Setting (Auto, Manual (±2 steps))
Display
Display magnification (4×, 16×), Grid Guide (3×3 Grid, 4×4 Grid), Histogram, Highlight Alert, Electronic Level
Language
English, French, German, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Thai, Korean, Traditional Chinese, Simplified Chinese, Japanese
WIRELESS LAN COMMUNICATION
Function
Camera control via smartphone ‘GR World’ app for image organisation and control of camera functions (including Live View, exposure time, etc.), image transfer via Wi-Fi
Standards
2.4 GHz: IEEE802.11 b/g/n/ax. 5.2 GHz: IEEE802.11 a/n/ac/ax (not available in some regions). 5.8 GHz: IEEE802.11 a/n/ac/ax (not available in some regions)
Operating Frequency Band Range
2.4 GHz: 2400 to 2483.5 MHz. 5.2 GHz: 5150 to 5250 MHz (not available in some regions). 5.8 GHz: 5725 to 5850 MHz (not available in some regions)
Bandwidth
2.4 GHz: 20 MHz. 5.2 GHz: 20/40/80 MHz. 5.8 GHz: 20/40/80 MHz
Security
Authentication: WPA2™, WPA3™. Encryption: AES
BLUETOOTH® COMMUNICATION
Standards
Bluetooth® v5.3 (Bluetooth Low Energy)
Operating Frequency Band Range
2400 to 2483.5 MHz
INTERFACES
USB Type-C
Battery recharge/Power supply (when using an optional AC adapter compatible with USB Power Delivery), Data transfer (MTP), Video output (DisplayPort™ over USB-C (DisplayPort Alternative Mode))
Lens Adapter Pin
Available
POWER SUPPLY
Battery Type
Rechargeable Battery DB-120
Nominal Voltage
3.85 V
Rated Capacity
1800 mAh, 6.93 Wh
Dimensions
40.9 mm (W) × 35.4 mm (H) × 10.75 mm (D). (1.6 in. (W) × 1.4 in. (H) × 0.4 in. (D))
Weight
Approx. 33 g (1.2 oz)
Battery Life
Number of recordable images: Approx. 250 images • This is according to the result of testing in compliance with CIPA standard using a fully charged rechargeable battery at a temperature of 23°C (73°F). Actual results may vary depending on the shooting conditions/circumstances. Playback time: Approx. 240 min. • This is according to the result of RICOH inhouse testing. Actual results may vary depending on the shooting conditions/circumstances.
AC Adapter
AC adapter (D-AC166 optional). AC adapter compatible with USB Power Delivery. *The camera is compatible with USB Power Delivery, but is not certified with the USB Implementers Forum logo.
DIMENSIONS AND WEIGHT
Dimensions
Approx. 109.4 mm (W) × 61.1 mm (H) × 32.7 mm (D) (4.3 in. (W) × 2.4 in. (H) × 1.3 in. (D)). Lens part:31.3(D)mm, Body part:24.5(D)mm (excluding operating controls and protrusions)
Weight
Approx. 262 g (9.2 oz) (including the dedicated battery and SD memory card). Approx. 228 g (8 oz) (body only)
OPERATING ENVIRONMENT
Windows®
Windows® 11, Windows® 10
Mac
macOS 14 Sonoma, macOS 13 Ventura, macOS 12 Monterey, macOS 11 Big Sur
DEDICATED APP
GR WORLD
“GR WORLD” supports iOS and Android™, and can be downloaded from the App Store or Google Play™. To download GR WORLD and for more information, refer to the following website: https:
