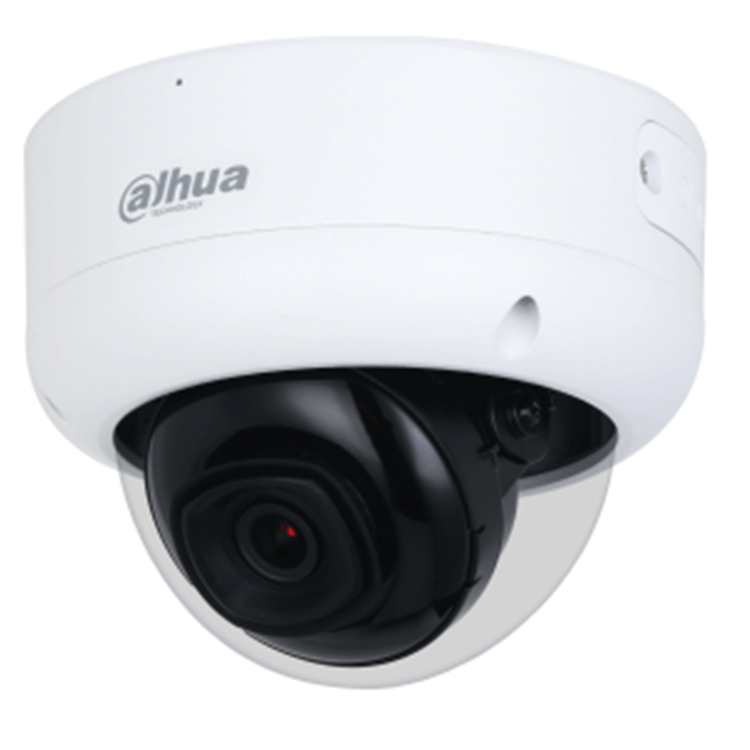

Dahua WizSense IPC-HDBW3666RP-ZAS (2.7-13.5mm) 6MP/3K Vari-Focal Outdoor Dome PoE Camera
6MP IR Fixed-focal Dome WizSense Network Camera
- 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 6 MP (3072 × 2048) @ 25/30 fps
- H.265 codec allows high compression ratio and ultra-low bit rate.
- Built-in IR LED, max. IR distance: 30 m.
- ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67, IK10 protection.
- SMD 4.0, AI SSA
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
3072 (H) × 2048 (V)
ROM
128 MB
RAM
1 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.005 lux @ F1.4 (Color, 30 IRE)
0.0005 lux @ F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
30 m (98.43 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
3 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm;
Max. 2Aperture
F1.4
Field of View
2.8 mm: Horizontal: 111°; Vertical: 58°; Diagonal: 132°
3.6 mm: Horizontal: 92°; Vertical: 45°; Diagonal: 110°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (18.37 ft)
DORI Distance
Lens 2.8 mm; Detect 63.6 m(208.66 ft); Observe 25.4 m(83.33 ft); Recognize 12.7 m(41.67 ft); Identify 6.4 m(21.00 ft)
Lens 3.6 mm; Detect 85.4 m (280.18 ft); Observe 34.2 m (112.20 ft); Recognize 17.1 m(56.10 ft); Identify 8.5 m(27.89 ft)
Intelligence
IVS (Perimeter Protection)
Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA
Yes
Quick Pick
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+
Smart H.264+
AI Coding
AI H.265
AI H.264
Video Frame Rate
Main stream: 3072 × 2048 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/
704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability
3 streams
Resolution
6M(3072 x 2048); 5M (2592 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
Scene Self-adaptation (SSA)
Yes
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Defog
Yes
AFSA
Yes
Image Rotation
0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
Mirror
Yes
Privacy Masking
4 areas
Audio
Built-in MIC
Yes
Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event
- AS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception
-S: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE:IE11
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
iOS; Android
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input
1 channel (RCA port) (Only - AS supports)
Audio Output
1 channel (RCA port) (Only - AS supports)
Alarm Input
1 channel in: 5 mA 3–5 VDC (Only - AS supports)
Alarm Output
1 channel out: 300 mA 12 VDC (Only - AS supports)
Power
Power Supply
12 VDC/PoE (802.3af)
Power Consumption
Basic: 4 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 8.5 W (12 VDC); 9.7 W (PoE)
Environment
Operating Temperature
–40°C to +60°C (–40°F to 140°F) /Less than 95% RH
Storage Temperature
–40°C to +60°C (–40°F to 140°F)
Protection
IP67; IK10
Structure
Casing
Metal
Product Dimensions
89.1 mm × F111.7 mm (3.50" × F4.40")
Net Weight
516 g (1.14 lb)
Gross Weight
670 g (1.48 lb)
