Grow your smart home with elevated connectivity

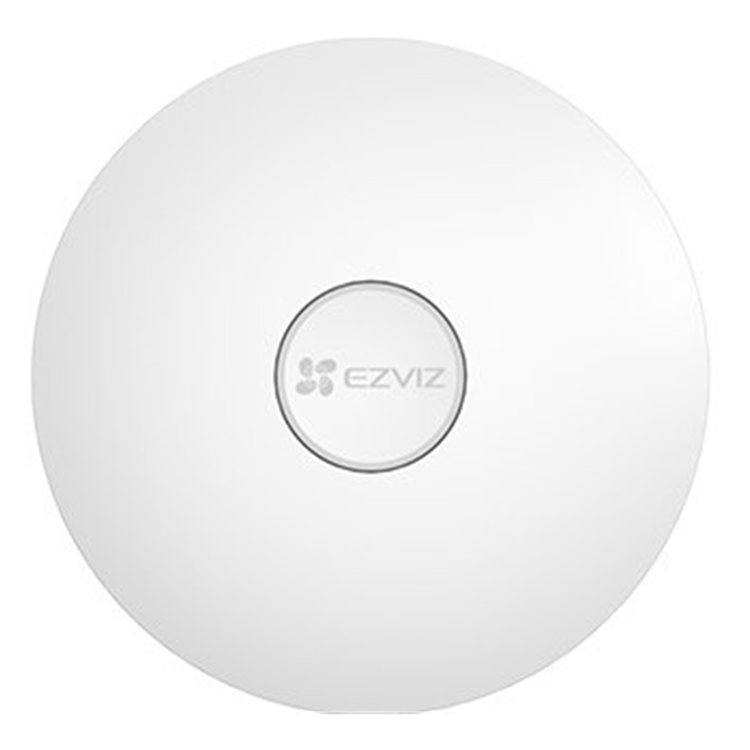

The A3-R200 is EZVIZ’s first Matter-compatible and HomeKit-supported home hub. It interconnects home devices and allows seamless integration across platforms, making your smart home run smoothly with automated, intuitive controls. It’s a small device that unlocks the large potential of smart living.
A unified hub for various devices
The A3-R200 works with a wide variety of EZVIZ products, and the list keeps growing as EZVIZ expands its product family. It can connect with up to 64 devices², so even large smart homes with complicated systems can function in a harmonious and efficient manner.
Customize systems with simple controls
With the A3-R200, you can seamlessly add, control, and even personalize your EZVIZ home sensor system. Enjoy unparalleled convenience by managing the connected devices right from your smartphone.
Interlinked security for enhanced protection
Your EZVIZ sensors and cameras can now work jointly to optimize home safety, thanks to the automation function offered by the A3-R200. When the sensor detects an activity, the linked EZVIZ camera³ will automatically rotate to capture a snapshot, so you keep a record of what's going on.
Ease your daily routines with Apple HomeKit
With the A3-R200, your EZVIZ sensors¹ now for the first time communicate and interoperate with smart-home appliances using Apple Home. You can check out their status and set up automated actions on your Apple devices.
Unlock wider smartness with Matter
The A3-R200 is ready to go far beyond to build your dream smart home. You will be able to connect EZVIZ smart devices¹ with other Matter-compatible products, so as to create unified, secure and stable smart experience.
Easy setup for your convenience
The A3-R200 finds its place on basically any spot with its sleek design and compact size. Whether you opt for a wired Internet connection or the convenience of Wi-Fi, the A3-R200 guarantees a stable performance.
Upgraded sound alerts
This gateway creates a truly tailored smart experience with a diverse selection of 20 distinct sound options. The voice volume is also enhanced to 85dB, so that you hear notifications loud and clear.
General
Interface
Type-C
Power Supply
Uses Type-C USB Cord,DC 5V / 1A
Power Consumption
Max.3W
Maximum Incoming Devices Quantity
Up to 64 ZigBee devices (including at least 3 electronic devices)
Wired Network
1*RJ45 (10M/100M Adaptive)
Speaker
0.8W 8O
Button
Main Button,Reset Button (Pinhole)
Operation Conditions
10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing)
Dimensions
f 80.0 × 33.0 mm (f 3.15 × 1.30 inch)
Package Size
102.0 x 107.0 x 91.0 mm (4.0 × 4.2 x 3.6 inch)
Net Weight
90 g (3.2 oz)
Network
Ecosystem
HomeKit/Matter
Communication Methods
RJ45 interface network cable Wi-Fi 2.4 GHz ZigBee 3.0 Bluetooth 5.3
Communication Distance
Wi-Fi (2.4 GHz) < 200 m ZigBee 3.0 < 200 m (Tested in open environment)
Antenna
Built-in
Wi-Fi Standard & Frequency Range
IEEE 802.11b/g/n/ax
Security
WPA-PSK/WPA2-PSK
Channel Bandwidth
20 MHZ
Wi-Fi Pairing
AP Pairing
Protocol & Interface Protocol
EZVIZ Cloud Proprietary Protocol
In the box
In the box
A3-R200 Home Gateway
Power Adapter
USB Cable
Regulatory Information
Quick Start Guide
