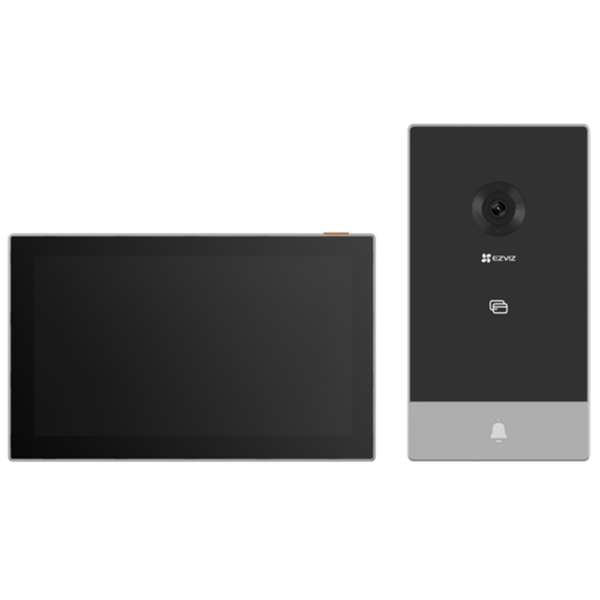

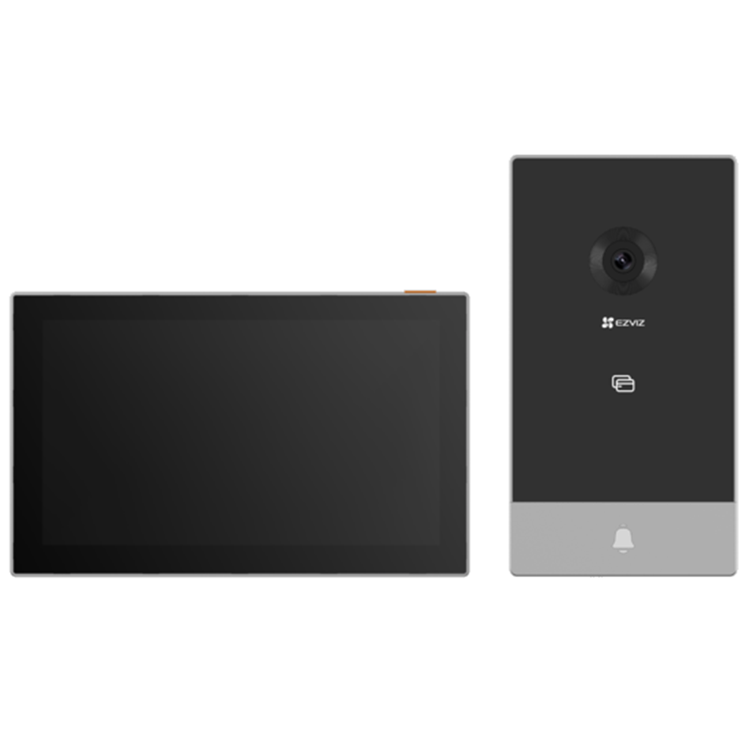

EZVIZ HP7 3MP/2K Outdoor Wired Video Intercom with 7" Touch Screen
- Image Sensor
- 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
- Lens
- 2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
- Day & Night
- IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
- Max. Resolution
- 2048 × 1296
- DNR
- 2D / 3D DNR
- Video Compression
- H.265 / H.264
- Frame Rate
- Max: 15fps; Self-Adaptive during network transmission
- Connection Method
- Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
- Transmission Distance
- F 2 x 0.75mm² , max. 50m F 2 x 1.5mm² , max. 100m Twisted pair, max. 120m
- Open the door (Gate)
- Support 2 wiring ports. 1-10m distance. The intercom panel provides a "dry"-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
- Unlock (Electric strike plate)
- Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.
- Door Open Methods
- 1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock
- Audio Input
- Built-in high-sensitivity microphone
- Audio Output
- Built-in high-power speaker
- Doorbell Button
- Yes. The light can be set on or off.
- Name Card
- Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off.
- Terminal
- Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
- Intelligent Alarm
- Smart human motion detection, Lingering Detection
- Tamper Alarm
- Supports
- Video Intercom
- Long-distance video two-way talk
- Operation Conditions
- -30°C to 60°C , Humidity 95% or less (non-condensing)
- IP Grade
- Waterproof, with shield cover
- Size
- 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)
- Display size
- 7" touch screen
- Resolution
- 1024 × 600
- Audio Input
- Built-in high-sensitivity microphone
- Audio Output
- Built-in high-power speaker
- Button
- Screen On / Off Button
- Terminal
- Two wiring ports to connect 1st outdoor doorbell.
- Supports
- microSD card up to 512 GB
- Supports
- EZVIZ Cloud storage
- Protocol
- EZVIZ Cloud Proprietary Protocol
- Interface Protocol
- EZVIZ Cloud Proprietary Protocol
- Protocol
- EZVIZ Connect Protocol
- Wi-Fi Standard
- IEEE802.11b, 802.11g, 802.11n, 802.11ac
- Frequency Range
- 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
- Channel Bandwidth
- Supports 20MHz
- Security
- 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
- Transmission Rate
- 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
- Multiple ringtones
- Up to 20 ringtones
- Functions
- Live view, playback, two-way talk, video call
- Operation Conditions
- -10°C to 45°C, humidity 95% or less (non-condensing)
- Weight
- Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz)
- Size
- 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
- Power Supply
- DC 24V / 1A power supply, adaptor (100- 240Vac)
- Power Consumption
- 8W, Max. 24W
- In the box
- - Monitor
- - Wall Bracket for Monitor
- - Power Adapter for Monitor
- - Drill Template for Monitor
- - Intercom Panel
- - Drill Template for Intercom Panel
- - Screwdriver
- - Badges (×3)
- - Screw Kit (×2)
- - Name Card (×2)
- - Wires and Wire Connectors
- - DC 24V Power Supply Jack Connector Cable
- - Regulatory Information (×2)
- - Quick Start Guide
