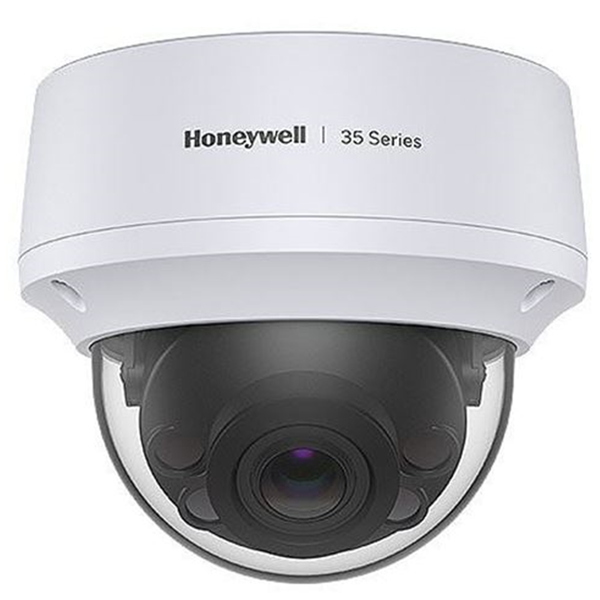

HONEYWELL 35 Series 5MP WDR IP Dome Camera
2.7-13.5mm Motorized Focus. Up to 40M IR. Rugged Outdoor IP66 Housing. IK10 Vandal Resistant PoE (IEEE 802.3af) or 12VDC. True WDR, 120dB Auto (ICR) / Colour
The NDAA-compliant 35 Series AI IP cameras deliver exceptional picture clarity from 3MP to 8MP in a wide range of form factors with excellent visibility in low light and a higher resolution IR camera to cover larger areas both day and night. These cost-effective cameras include built-in AI analytics features, like smart motion detection for humans and vehicles, to reduce false alarms with audio and alarm interfaces for local integration. The 35 Series offers flexible system integration, easy installation, and secure data transmission, making it ideal for small and medium-sized businesses, retail, offices, gaming, and other applications.
- Network camera - Helps achieve high-quality video results
- Up to 2592 x 1944 resolution for surveillance in real-time
- CMOS sensor consumes less power while producing better HD videos
- 13.50 mm maximum focal length
- f/1.6 maximum aperture
- 5 x optical zoom
- Up to 164.04ft of night vision
- Infrared night vision type
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
- DC power source type provides maximum energy feasibility and added surveillance productivity
OPERATIONAL
Video Standard
NTSC / PAL
Scanning System
Progressive
Image Sensor
1/2.8" CMOS
Sensor Size (H x V)
5.184 mm x 3.888 mm
Number Of Pixels (H x V)
2592 x 1944
Minimum Illumination (Color/BW)
0.005 Lux / F1.6 (Color, 30 IRE), 0 Lux / F1.6 (IR ON)
S/N Ratio
50 dB
Electronic Shutter Speed
1/8 ~ 1/32,000
IR Distance
up to 50 m
IR Light Control
Smart IR ( Auto / Manual ) / OFF
IR Light Number
4
Day/Night
Auto (ICR) / Color / BW
Backlight Compensation
WDR, BLC, HLC
White Balance
Auto/Tungsten/ Fluorescent/ Daylight/Shadow/Manual
Gain Control
0-100%
Wide Dynamic Range
120 dB
Noise Reduction
2D / 3D DNR
Lens
2.7-13.5 mm, DC-Iris,F1.6-F3.3, MFZ
Angle Of View
H:96°-26°, V:69°-20°
Privacy Masking
Off / On (4 Areas)
Defog
Supported
Local Storage
Micro SD (up to 256 GB)
Alarm Inputs/Outputs
1 In / 1 Out
Pan Range
0°-355°
Tilt Ran3ge
0°-75°
Rotation Range
0°-354°
VIDEO
Video Compression
H.265 HEVC/H.264/MJPEG, Smart Codec
Resolution
1st: 2592 x 1944 / 2592 x 1520 / 1920 x 1080 / 1280 x 720
2nd: 704 x 576 (PAL) / 704 x 480 (NTSC) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC)
3rd: 1920 x 1080 (MAX 12 fps) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC) / 320 x 240
Number of Video
Streams 3 (2 for encryption)
Frame Rate*
MAX 30 fps
Bit Rate*
HC35W45R2: 100K~12 Mbps
AUDIO
Audio Compression
G.711A / G.711U
Audio Stream
2-Way, Full duplex
Audio Interface
Line In/Out
NETWORK
Ethernet
10 Base-T/100 Base-TX Ethernet (RJ-45)
Supported Web Browsers
Chrome / Edge
Supported OS
Microsoft Windows 10
Protocols**
IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Interoperability
ONVIF Profile G/S/T
Maximum Users Access
10 Users
Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance
Languages Supported
Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish
EVENTS / ANALYTICS
Built-in Video Analytics
People Counter, Multi Loitering, Intrusion, Tampering, Smart Motion Detection (SMD), Motion Detection
Event Type
Video motion detection, Alarm input, Recording notification, Tampering
Event Linkage
Event notification using digital output, Email and MicroSD card
Region Of Interest
8
ELECTRICAL
Power Supply
DC12V, PoE (IEEE 802.3af) (Class 0)
Power Consumption (Max)
MAX 6 W
MECHANICAL
Dimensions
Ø130.0 mm × 112.3 mm (Ø5.12" × 4.42")
Dome Diameter
Ø96.0 mm (3.78")
Product Weight
0.86 kg (1.90 lb)
Package Weight
1.05 kg (2.31 lb)
Body Material
Die-cast aluminium housing
Color
Camera Body: RAL 9003 (Signal White)
Front/Lens Facings: Pantone Black
ENVIRONMENTAL
Operating Temperature
Starting Temperature:-40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature:-40°C ~ 60°C (-40°F ~ 140°F)
Relative Humidity
Less than 90 %, non-condensing
Ingress Protection
IP66/IP67
Impact Resistance
IK10
