24/7 Stunning Visual Experience
5MP Super-High Definition
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.†
Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.
No More Silent Surveillance
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
IK10 Vandal-Proof & IP67 Waterproof

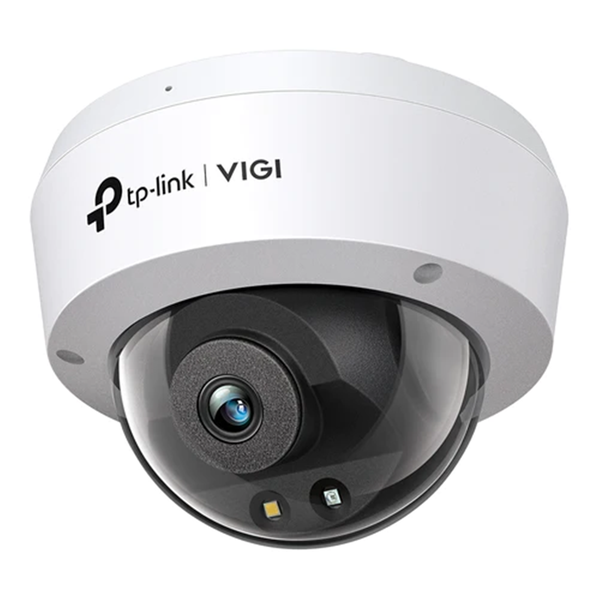

With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Installation
Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.
Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build - whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
CAMERA
Image Sensor
1/2.7" Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Day/Night/Auto/Schedule-Switch
LENS
Type
Fixed Focal Lens
Focal Length
2.8 mm
Aperture
2.8 mm: F1.6
FOV
2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
Lens Mount
M12*P 0.5
DORI Distance
2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: 0° to 360°, Tilt: 0° to 85°
ILLUMINATOR
IR LED
Quantity: 1
Range: 30m
Wavelength: 850nm
White LED
Quantity: 1
Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
2880 X 1620
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dB
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
AUDIO
Audio Input
Yes
Audio Compression
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
Yes
API
Open Network Video Interface (Profile S)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage
NAS (NFS, SMB/ CIFS)
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage
Memory Card Video Recording, Message Push, White Light Flashing
Output Notification
Message Push
DEEP LEARNING FUNCTION
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection
Supports Simultaneous Detection and Capture of Human Body and Vehicle
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera
GENERAL
Operating Temperature
-30-60 °C
Storage Temperature
-40-60 °C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material
Plastic
Net Weight
0.28 Kg
Gross Weight
0.47 Kg
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 0)
Power Consumption
Maximum: 7 W
Typical (Day Mode): 1.5 W
Typical (Night Mode with IR LED): 2.5 W
Typical (Night Mode with White LED): 2.8 W
Protection
IP67, IK10
Product Dimensions (L x W x H)
F115x85.7 mm
