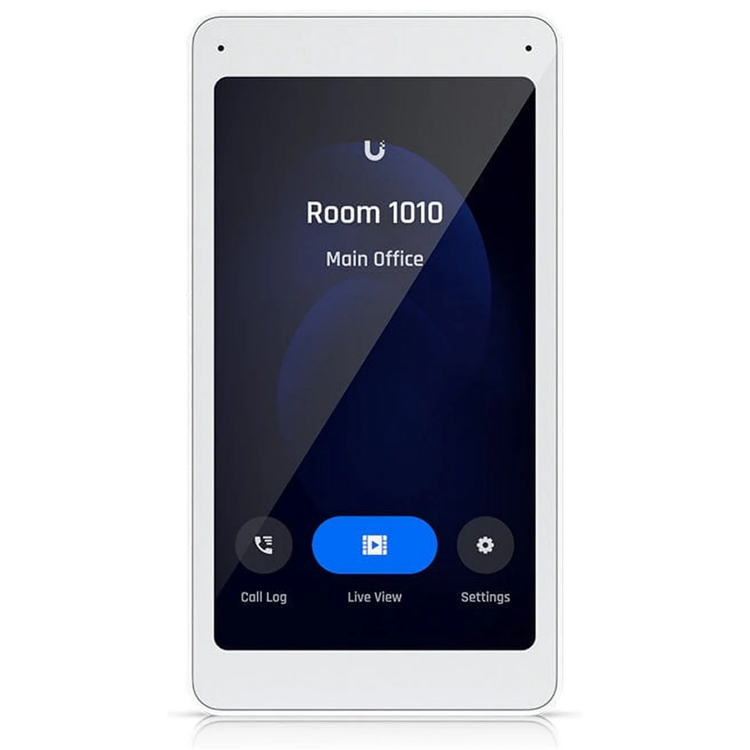

Display that works with Intercom and G2 Reader Pro for visitor screening and remote access control.
- Receives doorbell calls from one or more locations
- Two-way audio
- Instant live view
- 5" touch display
- Connect and power using a PoE switch
Mechanical
Dimensions
135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
Weight
168 g (5.9 oz)
Enclosure materials
Glass, polycarbonate
Mount material
Aluminum alloy
Mounting
Wall (Included)
Hardware
Networking interface
(1) 10/100 Mbps RJ45 port
Management interface
Ethernet
Power method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range
44–57V DC
Max. power consumption
5W
Display
127 mm (5") diagonal
Resolution
720 x 1280 (9:16)
Display luminance
300 nits (typical)
Touch screen technology
Capacitive multi-touch
Screen orientation
Portrait
Microphone
Yes
Speaker
Yes
Button
Factory reset
Ambient operating temperature
0 to 40° C (32 to 104° F)
Operating environment
Indoor use only
Ambient operating humidity
5 to 95% noncondensing
UL 294 level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
