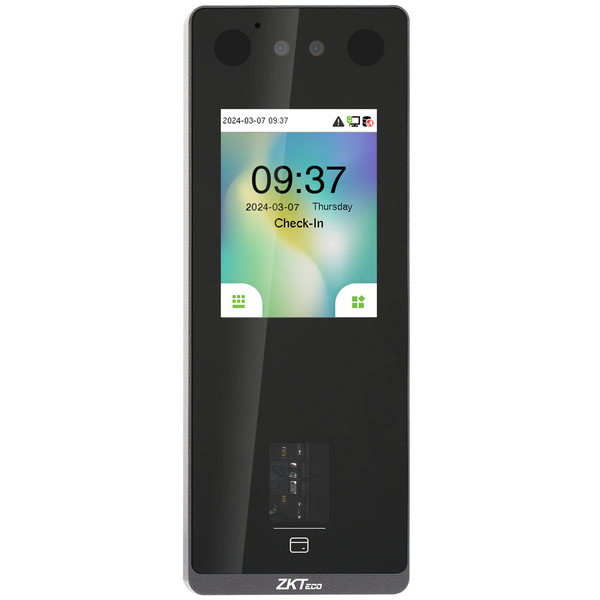

ZKTeco SenseFace 3A Multi-Biometric Access Control Terminal SenseFace 3A adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication. SenseFace 3A is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 3A supports multiple communication protocols. Its firmware has AC push and can convert to TA push and compatible with various AC or TA software. Also, it can change to the BEST protocol to link with ZKBio Zlink (AC module). - Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication- Attained IP65 Protection Rating With Dustproof and Waterproof- Multiple Authentication Methods: Facial / Fingerprint / RFID / Password- Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card- HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor (VT07-B01and VT07-B01-W)- User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive.- Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door Sensor; Exit Button) * Download data using the USB driver and make sure to use the FAT32 format. Configuration
BEST Protocol
- Model
- SenseFace 3A
- Display
- 2.8" @ TFT Color Touch LED Screen (240*320)
- Camera
- WDR Binocular Camera @ 1MP
- Operation System
- Linux
- Hardware
- CPU: Dual Core@ 1GHz
- RAM: 512MB; ROM: 8GB
- Speaker: 8ohm @ 1W
- Microphone: *1 (Sensitivity: -42 dB/ Omni-directional/ Signal-to-Noise Ratio: 58 dB/ Impedance: 2.2kO)
- Supplement Light: No
- Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 3A)
- Authentication Method
- SenseFace 3A: Fingerprint / Face / Card / Password (Virtual Keypad)
- Fingerprint Template Capacity
- SenseFace 3A: 6,000 (1:N) (Standard)
- Face Template Capacity
- 3,000 (1:N) (Standard)
- Card Capacity
- 6,000 (1:N) (Standard)
- User Capacity
- 6,000 (1:N) (Standard)
- Transaction Capacity
- 150,000 (1:N)
- Max. User Password Length
- 8 Digits
- Biometric Verification Speed
- SenseFace 3A: less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication)
- Touchless Biometric Recognition Distance
- 30cm to 200cm (Facial Authentication)
- False Acceptance Rate (FAR) %
- SenseFace 3A: FAR = 0.01% (Visible Light Facial Authentication) ; FAR = 0.0001% ( Fingerprint )
- False Rejection Rate (FRR) %
- SenseFace 3A: FRR = 0.02% ( Visible Light Facial Authentication); FRR = 0.01% ( Fingerprint )
- Biometric Algorithm
- SenseFace 3A: ZKFace V4.0; ZKFingerprint V13.0 (Standard)
- Card Type
- ID Card@ 125 kHz (Standard)
- IC Card@ 13.56 MHz (Optional)
- Communication
- TCP / IP*1
- Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
- Wiegand (Input or Output)*1
- RS485: ZKTeco RS485*1
- USB: Type A (USB Drive Only)*1
- Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1
- Standard Functions
- ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF
- (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
- Optional Functions
- IC Card, Wi-Fi, Wireless Doorbell
- Access Control Interface
- RS485 (RS485 Card Reader / Biometric Reader)
- Power Supply
- DC 12V 3A
- Operating Temperature
- -5°C to 45°C
- Operating Humidity
- 10% to 90% RH (Non-condensing)
- Dimensions
- 166 mm * 63 mm * 25 mm (L*W*H)
- Net Weight
- 0.185 Kg
- Supported Software
- Software: ZKBio CVAccess / ZKBioTime
- Mobile App: ZKBio Zlink
- Cloud Service: ZKBio Zlink
- Installation
- Wall-mount (Compatible with Asian Gang Box / Single Gang Box)
- Ingress Protection Rating
- IP65 (waterproof and dustproof )
- Certifications
- ISO14001, ISO9001,CE, FCC, RoHS
