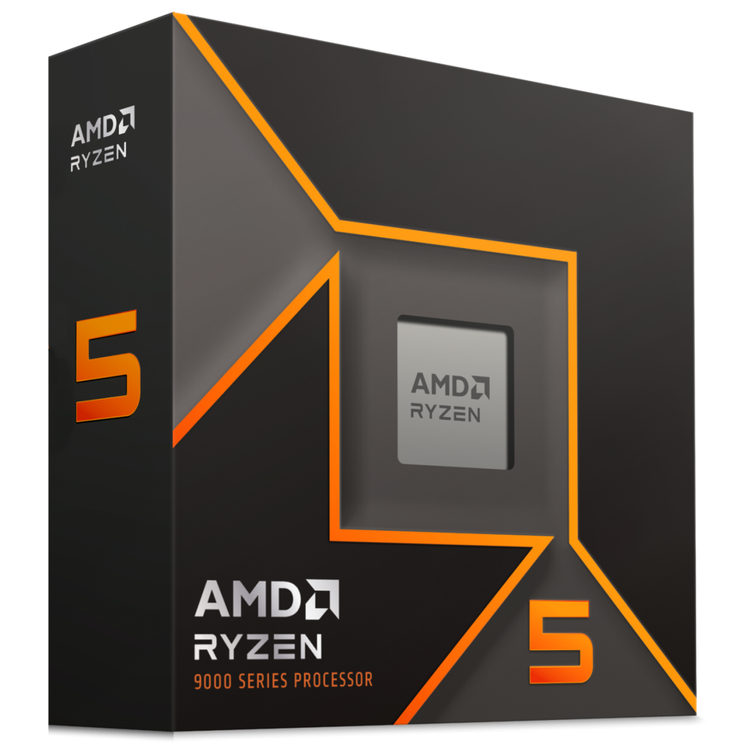

AMD Ryzen 5 9600X CPU 6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics Heatsink Required
The Trusted AI-Ready Processor for the World's Highest-Performing PCs
Introducing the new AMD Ryzen 9000 Series processors for desktop PCs, the world's most advanced and powerful option for enthusiasts.
The World's Most Powerful Desktop Processor
Relish in the speed that the world's most advanced desktop processor can provide. It doesn't matter if you're working hard or gaming hard, the AMD Ryzen™ 9950X processor is an absolute powerhouse. High-performance "Zen 5" core technology from AMD is your key to game-changing performance you can trust.
Professional-Grade Productivity
Whether you are working in Microsoft Office, exporting video files, or visualizing an architectural dream in 3D, AMD Ryzen processors are built to beat the clock. With premium options that include time-saving connectivity like PCIe® 5.0 storage support, ultra-fast Wi-Fi® 6E, AMD EXPO™ technology, up to 32 processing threads, and dedicated video accelerators9, elevate your experience with AMD Ryzen processors.
Upgradable for Years to Come
Invest in a platform that grows with your needs over time.
Your PC platform can be an investment, or a liability. AMD is the only processor manufacturer that has committed to years of future support for the cutting-edge Socket AM5 platform, so you will be able to upgrade to new processors we haven't even announced yet.
The newest AMD desktop platform is packed with state-of-the-art technologies including high-speed DDR5 memory, PCIe® 5.0 support, and AMD EXPO one-touch memory overclocking. If your PC needs the latest and greatest capabilities now and in the future, insist on AMD Ryzen processors.
Unlocked for Overclocking
Control Your Processing Power
Tweak and tune your AMD Ryzen processor for personalized performance easily with one-click Precision Boost Overdrive, or do it manually with the robust AMD Ryzen Master utility.
Accelerate your gaming with AMD EXPO overclocked memory.
General Specifications
Name
AMD Ryzen™ 5 9600X
Family
Ryzen
Series
Ryzen 9000 Series
Form Factor
Desktops , Boxed Processor
Market Segment
Enthusiast Desktop
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
Granite Ridge AM5
Architecture
Zen 5
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5.4 GHz
Base Clock
3.9 GHz
L1 Cache
384 KB
L2 Cache
6 MB
L3 Cache
32 MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 4nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
Package Die Count
2
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
Not Included
Recommended Cooler
Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
95°C
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 2.0 (480Mbps) Ports
1
PCI Express® Version
PCIe® 5.0
Native PCIe® Lanes (Total/Usable)
28 , 24
Additional Usable PCIe Lanes from Motherboard
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support
Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
192 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
Key Features
Supported Technologies
AMD EXPO™ Technology , AMD Ryzen™ Technologies
