AMD Ryzen™ Processors for Desktops
For incredible gaming, professional-grade productivity, and magical AI experiences.
The Fastest Gaming Processors in the World
Only AMD Ryzen™ processors feature models with exclusive AMD 3D V-Cache™ technology for a massive gaming performance boost. AMD combines its flagship Ryzen 9000X3D Series processor with up to a colossal 144MB of on-chip memory, paired with the most advanced processor cores you can get in a gaming PC so enthusiasts can harness the power of the ultimate gaming performance.
Professional-Grade Productivity
Whether you are working in Microsoft Office, exporting video files, or visualizing an architectural dream in 3D, AMD Ryzen processors are built to beat the clock. With premium options that include time-saving connectivity like PCIe® 5.0 storage support, ultra-fast Wi-Fi® 6E, AMD EXPO™ technology, up to 32 processing threads, and dedicated video accelerators, elevate your experience with AMD Ryzen processors.
Upgradable for Years to Come - Invest in a platform that grows with your needs over time.
Your PC platform can be an investment, or a liability. AMD is the only processor manufacturer that has committed to years of future support for the cutting-edge Socket AM5 platform, so you will be able to upgrade to new processors we haven't even announced yet.
The newest AMD desktop platform is packed with state-of-the-art technologies including high-speed DDR5 memory, PCIe® 5.0 support, and AMD EXPO one-touch memory overclocking with kits going up to DDR-8000 speeds. If your PC needs the latest and greatest capabilities now and in the future, insist on AMD Ryzen processors.
Exclusive AMD 3D V-Cache™ Technology - The Ultimate Gaming Hardware
AMD 3D V-Cache™ technology delivers a huge game performance advantage with up to 144MB of on-chip memory, available on AMD Ryzen X3D Series processors.
Unlocked for Overclocking - Control Your Processing Power
Tweak and tune your AMD Ryzen processor for personalized performance easily with one-click Precision Boost Overdrive, or do it manually with the robust AMD Ryzen Master utility.
Accelerate your gaming with AMD EXPO overclocked memory.
General Specifications
Name

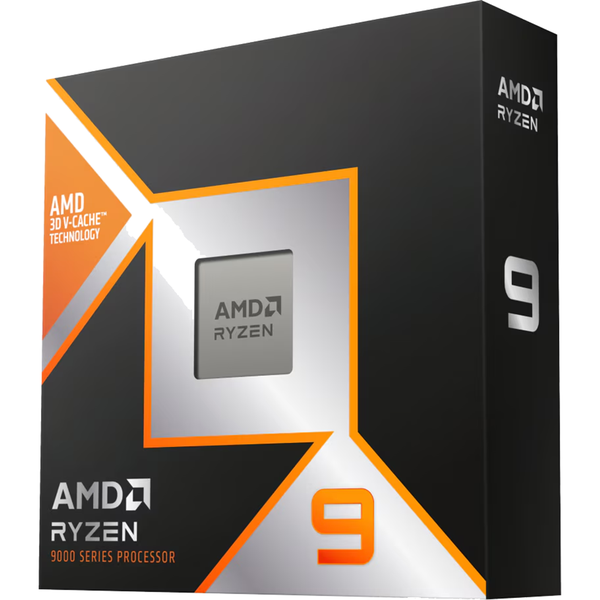

AMD Ryzen™ 9 9950X3D
Family
Ryzen
Series
Ryzen 9000 Series
Form Factor
Desktops , Boxed Processor
Market Segment
Enthusiast Desktop
AMD PRO Technologies
No
Regional Availability
Global
Former Codename
Granite Ridge AM5
Architecture
Zen 5
# of CPU Cores
16
Multithreading (SMT)
Yes
# of Threads
32
Max. Boost Clock
Up to 5.7 GHz
Base Clock
4.3 GHz
L1 Cache
1280 KB
L2 Cache
16 MB
L3 Cache
128 MB
Default TDP
170W
Processor Technology for CPU Cores
TSMC 4nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
Package Die Count
3
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
Thermal Solution (PIB)
Not Included
Recommended Cooler
Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
95°C
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps)
4
Native USB 2.0 (480Mbps)
1
PCI Express® Version
PCIe® 5.0
Native PCIe® Lanes (Total/Usable)
28 , 24
NVMe Support
Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
192 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
Key Features
Supported Technologies
AMD EXPO™ Technology , AMD Ryzen™ Technologies
