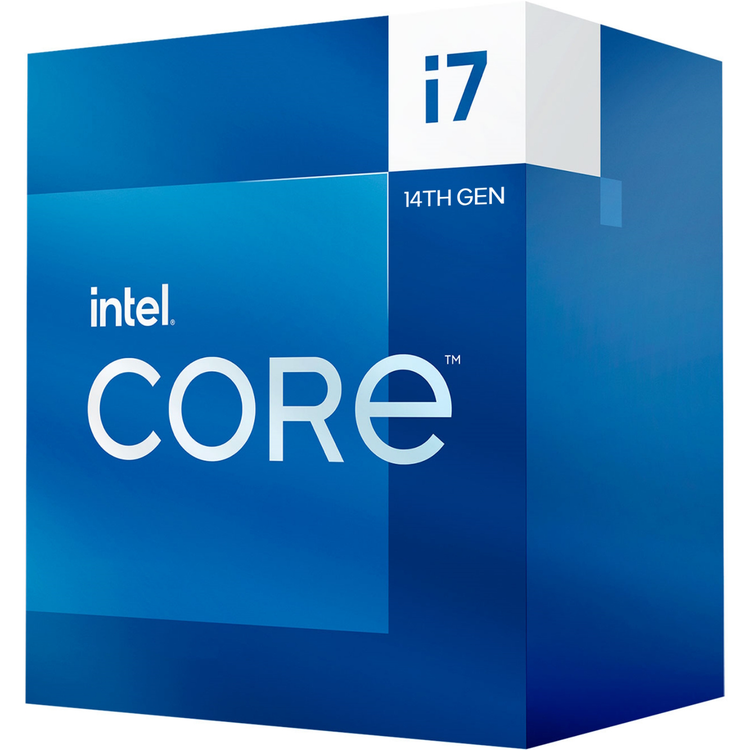

Intel Core i7 14700 CPU 20 Cores / 28 Threads - 33MB Cache - LGA 1700 Socket
Intel i7-14700 14th Gen Core CPU at PB Tech
The Intel Core 14th Gen i7 Desktop CPU is designed to meet the needs of today's PC users, it works with Intel 600/700 Motherboards.
Essentials
Product Collection
Intel® Core™ i7 Processors (14th gen)
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i7-14700
Lithography
Intel 7
Use Conditions
PC/Client/Tablet, Workstation
CPU Specifications
Total Cores
20
# of Performance-cores
8
# of Efficient-cores
12
Total Threads
28
Max Turbo Frequency
5.4 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency
5.4 GHz
Performance-core Max Turbo Frequency
5.3 GHz
Efficient-core Max Turbo Frequency
4.2 GHz
Performance-core Base Frequency
2.1 GHz
Efficient-core Base Frequency
1.5 GHz
Cache
33 MB Intel® Smart Cache
Total L2 Cache
28 MB
Processor Base Power
65 W
Maximum Turbo Power
219 W
Supplemental Information
Embedded Options Available
Yes
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported
Yes
GPU Specifications
GPU Name
Intel® UHD Graphics 770
Graphics Base Frequency
300 GHz
Graphics Max Dynamic Frequency
1.6 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3.0
Multi-Format Codec Engines
2
Intel® Quick Sync Video
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported
4
Device ID
0xA780
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020C
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator
3.0
Intel® Thread Director
Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Yes
Intel® Speed Shift Technology
Yes
Intel® Turbo Boost Max Technology 3.0
Yes
Intel® Turbo Boost Technology
2.0
Intel® Hyper-Threading Technology
Yes
Intel® 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device (VMD)
Yes
Security & Reliability
Intel® Standard Manageability (ISM)
Yes
Intel® Control-Flow Enforcement Technology
Yes
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® OS Guard
Yes
Execute Disable Bit
Yes
Intel® Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel® Virtualization Technology (VT-x)
Yes
Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® VT-x with Extended Page Tables (EPT)
Yes
