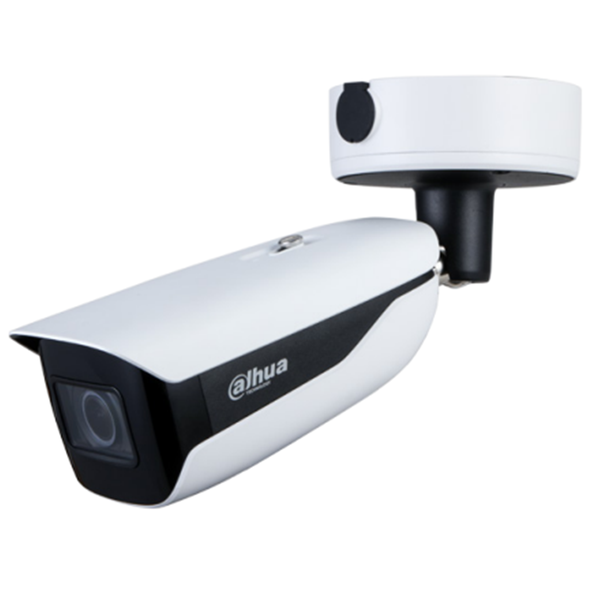

- 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image
- Outputs max. 8 MP (3840 x 2160) @30 fps.
- Max. IR distance: 120 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC, power output supports max. 256 G Micro SD card
- 24 VAC/12 VDC/PoE power supply.
- ePoE, IP67, IK10 protection.
- SMD 3.0.
- Anti-corrosion model optional.
Camera
Image Sensor
1/1.8"CMOS
Max. Resolution
3840 (H) × 2160 (V)
ROM
128 MB
RAM
1 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s-1/100,000 s
Min. Illumination
0.004 lux @ F1.4 (Color, 30 IRE)
0.0004 lux @ F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
120 m (393.7 ft)
Illuminator On/Off Control
Auto; manual; zoomprio
Illuminator Number
4 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0-360°
Tilt:0-90°
Rotation:0-360°
Lens
Lens Type
Motorized vari-focal
Mount Type
Module
Focal Length
8 mm-32 mm
Max. Aperture
F1.4
Field of View
Horizontal: 42°-14.9°
Vertical: 23.3°-8.6°
Diagonal: 48.5°-16.9°
Iris Control
Hall
Close Focus Distance
W: 3 m (9.84 ft)
T: 5.5 m (18.04 ft)
Smart Event
IVS
Abandoned object; missing object
Heat Map
Yes
Professional, intelligent
IVS (Perimeter Protection)
Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
SMD 3.0
Less false alarm, longer detection distance
Face Detection
Face detection; track; snapshot optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimized snapshot, quality priority snapshot; face angle filter; optimization time setting
People Counting
Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+;Smart H.264+
AI Coding
AI H.265; AI H.264
Video Frame Rate
Main stream: 3840× 2160 (1 fps-25/30 fps)
Sub stream: D1 (1 fps-25/30 fps)
Third stream: 1080p (1 fps-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
3 streams
Resolution
3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3 MB (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264:3 kbps -20480 kbps
H.265:3 kbps-20480 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto; manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Image Stabilization
Electronic Image Stabilization (EIS)
Defog
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 4 M resolution and lower)
Mirror
Yes
Privacy Masking
8 areas
Audio
Audio Compression
PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Cyber Security
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host
20 (Total bandwidth: 80 M)
Storage
FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser
IE: IE8 and later
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
iOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07,UL 50E NEMA Type 4X (optional)
Port
RS-485
1 (baud rate range:1200 bps-115200 bps)
Audio Input
1 channel (3.5 mm JACK port)
Audio Output
1 channel (3.5 mm JACK port)
Alarm Input
3 channels in: 5 mA 3-5 VDC
Alarm Output
2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC
Power
Power Supply
12 VDC (±25%)/24 VAC (±30%)/PoE (802.3at)/ePoE
Power Consumption
Basic: 5.5 W (12 VDC); 6.0 W (24 VAC); 6.2 W (PoE)
Max. (H.265 + 3 streams + Intelligence + IR on + heating): 15.9 W (12 VDC); 18.1 W (24 VAC); 18.7 W (PoE)
Heating: 3.3 W ( 12 VDC); 4.4 W (24 VAC); 3.9 W (PoE)
Environment
Operating Temperature
-40 °C to +60 °C (-40 °F to +140 °F)/Less than 95% RH
Storage Temperature
-40 °C to +60 °C (-40 °F to +140 °F)
Protection
IP67, IK10
Structure
Casing
Metal + plastic
Product Dimensions
340.1 mm × 138.3 mm × 134.0 mm (13.39" × 5.44" × 5.28") (L × W × H)
Net Weight
1.6 kg (3.5 lb)
Gross Weight
2.4 kg (5.3 lb)
