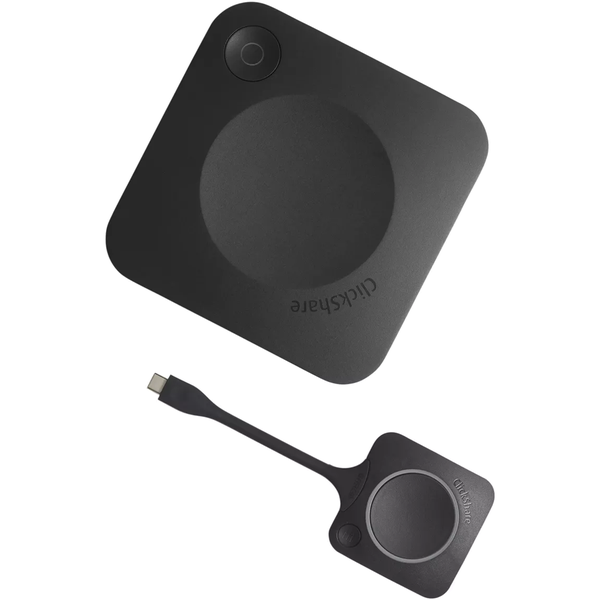

Barco ClickShare CX-20-Gen2 - NA WIFI Type (Includes Base Unit + 1 Conference Set
ClickShare CX-20
Easy wireless conferencing for small meeting rooms and huddle spaces
- Entry-level wireless conferencing model
- Run video meetings from your laptop
- Iconic ClickShare Button for employees and guests
- 100% secure, encrypted and cloud-managed
ClickShare CX-20 enables wireless conferencing in small meeting spaces. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.
Download the ClickShare app
Simply install the ClickShare Desktop App to wirelessly conference and share content
- Connect instantly to all the technology in the room
- Collaborate better thanks to a set of advanced, smart features
If you want to experience wireless conferencing via the ClickShare App, install the MSI- file and ask your IT administrator for additional rights if needed.
SmartCare so you can be carefree
- Service package included with all ClickShare devices
- Reliable service with direct vendor support
- 5 years of extended hardware coverage, no replacement costs, software upgrades included
- 5 years of analytics and insights subscription via XMS Cloud
Make the most out of your ClickShare devices
- Efficient management platform to maintain, manage and monitor your ClickShare fleet
- The right tool to increase your meeting rooms´ ROI
- Easy to stay up to date and act upon notifications
- Secure environment that keeps your data safe
ClickShare's commitment to sustainability
Made with better materials
- Non-paint plastics & halogen-free PCB in products.
- Lighter and ecological packaging choices.
Designed for recycling
- Reducing parts where possible.
- Materials easy to disassemble after use.
Energy saving
- High power efficiency.
- Helps to reduce your power consumption.
Carbon neutral
- Committed to lowering our and our customers´ carbon footprint.
- Barco ECO label: A++
ClickShare Base Unit dimensions
Dimensions (HxWxD)
34 mm x 135 mm x 135 mm
Power supply
Standard 110/220 V AC plug or USB-C (only Gen2)
Power consumption
Operational: 5-10W, 24W Max
Weight
900 gr
General specifications
Operating system
Windows 10 and higher macOS 11 (BigSur) and higher
Android v11 and higher (ClickShare App)
iOS 14 and higher (ClickShare App)
System requirements
For a smooth experience with Microsoft Teams or Zoom
Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mojave latest build
Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS latest build
Video outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
Audio output
USB, HDMI
USB
1 X USB-A, 1 X USB-C
ClickShare Buttons
1
ClickShare App
Desktop & Mobile
Native protocols
Airplay, Google Cast, Miracast
Maximum number of simultaneous connections (with Buttons and/or App)
32
Noise Level
Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Authentication protocol
WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz (DFS)
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Connections
1x Ethernet LAN 1Gbit
1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
Temperature range
Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Touch screen support & Interactivity
/
Wireless conferencing
via App or Button
Local view
Local view of the room display only
Network connection
LAN & WiFi
Management and reporting
Yes
