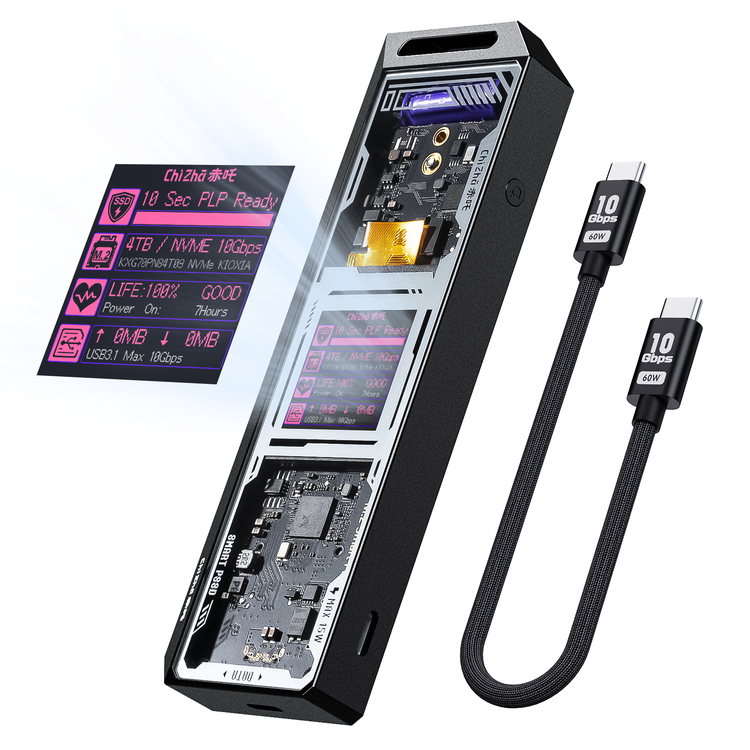

Dockcase Chizha Explorer Edition Smart 2280 M.2 NVMe SSD Enclosure - Matte Black
The Perfect Fusion of Technology and Minimalist Geometry
Cyberpunk aesthetics with transparent design, showcasing precision circuitry and innovative design
Innovative Design with a Blend of Style ond Technology
Thoughtfully designed with a dedicated lanyard hole, allowing you to personalize with your favorite accessories, and your backpack instantly becomes a cool and eye-catching unique highlight.
Real-Time SSD Health Monitoring
Effortlessly Switch Functions with D-Key
Fast USB 3.2 Gen2 Speeds
With support for USB 3.2 Gen2 and Type-C, DockCase equipped with an SSD can reach speeds of up to 1000MB/s --A PCle Gen3 x4 (NVMe 1.3) M.2 SSD or higher is required. Also, the host device must support USB 3.2 Gen 2 and a UASP driver must be installed.
15W Auxiliary Power Supply
Some SSDs may require more power than the computer's USB port can handle, which may result in the SSD experiencing performance issues or not booting properly.
By connecting the 15W auxiliary power supply, this situation can be avoided
10s Hardware Power Loss Protection
PLP safeguards SSD data during outages; Longer PLP duration rescues more data
Note:PLP duration may vary between SSD models. The 10s power loss protection duration was tested by DOCKCASE Lab during an idle state using the WD SN550 1 TB SSD.
Read Only Mode
provides an extra layer of security by preventing accidental deletion or modification of important data. This is especially useful for sensitive information that needs to be kept secure and unaltered.
Support Up to 4TB
Dual Heat Dissipation
The DOCKCASE RTL9210 control chip has a temperature control of 10 degrees lower than other chips, which reduces heat generation from the source. The first layer of graphite thermal pad increases the heat dissipation area. It wicks away heat in time to keep your SSD's transfer speed high and extend its life.
Installation
Name
Chizha M.2 NVMe Smart SSD Enclosure
Model / Color
DSWC1C-CB / Matte Black
Screen
1.33" 240*240 LCD
Power Loss Protection
10 Seconds
Capacitor Life
Minimum charge and discharge of capacitor 500,000 times
Supported SSD Type
M Key M.2 (NVMe/PCle)
B&M Key M.2(NVMe/PCle)
Supported SSD Length
2230/2242/2260/2280
Interface Type
USB 3.2 Gen 2(10Gbps) Type-C*1
15W Auxiliary Power Supply Type-C*1
Power Requirement
Max 5V±0.25V = 3A
Master Chip
RTL9210
Protocols & Speed
NVMe @ 10Gbps
Supported OS
Windows 7/8.1/10/11, MacOS 10.14.6 or later, iPadOS 12.4 or later, Linux, Android, PlayStation5, ChromeOS, Harmony Material Aluminum Alloy, Tempered Glass
Size / Weight
136.9*44.8*14.5mm / 123.0g
