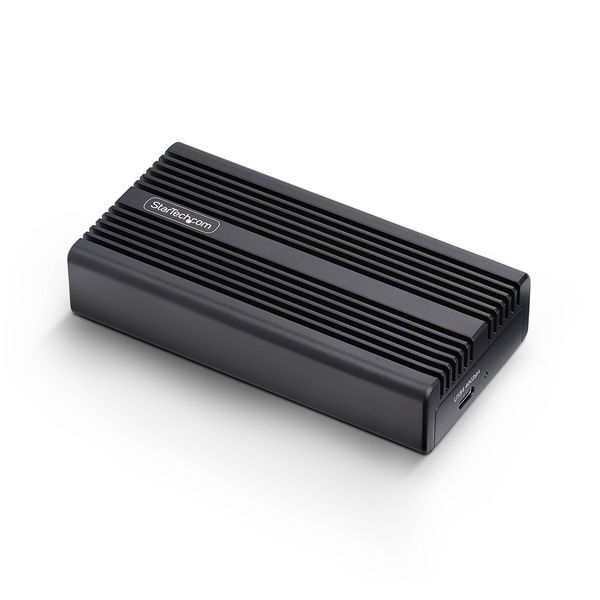

StarTech.com 1USB4-NVME-ENCLOSURE USB4 M2 NVMe SSD Enclosure
Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility
- Next-Gen Performance: Transform your M.2 NVMe SSD into an ultra-fast external storage solution, delivering up to 40Gbps via a USB4 or Thunderbolt host; Ideal for IT technicians and professionals requiring fast, dependable SSD access
- Stays Cool Under Load: Rugged aluminum heatsink enclosure with a high-performance thermal pad for effective heat dissipation; Maintains consistent SSD speeds under sustained load, supporting extended data transfers without active cooling
- Broad USB-C Compatibility: Connect the NVMe enclosure with the included USB-C cable to a USB4, Thunderbolt 5/4/3, or USB 10Gbps host for seamless, driverless operation across macOS, Windows and Linux systems with USB-C ports
- Broad Drive Compatibility: Easily access, transfer, or back up data using 2230/2242/2260/2280 M.2 NVMe PCIe SSDs, including Samsung 960/970/980/990/9100, Kingston, Seagate, Western Digital (WD), Crucial, and Intel; NOTE: M.2 SATA drives not supported
Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3,800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.
Versatile USB-C & Thunderbolt Support
Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.
Robust Heat Dissipation
The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.
Compact and Durable
The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.
Applications
- Access your NVMe drive externally with ultra-fast transfer speeds
- Heat-dissipating design is ideal for extended data-migration related tasks
- Designed for professional high-speed data workflows where fast, portable NVMe access is required
- Provide an instant, high-performance storage solution for data recovery, backup or repair. No driver installation required
Connector(s)
Drive Connectors
1 - M.2 (PCIe, M-Key, NVMe, NGFF)
Host Connectors
1 - USB4 (40Gbps)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
Up to 90% RH
Hardware
Fan(s)
No
Interface
USB4 (40Gbps)
Bus Type
USB4 (40Gbps)
Number of Drives
1
Drive Size
22 mm - M.2 NVMe
Compatible Drive Types
M.2 (PCIe, NVMe, M-Key, NGFF)
Supported Drive Height(s)
2230
2242
2260
2280
Chipset ID
ASMedia - ASM2464PD
Indicators
LED Indicators
1 - Solid LED: Drive detected
Quick-Flashing LED: Read/Write Activity
Performance
Maximum Data Transfer Rate
40Gbps
Type and Rate
USB4 (40Gbps)
UASP Support
Yes
TRIM Support
Yes
4Kn Support
Yes
S.M.A.R.T. Support
Yes
Type and Rate
NVMe (PCIe Gen 4)
Hardware Raid Supported
No
MTBF
112000 Hours
Physical Characteristics
Colour
Black
Material
Aluminum
Cable Length
1.0 ft [0.3 m]
Product Length
4.9 in [124.8 mm]
Product Width
2.6 in [65 mm]
Product Height
1.1 in [28.8 mm]
Weight of Product
12.0 oz [340 g]
Power
Power Source
Bus Powered
Software
OS Compatibility
OS independent; No software or drivers required
What's in the Box
Included in Package
1 - M.2 NVMe Enclosure
1 - Thermal Pad (Pre-installed)
1 - USB4 Cable
1 - Philips Head Screwdriver
1 - Quick-Start Guide
- Drive Connectors
- 1 - M.2 (PCIe, M-Key, NVMe, NGFF)
- Host Connectors
- 1 - USB4 (40Gbps)
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Storage Temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- Up to 90% RH
- Fan(s)
- No
- Interface
- USB4 (40Gbps)
- Bus Type
- USB4 (40Gbps)
- Number of Drives
- 1
- Drive Size
- 22 mm - M.2 NVMe
- Compatible Drive Types
- M.2 (PCIe, NVMe, M-Key, NGFF)
- Supported Drive Height(s)
- 2230
- 2242
- 2260
- 2280
- Chipset ID
- ASMedia - ASM2464PD
- LED Indicators
- 1 - Solid LED: Drive detected
- Quick-Flashing LED: Read/Write Activity
- Maximum Data Transfer Rate
- 40Gbps
- Type and Rate
- USB4 (40Gbps)
- UASP Support
- Yes
- TRIM Support
- Yes
- 4Kn Support
- Yes
- S.M.A.R.T. Support
- Yes
- Type and Rate
- NVMe (PCIe Gen 4)
- Hardware Raid Supported
- No
- MTBF
- 112000 Hours
- Colour
- Black
- Material
- Aluminum
- Cable Length
- 1.0 ft [0.3 m]
- Product Length
- 4.9 in [124.8 mm]
- Product Width
- 2.6 in [65 mm]
- Product Height
- 1.1 in [28.8 mm]
- Weight of Product
- 12.0 oz [340 g]
- Power Source
- Bus Powered
- OS Compatibility
- OS independent; No software or drivers required
- Included in Package
- 1 - M.2 NVMe Enclosure
- 1 - Thermal Pad (Pre-installed)
- 1 - USB4 Cable
- 1 - Philips Head Screwdriver
- 1 - Quick-Start Guide
