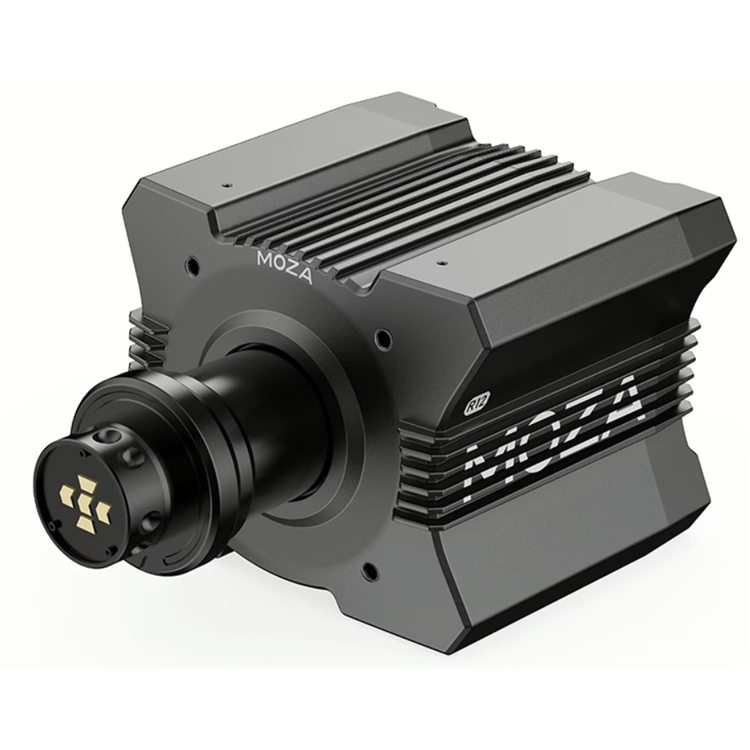

12Nm DD Power The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands. 21-Bit Magnetic Encoder With 280MHz High-Performance Processor Divides each full rotation into 2,097,152 precise steps.Delivers microscopic 0.00017° resolution.Enables ultra-smooth control feel and instant response.Reproduces exceptionally detailed force feedback. Innovative Segmented Rotor Design Asymmetric segmented skew design Significantly reduces cogging torque &; EM vibration Near-silent operation at all speeds High Torque Density Optimized slot-fill copper windings High-permeability silicon steel core NdFeB permanent magnets for maximum output 18-Slot/16-Pole Configuration Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response Wide Torque Range Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off Carbon Fiber Wrapped Rotor Automotive-grade rotor protection.Effectively suppresses eddy current losses.Superior thermal management for sustained performance. Intelligent Temperature Control System Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances. Aviation-grade Aluminum Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminum alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish. Industrial Conductive Slip Ring The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation. Cloud-based Mobile App Control Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices. Compact Design The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere. Hand-off Protection This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel. The NextGen3.0 also introduces Hand-off Protection Mode 2, providing protection without disrupting drifting. Additionally, it enhances force feedback response speed and overall driving sensations.
- Drive Type
- Direct Drive
- Max Wheel Rotation
- 90 - 2700°
- Housing Material
- Aluminum
- Housing Color
- Black
- Peak Torque
- 12 Nm
- Peak Power
- 216W
- Input Voltage
- 110V~220V AC ->36V DC
- Encoder Resolution
- 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
- USB Refresh Rate
- 1000 Hz
- App Functions
- Supported
- Quick Release
- Supported
- Connection Ports
- Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
- Box Contents
- R12 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
- Fixing Method
- 4-hole bottom mount
- Desk Clamp
- Optional
- E-stop
- Optional
- Online Firmware Update
- Supported
- Dimensions (mm)
- 225.87 x 156.68 x 123.99
