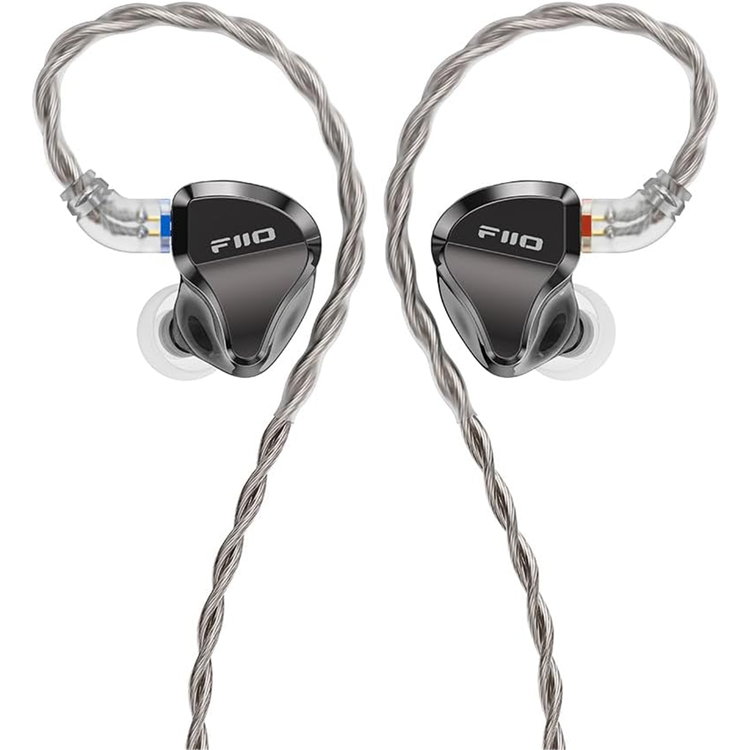

JH5 - 1 dynamic 4 BA hybrid IEMs
1 dynamic 4BA three-way design | 10mm carbon-based dynamic driver
Four custom BA drivers per ear | Three independent driver chambers
High-precision 3D printed construction | Zinc alloy faceplate
Negative feedback bass enhancement | 0.78 2pin detachable cable
Included 392 wire silver-plated copper cable | Hi-Res Audio certified
High and low, quality everywhere - Higher performance - At a lower cost of entry
The FIIO x Jade Audio series of products have always been known for their high performance-to-cost ratio as well as their high build quality, providing audiophiles with affordable yet high-quality devices to listen with. The all-new JH5 is the latest result of FIIO and Jade Audio's years of audio experience. The high-precision 3D printed construction and the exquisite zinc alloy faceplate are a display of the high-end craftsmanship poured into the JH5 which gives it a luxurious feel you will immediately notice when picking it up.
The acoustic design of the JH5 borrows elements from the design of high-end IEMs such as the FH9 and FH7 with the goal or presenting music from genres as diverse as classical to pop all in a high-fidelity manner. At the heart of the JH5 is a 10mm carbon-based dynamic driver which is seamlessly connected to the custom balanced armature drivers covering medium to ultra-high frequenceis thanks to the drivers being separated into three independent chambers.
The FIIO JH5 is truly an affordable IEM with a highly precise sound that turly lets you experience how good dynamic-BA hybrids can get.
More carbon, more than amazing - 10mm carbon-based dynamic driver
The quality of the dynamic driver is especially important in hybrid IEMs as it is the foundation of its sound. The JH5's 10mm carbon-based dynamic driver is similar to those used in the popular FIIO "Little Conch" series of headphones. However, this driver has been further tweaked, making it a second-generation model that has been designed to work well with the rest of the acoustic design. The carbon-based driver can move quickly resulting in excellent transient performance; all with minimal driver breakup resulting in reduced non-linear distortion.
- 10mm Carbon-based diaphragm
- 9x Tensile strength vs. steel
- 1/4 Lighter than beryllium
Delicate sound from being able to depict the subtle details - Dual cavity dynamic driver
In order to go beyond the typical sound found in its class, the development placed special attention on optimizing and tuning the JH5's dynamic driver. The JH5's dynamic driver features a unique dual-layer cavity, allowing for damping control systems in both the inner and outer chambers to precisely control air flow - resulting in reduced distortion and allowing the diaphragm to move more freely without breakup. The result is extended yet quick bass that is truly "dynamic driver" -like.
High-energy, robust dynamics - Asymmetrical internal and external magnetic circuits
To ensure that the driver has enough energy to convey even the most robust dynamics in audio, the FIIO JH5 is equipped with the second-generation asymmetric internal and external magnetic circuits design. Compared to the traditional design of a single internal magnet or a single external magnet, the magnetic circuits in the JH5 greatly increase the magnetic field density around the voice coil - leading to more power for a more robust sound as well as improved transient response.
The JH5 uses strong N52 neodymium magnets with 1.5T magnetic flux. Stronger magnets ensure a more uniform magnetic field across a wider area, leading to lower distortion even when playing back highly dynamic audio signals -leading to a liquid sound unconstrained in any way.
Four custom BA drivers per ear - Tuned balanced armatures, pure silky smoothness - Custom medium and high frequency BA drivers
To ensure the dynamic driver worked well with the balanced armature drivers, the development team borrowed design ideas from high-end hybrid IEMs like the FH9 and FH7. Two custom BA drivers handle the mid and high frequencies. These two BA drivers were specially designed along with the dynamic driver to have a resonance peak at 2.8kHz, which also happens to be a resonance frequency formed by the shape of the human ear. The result is not only a smooth transition between the dynamic and balanced armature driver, but also ensures that the transition between different drivers is also well-suited for the shape of the human ear - resulting in a more natural soundstage and overall a smoother sound.
Feel every instrument string pluck - Custom ultra-high frequency - BA driver
To achieve sound quality targets, the development team also saw fit to equip the JH5 with two custom ultra-high frequency (UHF) BA drivers. These two UHF drivers were placed closer to the sound nozzle - which itself was made to have a thicker inner part, be shorter in length, and have a small curvature. The result of this design allows the FIIO JH5 to be well-extended in the treble, being able to capably produce ultra-high frequencies. It will let you feel every pluck of instrument strings, bringing you that much closer to the music performance.
Gentle as jade, comfortable and skin-friendly - High-precision 3D printed construction
If it is comfortable, you are more likely to keep it for a long time. If it sounds good, you are more willing to listen to it. To achieve better sound and superior comfort, the shell is made from medical-grade resin that has gone through high-precision DLP 3D printing:
- The highly precise 3D printing process down to 0.05mm ensures even complex acoustic designs are consistently made between all units.
- Medical-grade resin helps the _JH5 to be tough and impact resistant, ensuring they last for a long time.
Interference-free - Three independent driver chambers
In order to achieve maximum performance and to produce natural sound at all frequencies, the development team decided to take advantage of highly-precise 3D printing by making three independent chambers, each housing a set of drivers that handle a specific set of frequencies to reduce interference between the different driver and thus lowering distortion.
Thanks to the self-developed acoustic pipe, the JH5's frequency response curve is smooth, free of distortion and sibilance caused by frequency response spikes.
Luxurious feel, apparent with just a touch - Liquid die-cast zinc alloy faceplate
The JH5 was designed as a relatively affordable IEM that not only sounds great, but also exhibits build quality excellence. The robust yet light magnesium alloy cover that undergoes several processes such as liquid die-casting, mirror electroplating and hand polishing results in an lEM that simply exudes quality. Your fingers will immediately know when they touch the JH5.
Quality materials, all present - Included 392 wires of silver-plated copper headphone cable
The FIIO JH5 comes standard with a cable made of high-purity silver-plated copper wires. Every 14 wires are twisted into a small strand, and 7 small strands make up one large strand. With a total of 4 large strands, the JH5's cable boasts a total of 392 wires. The wires are each independently insulated and Litz braided, which increases the conductive area and improves high-frequency detail.
The JH5 features a 0.78 2pin detachable cable that allows ample opportunities for future upgrades. The 0.78 2pin connectors are elbow-shaped and the cable ergonomically wraps around your ear for a more comfortable listening experience.
Negative feedback bass enhancement - Pleasant sounding, magnificent sound
If earphones made of resin are not made carefully or have problems in their acoustic design, they can sound "closed" and cause discomfort to the eardrum.
The dynamic driver of the FIIO JH5 features dual magnets. When the driver vibrates, the sound is emitted from both the front and the rear of the driver with opposite phases. The JH5's negative feedback bass enhancer does so by guiding the low-frequency sound waves that were emitted from the rear of the driver to the front of the driver. Compared to more typical acoustic designs, this particular design allows for pressure relief in the front of the driver and thus reduces the pain for the listener's eardrum caused by increased air pressure in a confined space. Such a design overall improves comfort, durability as well as soundstage, and is made possibly by highly precise 3D printing.
Abundant accessories
1 - JH5 earphones*1
2 - 0.78mm 2pin silver-plated copper cable*1
3 - Balanced ear tips S/M/L*3 pairs
4 - Bass ear tips S/M/L*3 pairs (M pre-installed)
5 - HB11 transparent storage case*1
6 - Manual*1
Wearing method
Around-the-ear in-ear monitors
Drivers
10mm carbon-based dynamic driver*1
Custom medium and high frequency balanced armature*2
Custom ultra-high frequency balanced armature*2
Frequency response
20Hz-40kHz
Impedance
13O @ 1kHz
Sensitivity
111dB/mW @ 1kHz
Cable material
4 strands totaling 392 wires of silver-plated copper
Cable length
About 1.2m
Weight
About 7.6g (excluding cable)
Headphone connector
0.78 2pin detachable cable
Audio plug
High-quality gold-plated copper 3.5mm
