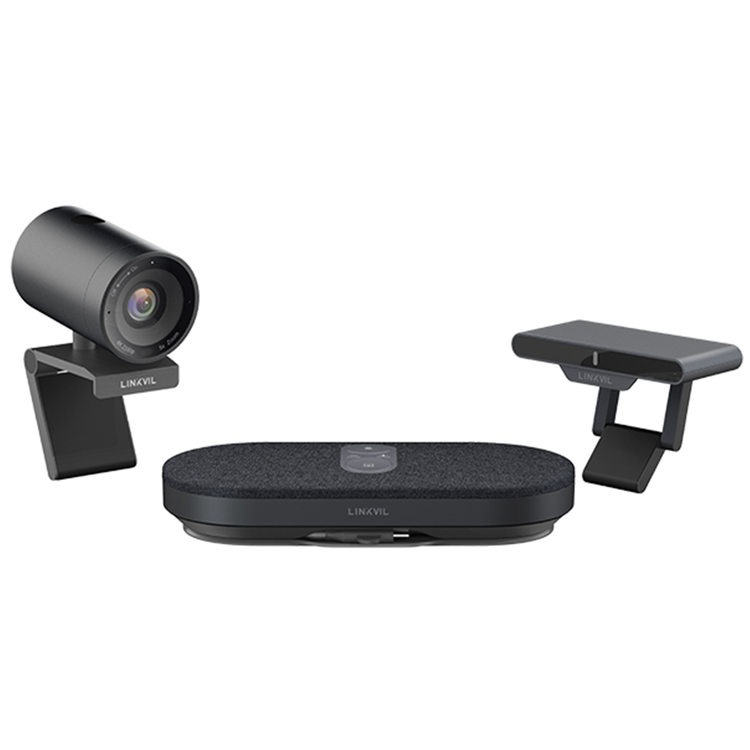

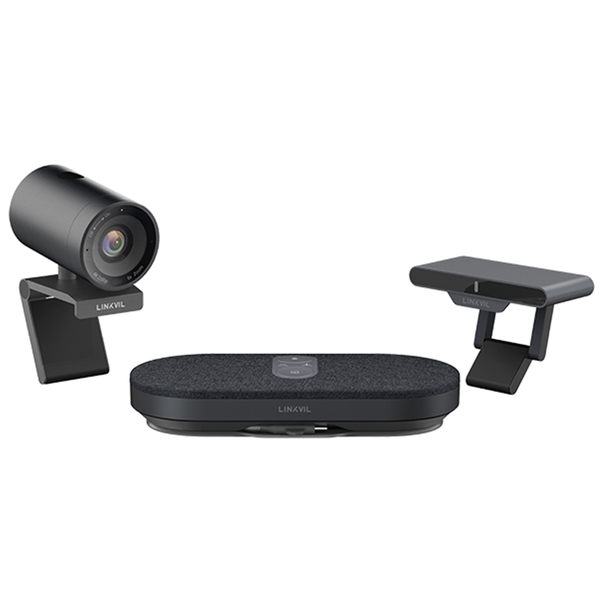

CA400 All-in-one Wireless Conference Solution
Designed for small and medium meeting rooms up to 32m², the CA400 system consists of a unique speakerphone MS10, that supports wireless screen sharing, a receiver RC10, and a USB camera CM70.
The CA400 achieves far-field voice pickup, delivering HD crystal-clear sound. Participants can also wirelessly cast at 4K and access FHD video streaming.
MS10 Screen-share Speakerphone
Max. Screen Share Resolution
3840*2160 @ 30fps
Microphone
8 MEMS microphones for 360° pickup
Pick-up Range: 4-meter
Signal to Noise Ratio (SNR): 64.5dB(A)
Sensitivity: -26dBFS @ 1kHz (0dB=1V/Pa)
Acoustic Overload Point: 119dB SPL <10% @ 1kHz
Frequency: 20Hz-10KHz
Full-duplex
Beamforming
Acoustic Echo Cancellation (AEC)
Adjustive Noise Suppression (ANS)
Automatic Gain control (AGC)
Reverberation Reduction
Speakerphone
Speaker/Rated power: 4?/3W
Speaker Size: 50mm
Sensitivity: 1KHz 85 dB ± 3dB @ 1m
Signal to Noise Ratio (SNR): 50dB
Frequency Range: 200Hz- 10KHz MAX 5%
Max. Sound Pressure Level: 85dB SPL @ 1m @ 3W
Background Noise: <30dB
Total harmonic Distortion: 200Hz-10KHz MAX 5%
RC10 Receiver Hub
Camera Streaming
Max. Output Resolution: 1920x1080 @30fps
Support Camera Type: UVC camera
Format Supported: H.264
Physical Character
magnetic attraction
CM70 UHD Camera
USB Camera
Sensor Type: IMX 415 (1/2.8") 3840*2160
Output: MJPEG/ H264/ H265 /YUV / NV12 30P (YUV and NV12 don ‘t support 4K and 2K) 3840*2160/2560*1440/1920*1080/1280*720/1024*576/960*540/800*448/640*360/320*180/960*720/800*600/640*480/480*270/352*288/320*240
FOV: DFOV 118.5°/HFOV 109.9°/VFOV 74.6°
Auto-Framing: Auto
F/No: F2.5
Zooming: 5x digital zoom
Maximum Resolution: USB3.0: 3840*2160 30fps/USB2.0: 1920*1080 30fps
Security Protection: manual privacy cover
USB Microphone
Type: 2 electret microphones
Pick-up Range: 4-meter
Signal to Noise Ratio: 94dB SPL@ 1KHz 65dB(A)
Sensitivity: 94dB SPL@ 1KHz - 30±2dB FS
Full-duplex
Adjustive Noise Suppression (ANS)
Automatic Gain Control (AGC)
Physical Character
magnetic attraction
Connectivity
Protocol
802.11 a/n/ac
Wireless Transmission Protocol
Quick UDP
Transmission Distance
up to 10-meter
Frequency bands & max. transmitted power
Wi-Fi 5GHz, Max 20dBm (Support for selecting corresponding 5G channels based on the country.)
I/O Interface
USB Camera
Type C x1
Speakerphone
Type C PD + DP ALT
Receiver Hub
HDMI x1, Type C PD, USB A 3.0 x1
Physical Specifications
Dimensions
USB Camera: 80*75*53mm/3.15*2.95*2.09"
Speakerphone: 180*81*32mm/7.09*3.19*1.26"
Receiver Hub: 102*45*20mm/4.02*1.77*0.79"
Gift Box Dimension: 233*188*110mm
Outer CTN Dimension: 498*408*258mm (8PCS)
Weight
USB Camera: 210g/7.4oz
Speakerphone: 385g/13.58oz
Receiver Hub: 70g/247oz
Carton Net Weight: 12.56 kg
Carton Gross Weight: 13.78 kg
Temperature and humidity
Working temperature: 0°C-40°C
Working humidity: 10%—90%RH
Package
Package Contents
USB Camera: CM70
Speakerphone: MS10
Receiver Hub: RC10
Remote Control
20cm USB-C to HDMI & USB-A/C Adapter: H2C, 1.5m HDMI Cable, 40cm USB Extension Cable, 1.8m Type C-A USB Cable
Power Adapter: 5V/2A
Quick Installation Guide
