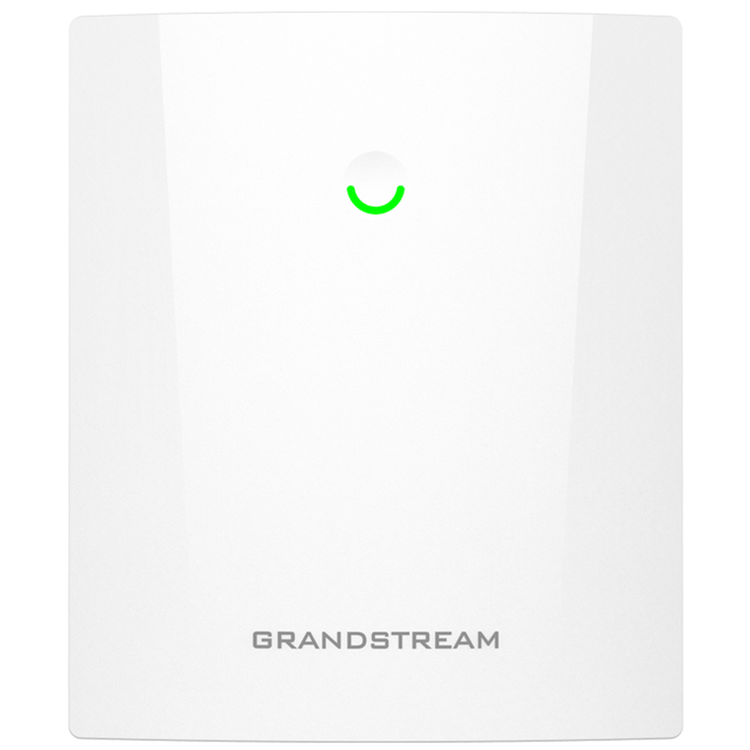

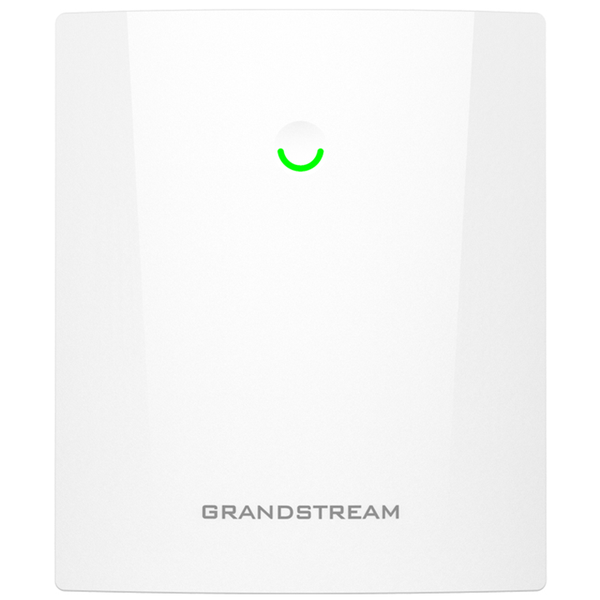

Grandstream GWN7660ELR (AX3000) Dual-Band 4-Stream Outdoor Wi-Fi 6 Access Point with 1GbE x1 (PoE 13W)
The GWN7660ELR is an enterprise-grade, long-range Wi-Fi 6 access point designed to help businesses build next-generation Wi-Fi networks for high-density environments. It features a weatherproof casing, heat-resistant technology, dual-band 2×2:2 MU-MIMO with XTRA Range technology, and a sophisticated antenna design that enables support for up to 256 clients and an extended coverage range of 300 meters. With IP67-rated weatherproofing and dust-proof protection, plus an operating temperature range from -30°C to 60°C, the GWN7660ELR is built to perform reliably even in harsh outdoor conditions.
For ease of deployment and management, the GWN7660ELR includes a built-in controller accessible through the product's web user interface. It is also fully compatible with GWN.Cloud and GWN Manager, Grandstream's free cloud-based and on-premise Wi-Fi management platforms. This makes installation and ongoing network management seamless for IT teams and system integrators.
The GWN7660ELR is an excellent choice for voice-over-Wi-Fi deployments, offering seamless integration with Grandstream's Wi-Fi voice and video IP phones. It also supports advanced features like QoS, mesh networking, captive portals, Bluetooth® Low Energy (BLE) 5.2, a Gigabit Ethernet port with PoE/PoE+, and a 2.5 Gigabit SFP port with PoE/PoE+. This makes it a perfect outdoor access point for enterprises, multi-floor offices, warehouses, hospitals, schools, and more.
- 3 Gbps aggregate wireless throughput, 1 Gbps RJ45, and 2.5 Gbps SFP wireline ports
- Dual-band 2x2:2 MIMO with OFDMA technology
- Self-power adaptation upon auto-detection of PoE or PoE+
- Support 256 concurrent Wi-Fi client devices
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Flexibility of 5 internal antennas
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Brand
Grandstream
Manufacturer Part Number
GWN7660ELR
Wi-Fi Standards
IEEE 802.11 b/g/n/ac/ax
Antennas
5 individual internal antennas
2.4GHz x 2 , gain 5.5 dBi
5 GHz x 2, gain 6.0 dBi
BT gain 4.5 dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
IEEE 802.11ac: 6.5 Mbps to 1734 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4GHz radio: 2412 - 2484 MHz
5GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20, 40, 80 and 160 MHz
System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/
control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO
2×2:2 2.4GHz, 2×2:2 5GHz
Coverage Range
Up to 300 meters
*Coverage range can vary based on environment
Maximum TX Power
5G: 26dBm
2.4G: 27dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm @ 1Mbps, -88dBm @ 11Mbps
802.11g: -93dBm @ 6Mbps, -75dBm @ 54Mbps
802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz:-70dBm @ MCS7
802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS11
5G
802.11a: -90dBm @ 6Mbps, -72dBm @ 54Mbps
802.11n: 20MHz: -71dBm @ MCS7; 802.11n 40MHz: -68dBm @ MCS7
802.11ac 20MHz: -65dBm @ MCS8; 802.11ac: 40MHz: -61dBm @ MCS9; 802.11ac 80MHz: -57dBm @ MCS9; 802.11ac 160MHz: -55dBm @ MCS9
802.11ax 20MHz: -58dBm @ MCS11; 802.11ax 40MHz: -56dBm @ MCS11; 802.11ax 80MHz: -54dBm @ MCS11
802.11ax 160MHz: -51dBm @ MCS11
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
256
Network Interfaces
1x 1G Port and 1x 2.5G SFP Port
Bluetooth®
BLE 5.2
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Wall mount or pole mount, kits included
LEDs
1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at;
Maximum Power Consumption: 13W
Environmental
Operation:-30°C to 60°C
Storage: -30°C to 70°C
Humidity: 5% to 95% Non-condensing
Dimensions
270mm x 230mm x 57mm
Weight
1kg (including brackets)
