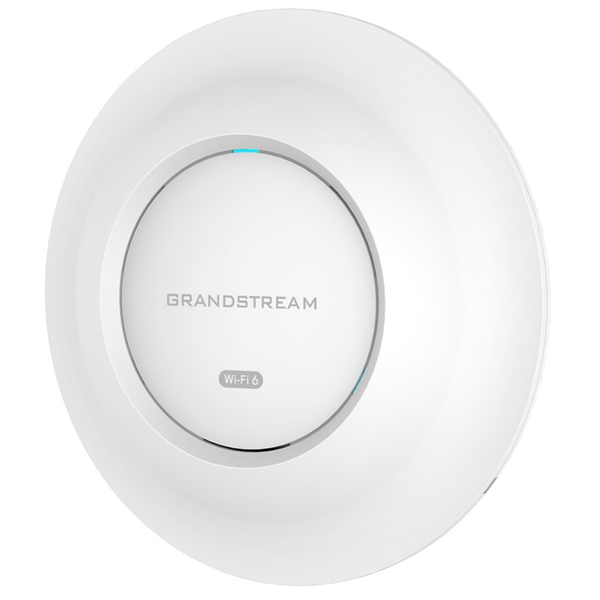

Grandstream GWN7664E (AX6000) Dual-Band 8-Stream Wi-Fi 6 Access Point
Grandstream GWN7664E High-Performance AX6000 Wi-Fi 6 Access Point
The GWN7664E is a powerful, enterprise-grade high-performance 802.11ax Wi-Fi 6 access point, ideal for small-to medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MU-MIMO with OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput of up to 6Gbps and expanded Wi-Fi coverage range.
The GWN7664E is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7664E is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 512 concurrent clients and dual 2.5 Gigabit network ports with PoE+, the GWN7664E is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.
Manufacturer's Code
GWN7664E
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax
Antennas
8 individual internal antennas, 4 per band; 2.4GHz, gain 3.5dBi, 5 GHz, gain 4.5dBi
Wi-Fi Data Rates Max
5GHz: IEEE 802.11ax: 7.3 Mbps to 4804 Mbps, 2.4GHz: IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
Frequency Bands
2.4GHz Radio: 2400 - 2483.5 MHz, 5GHz Radio: 5150 - 5895 MHz
Channel Bandwidth
2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80 and 160 MHz
Wi-Fi and System Security
WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO
4×4:4 2.4GHz, 4×4:4 5GHz
Coverage Range
Up to 175 meters *coverage range can vary based on environment
Maximum TX Power
5GHz: 25.5dBm, 2.4G: 26.5dBm *Maximum power varies by country, frequency band and MCS rate
Maximum RX Sensitivity
2.4GHz -97dBm, 5GHz -93dBm
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
512
Network Interfaces
2 x 2.5G Ethernet Ports
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3at; Maximum Power Consumption: 21W
Environmental
Operation: 0°Cto 50°C, Storage: -10°C to 60°C, Humidity: 10% to 95% Non-condensing
Physical
Unit Dimension: 205.3mmx205.3mmx45.9mm; Unit Weight: 0.714Kg, Entire Package Dimension: 258mmx247mmx86mm; Entire Package Weight: 1.06Kg
Compliance
FCC, CE, RCM, IC
- Manufacturer's Code
- GWN7664E
- Wi-Fi Standards
- IEEE 802.11 a/b/g/n/ac/ax
- Antennas
- 8 individual internal antennas, 4 per band; 2.4GHz, gain 3.5dBi, 5 GHz, gain 4.5dBi
- Wi-Fi Data Rates Max
- 5GHz: IEEE 802.11ax: 7.3 Mbps to 4804 Mbps, 2.4GHz: IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
- Frequency Bands
- 2.4GHz Radio: 2400 - 2483.5 MHz, 5GHz Radio: 5150 - 5895 MHz
- Channel Bandwidth
- 2.4GHz: 20 and 40 MHz, 5GHz: 20, 40, 80 and 160 MHz
- Wi-Fi and System Security
- WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
- MU-MIMO
- 4×4:4 2.4GHz, 4×4:4 5GHz
- Coverage Range
- Up to 175 meters *coverage range can vary based on environment
- Maximum TX Power
- 5GHz: 25.5dBm, 2.4G: 26.5dBm *Maximum power varies by country, frequency band and MCS rate
- Maximum RX Sensitivity
- 2.4GHz -97dBm, 5GHz -93dBm
- SSIDs
- 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
- Concurrent Clients
- 512
- Network Interfaces
- 2 x 2.5G Ethernet Ports
- Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
- Mounting
- Indoor wall mount or ceiling mount, kits included
- LEDs
- 3 tri-color LEDs for device tracking and status indication
- Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
- QoS
- 802.11e/WMM, VLAN, TOS
- Network Management
- Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs
- Power and Green Energy Efficiency
- PoE 802.3at; Maximum Power Consumption: 21W
- Environmental
- Operation: 0°Cto 50°C, Storage: -10°C to 60°C, Humidity: 10% to 95% Non-condensing
- Physical
- Unit Dimension: 205.3mmx205.3mmx45.9mm; Unit Weight: 0.714Kg, Entire Package Dimension: 258mmx247mmx86mm; Entire Package Weight: 1.06Kg
- Compliance
- FCC, CE, RCM, IC
