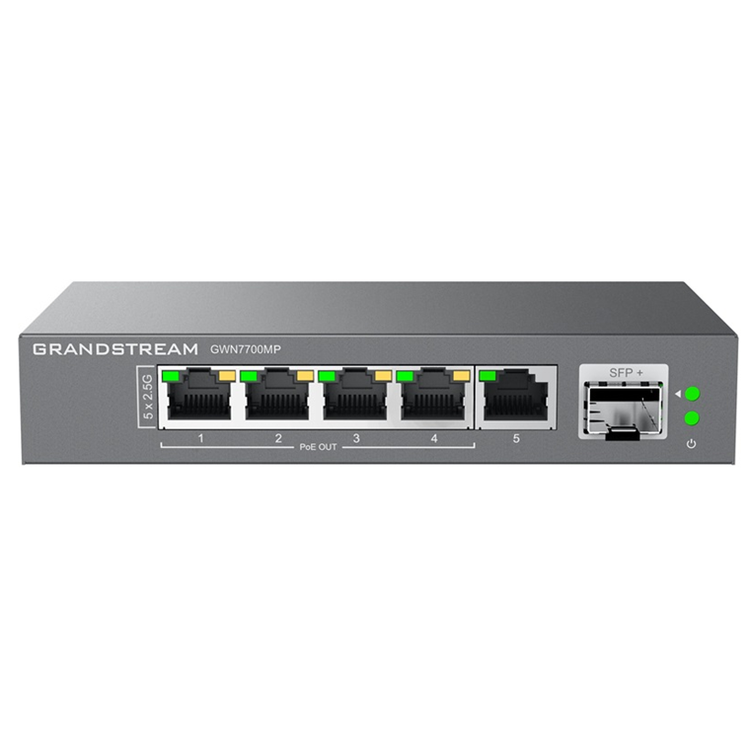

Grandstream GWN7700MP 6-Port 2.5G Unmanaged PoE Switch (57W) - 10G SFP+ x1 / 2.5GbE PoE+ x4
The Grandstream GWN7700MP is an unmanaged 2.5 Multi-Gigabit switch featuring 5 x 2.5 GigE ports (4 of which support PoE) and 1 x SFP+ port. Part of the GWN7700M series, these switches are designed to deliver high-speed network connectivity up to 2.5Gbps, making them ideal for home offices and small-to-medium businesses. The series includes 6- and 9-port models that support fast Ethernet, 1-Gigabit, and 2.5-Gigabit network speeds, along with 1 SFP+ fiber port offering 1-Gigabit or 10-Gigabit uplink connectivity for flexible and powerful network expansion.
The GWN7700M, GWN770MP, and GWN77001M switches require no configuration or installation and are both desktop and wall-mountable for convenience. They feature auto MDI/MDIX, eliminating the need for crossover cables, and support auto negotiation on each port to automatically recognize and adjust to the speeds of connected devices (100/1000/2500Mbps) for compatibility and optimal performance.
Additionally, the GWN7700MP offers smart dynamic PoE output with IEEE 802.3af/at compliance, allowing it to power devices like IP phones, IP cameras, Wi-Fi access points, and other PoE-enabled endpoints. With plug-and-play simplicity, the GWN7700M series provides an easy and efficient solution for high-speed, multi-Gigabit connectivity in home office and SMB environments.
- 5 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
- One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- Whisper Quiet: fanless
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Green technology reduces power consumption
- QoS - Supports Default Strict Priority when present
2.5 Gigabit Ports
5
PoE Ports
4
Enclosure
Metal
Mounting
Desktop/ Wall-Mount
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3af, IEEE 802.3at
Port Features
5× 100/1000/2500Mbps RJ45 Ports
1× SFP+ Fiber Port
AUTO Negotiation
AUTO MDI/MDIX
Network Media
2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex
PoE Ports
1 - 4 Ports 802.3 af/at compliant; Up to 30 W on Each Port, Total 57W Power Budget; Overload to cut off the lowest priority port; Priority: Port 4 to Port 1
LED Indicators
Per port: Link/Activity Green
Per device: Power Green
Port1~4: PoE output - Yellow
Mac Address Table
4K
Switching Capacity
45Gbps
Jumbo Frame
9KB
Advanced Features
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
IEEE 802.3az (Energy Efficient Ethernet)
802.1p/DSCP QoS
IGMP: IGMP Fast-Leave; IGMP Snoop; Route Port Autolearn; Query Refresh Member Port
Power Adapter
External 53.5V/1.22A
Max Power Consumption by Base System
7.2W
Environmental
Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -20 to 60 °C (-4 to 140 °F)
Operating Humidity: 10% to 90% Non-condensing
Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)
145 x 80 x 27mm
Weight
0.31g
Compliance
FCC, CE, RCM, IC
- 2.5 Gigabit Ports
- 5
- PoE Ports
- 4
- Enclosure
- Metal
- Mounting
- Desktop/ Wall-Mount
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3af, IEEE 802.3at
- Port Features
- 5× 100/1000/2500Mbps RJ45 Ports
- 1× SFP+ Fiber Port
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media
- 2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex
- PoE Ports
- 1 - 4 Ports 802.3 af/at compliant; Up to 30 W on Each Port, Total 57W Power Budget; Overload to cut off the lowest priority port; Priority: Port 4 to Port 1
- LED Indicators
- Per port: Link/Activity Green
- Per device: Power Green
- Port1~4: PoE output - Yellow
- Mac Address Table
- 4K
- Switching Capacity
- 45Gbps
- Jumbo Frame
- 9KB
- Advanced Features
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- IEEE 802.3az (Energy Efficient Ethernet)
- 802.1p/DSCP QoS
- IGMP: IGMP Fast-Leave; IGMP Snoop; Route Port Autolearn; Query Refresh Member Port
- Power Adapter
- External 53.5V/1.22A
- Max Power Consumption by Base System
- 7.2W
- Environmental
- Operating Temperature: 0 to 40 °C (32 to 104 °F)
- Storage Temperature: -20 to 60 °C (-4 to 140 °F)
- Operating Humidity: 10% to 90% Non-condensing
- Storage Humidity: 10% to 90% Non-condensing
- Dimensions (L x W x H)
- 145 x 80 x 27mm
- Weight
- 0.31g
- Compliance
- FCC, CE, RCM, IC
