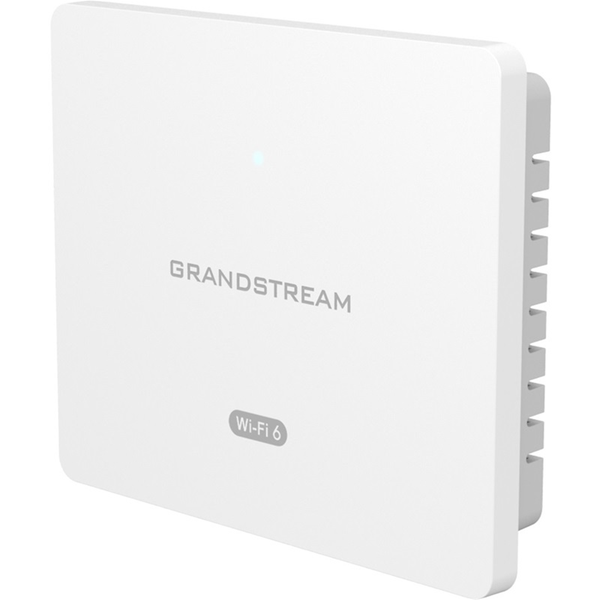

Grandstream GWN7604 (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access Point
The GWN7604 is a compact AX3000 Wi-Fi 6 access point designed for small businesses, hotels, and home offices. It provides versatility through four Gigabit ethernet ports, including one uplink port that can receive PoE/PoE+ to power the access point, and two ports with PSE that can provide PoE and a network connection to other devices. The GWN7604 offers dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO technology and a sophisticated antenna design to support 256 concurrent clients and up to 100-meter coverage range.
This Wi-Fi access point can be easily installed and managed using GDMS Networking and GWN Manager, Grandstream's cloud and on-premise network management platforms. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 3Gbps wireless throughput, and four Gigabit network ports, the GWN7604 is the ideal Wi-Fi access point for small-to-medium sized deployments that require flexibility.
- 3Gbps aggregate wireless throughput, 4x Gigabit ports
- Up to 100 meters coverage range
- Self power adaptation upon auto detection of PoE/PoE+ and PSE
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Supports up to 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
Brand
Grandstream
Manufacturer Part Number
GWN7604
Wi-Fi Standards
IEEE 802.11a/b/g/n/ac/ax
Antennas
2 x dual-band internal antennas,1x 5G internal antenna
Antenna1, 2.4G gain 3.0dBi, 5G gain 3.5dBi
Antenna2, 2.4G gain 3.5dBi, 5G gain 3.0dBi
5G Antenna, gain 4.5dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ax: 7.3 Mbps to 2402 Mbps;
IEEE 802.11ac: 6.5 Mbps to 1732 Mbps;
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4 GHz Radio: 2412 - 2483.5 MHz
5GHz Radio: 5150 - 5895 MHz
*Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU states.
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20, 40, 80, and 160 MHz
System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/
control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO
2×2:2 2.4GHz
3×3:2 5GHz
Coverage Range
Up to 100 meters
*Coverage range can vary based on environment
Maximum TX Power
5G: 26dBm
2.4G: 24dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity
5G
802.11a: -92dBm @ 6Mbps, -74dBm @ 54Mbps;
802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz: -70dBm @ MCS7;
802.11ac 20MHz: -67dBm @ MCS8; 802.11ac: 40MHz: -63dBm @ MCS9; 802.11ac 80MHz: -59dBm @ MCS9; 802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS11;802.11ax 80MHz: -56dBm @ MCS11;802.11ax 160MHz: -52dBm @ MCS11
2.4G
802.11b: -96dBm @ 1Mbps, -88dBm @ 11Mbps; 802.11g: -93dBm @ 6Mbps, -75dBm @ 54Mbps;
802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz: -70dBm @ MCS7;
802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS11
SSIDs
32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients
256
Network Interfaces
1 x 10/100/1000M uplink Ethernet port with POE/POE+
2 x 10/100/1000M Ethernet port with PSE
1 x 10/100/1000M Ethernet port
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount, kits included
LEDs
1x tri-color LEDs for device tracking and status indication
Network Protocols
IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GDMS Networking offers a free cloud management platform for unlimited GWN APs
GWN.Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at
PSE max output: Total 12W power budget for LAN2/LAN3
Maximum Power Consumption: 7.5W (Excluding PoE Output)
Environmental
Operation: 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Compliance
FCC, CE, RCM, IC
Dimensions
135 x 115 x 30mm
Weight
253g
