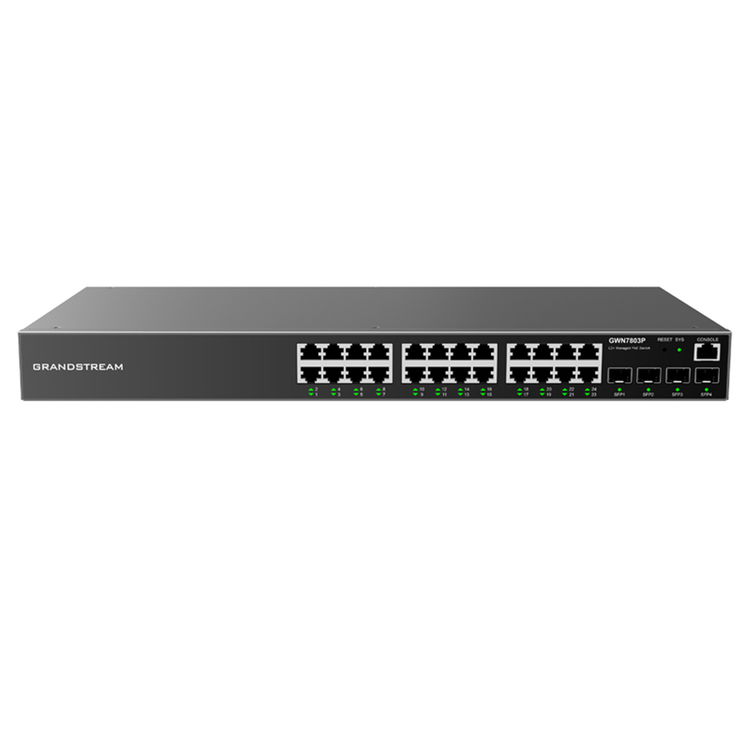

Grandstream GWN7803P 28-Port Gigabit L2+ Managed PoE Switch (370W)
Grandstream GWN7803P 24 Port Gigabit POE Managed Switch
- 24 Gigabit Ethernet ports and 4 Gigabit SFP ports
- Supports deployment in IPv6 and IPv4 networks
- Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
- Built-in QoS allows for prioritization of network traffic
GWN7800 Series of Layer 2+ Network Switches
The Grandstream GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable.
The Grandstream GWN7800 series supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.
The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to-medium businesses.
Model No.
GWN7803P
POE Supported
Yes
Network Protocol
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Gigabit Ethernet Ports
24
Gigabit SFP Ports
4
Console
1
# of PoE Ports
24
Integrated Power Supply
400W
Max Output Power per PoE Port
30W
Max Total PoE Output Power
360W
PoE Standards
IEEE 802.3af/at
Auxiliary Ports
1x Reset Pinhole
Forwarding Mode
Store-and-forward
Total non-blocking throughput
28Gbps
Switching Capability
56Gbps
Forwarding Rate
41.66M packets per second
Packet Buffer
4.1MB
Switching
8K static, dynamic and filtering MAC addresses; 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN; VLAN virtual interface; GVRP (pending); 8 link aggregation groups; Spanning tree, 64 instances for STP/RTSP/MSTP
Multicast
IGMP Snooping, MLD Snooping, MVR
QoS/ACL
Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending); Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 1.5K ACL for Ethernet, IPv4 and IPv6
DHCP
DHCP server, DHCP relay, Option 82, 60,160 and 43
Maintenance
CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security
User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection and loopback protection; Kensington Security Slot (Kensington Lock) support
Mounting
Desktop, wall-mount, or rack-mount (rack-mount brackets included)
LEDs
1x tri-color LED for device tracking and status indication, 28x green-color LEDs for data ports, 24x yellow-color LEDs for PoE ports
Fan
2
Environmental
Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Dimensions
440mm(L)*200mm(W)*44mm(H)
Unit Weight
3.3Kg
