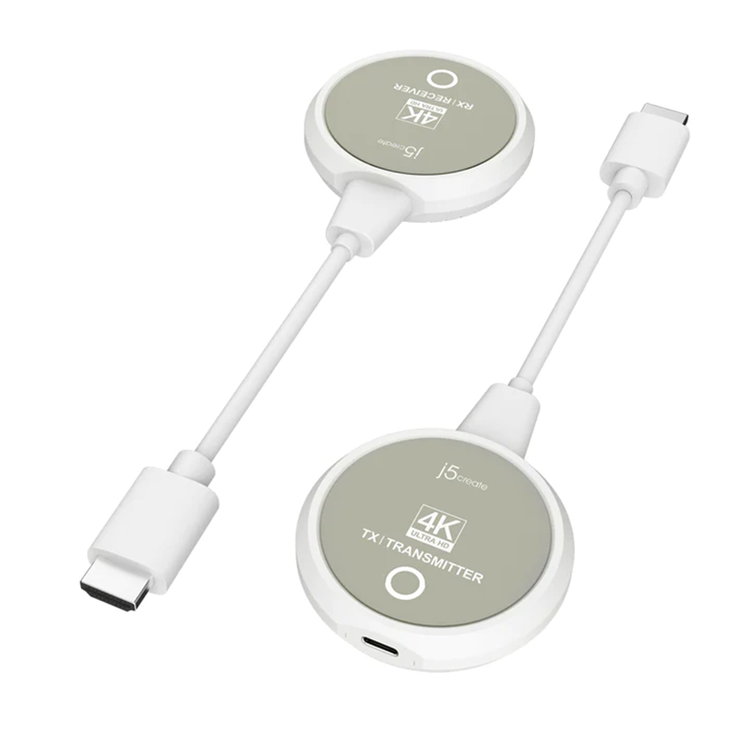

The JVAW75 4K Wireless Display HDMI™ Extender comes with both a transmitter and receiver kit. With a receiver distance of up to 98.4 feet (30m) and minimal latency, it can deliver a 4K video and audio signal to an HDMI™ capable TV set, projector, or monitor.
Other HDMI™ sources, such as DVD players, Blu-ray™ players, PCs, notebooks and game consoles (ex. Sony® PlayStation™ 4 / 5, Nintendo Switch™) can be extended. The JVAW75 supports resolutions up to 4K and stereo digital audio through HDMI™ and is completely HDCP compliant so o you can watch your favorite streaming services.
Display 4K Content Wirelessly From Your Laptop
Enjoy a Crystal Clear Resolution Up to 4K and Lifelike Colors
Plug-and-Play, Cast Your Content in Seconds
Supports up to 4K resolution and works with popular streaming apps like
Built-in Dual Band (2.4 GHz / 5 GHz) Offers Smooth Wireless Streaming
Compatible with Miracast™, AirPlay®, and Google™ Chromecast™
Cast content from your mobile device that lack an HDMI™ port such a smartphone or tablet
Suitable for laptops with HDMI™ Video Output
Compact Design, Great for Home, Office, School, or On-the-Go
Hardware
Host Connector
HDMI™ Male
Infared
N/A
Led Indicators
HDMI™ Transmitter (TX):
-Solid White: Device is connected to the RX successfully and is able to be operated properly.
-Blinking (Slow): The device is ready and trying to connect to RX as Receiver is being connected up.
-Blinking (Fast): The device is processing to pair with RX.
-Light off: The device has malfunctioned, OR no power input.
HDMI™ Receiver (RX):
-Solid White: The device is power on and operating properly.
Ports
N/A
Power Source
USB-C® Female
Performance
Audio Channe
l2.1 via HDMI™
Esd Protection
N/A
Hdcp Compliance
HDCP 1.4
Hdmi Compliance
HDMI™ v1.4
Infared Return Frequency
N/A
Ovp Protection
N/A
Rf Output Power
N/A
Security - Encryption
WPA2
Supported Resolution - Output
3840 x 2160 @ 30 Hz
1920 × 1080 @ 60 Hz
1280 × 720 @ 60 Hz
Physical Specifications
Cable Length
HDMI™ Transmitter (TX): 6 in. (152.3 mm)
HDMI™ Receiver (RX): 6 in. (152.3 mm)
Color
White/ Grey
Enclosure Type
Plastic
Operating Humidity
< 85% non-condensing
Operating Temperature
+14 to +104°F (-10 to +40°C)
Product Depth
HDMI™ Transmitter (TX): 0.67 in. (17 mm)
HDMI™ Receiver (RX): 0.67 in. (17 mm)
Product Height
HDMI™ Transmitter (TX): 2.42 in. (61.47 mm)
HDMI™ Receiver (RX): 2.42 in. (61.47 mm)
Product Weight
tHDMI™ Transmitter (TX): 2.22 oz (63g)
HDMI™ Receiver (RX): 2.22 oz (63g)
Product Width
HDMI™ Transmitter (TX): 2.6 in. (66 mm)
HDMI™ Receiver (RX): 2.6 in. (66 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
-4 to +122°F (-20 to +50°C)
Wireless Protocols
Antenna Type
Internal antenna
Channel Width
20 MHz, 40 MHz
Frequency
2.4 GHz, 5 GHz
Range
Up to 10 – 30 meters
*Transmission range up to 98 ft /30m, if signal crosses walls, signal distance might be shortened to 32 ft /10 m
Standard
IEEE 802.11ac
Package Contents
Contains
1 – JVAW75 4K Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver)
2 – USB-C® to USB™ Type-A power cable (Cable Length: 100 cm, Color: White)
1 – HDMI™ extension cable (Cable Length: 60 cm, Color: White)
1 – Quick Installation Guide (QIG)
