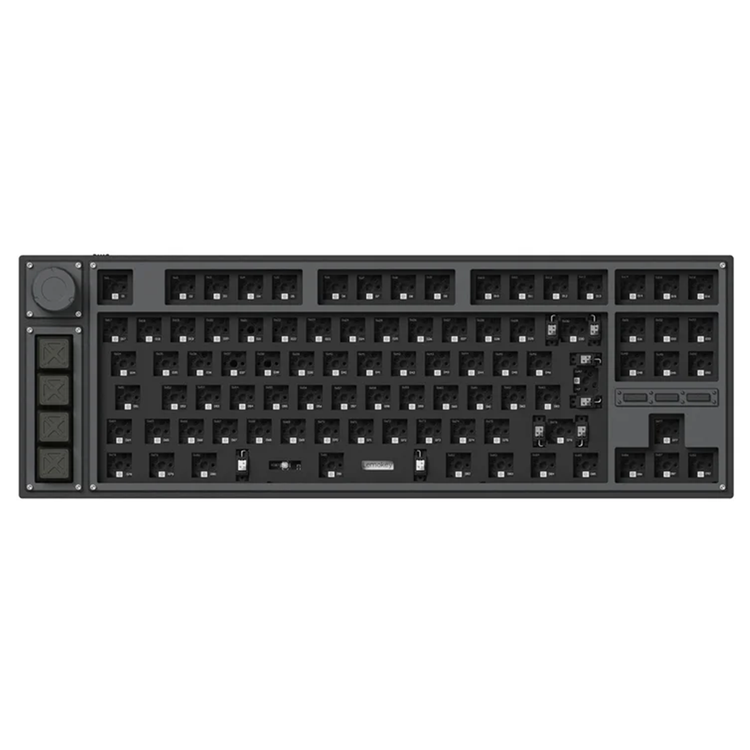

Keychron Lemokey L3 80% Barebone Carbon Black QMK/VIA Wireless Mechanical with Knob Keyboard
LEMOKEY L3 ISO Layout Versions
Meet the Lemokey L3 ISO, a 2.4 GHz full metal QMK/VIA custom mechanical keyboard built for peak performance. Dominate the game in style with the 2.4 GHz wireless connection in the L3's solid metal body. The open-sourced QMK/VIA software brings endless possibilities for you to customize your favorite keys and macros with ease.
2.4 GHZ WITH 1000 HZ POLLING RATE
Get ready for a brand new gaming experience with the L3's 2.4 GHz wireless connection with a 1000 Hz polling rate. You can also connect the L3 with up to 3 devices through its stable Bluetooth 5.1 for seamless multitasking across your computer, phone, and tablet. Switch among them swiftly.
DURABLE AND TOUGH
The L3 is not just a tool, but a piece of art on your desk. The L3 is created with a 6063 aluminum CNC machined body, polished, anodized and sandblasted finish, and twenty-four manufacturing processes.
CUSTOMIZE WITH EASE
Every detail matter to make your favorite keyboard, that's why every component on the L3 can be assembled, customize and adjust easily to create your ultimate typing experience.
DAMPENED SOUND AND ELASTIC
Experience the next level of key sounds and comfort with the Keychron signature double-gasket mount design. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
OSA PROFILE NON-BACKLIT KEYCAPS
To further leverage your typing experience, the L3 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and non-backlit PBT keycaps that aim to provide a more comfortable fingertip feel, excellent oil resistance, and prevent the legends from fading out.
KNOB & MACRO COLUMN
Upgrade your gaming experience with the additional macro keys and aluminum rotary encoder. It allows you easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, or volume, etc
REMAP ANY KEY AND ANY MACRO
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Lemokey Launcher web app.
CUSTOMIZE YOUR SWITCH ANYTIME
Every detail matters for a personalized typing experience, that's why we give you the power. You can hot-swap every switch on the L3 with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.
SOUTH-FACING RGB
The south-facing RGB is designed to illuminate backlight to the typist when the non-shine-through PBT keycaps are installed. With 22 types of RGB backlight settings (Watch the video above for all backlight settings), you can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.
SMOOTH AND STABLE
The built-in PCB-mounted screw-in stabilizers create a smooth typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. You can even customize your favorite 3rd parties stabilizers on your own.
Dimension
401 x 137 mm (15.78 x 5.39 inches)
Number of Keys
91 (Unique tenkeyless layout)
Layout
ISO Barebone
Back Height without keycaps
29.84 mm (1.17 inches)
Front Height
19.8 mm (without keycaps)
Back Height
29.84 mm (without keycaps)
Weight
About 1976 g (Fully Assembled version)
Frame Material
Full CNC machined aluminum
Plate Material
PC
Stabilizer
Screw-in PCB stabilizer
Switch Face
South-facing RGB
Backlight
22 types of RGB backlight options plus endless possibilities
Hot-swappable
Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCU
ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Cable Length
1.8 m
Polling Rate
1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
Operating Environment
-10 to 50°C
Battery
4000 mAh Rechargeable li-polymer battery
BT Working Time (Backlit off)
Up to 200 hours (Lab test result may vary by actual use)
BT Working Time (RGB)
Up to 100 hours (Lowest brightness)
Charging Time
Around 5 hours
Charging Port
USB type-C
Bluetooth Version
5.1
Compatible System
Windows/macOS/Linux
Connectivity
2.4 GHz/Bluetooth / Type-C wired
Bluetooth Device Name
Lemokey L3
Bluetooth Operating Distance
Within 10 meters (Open space)
