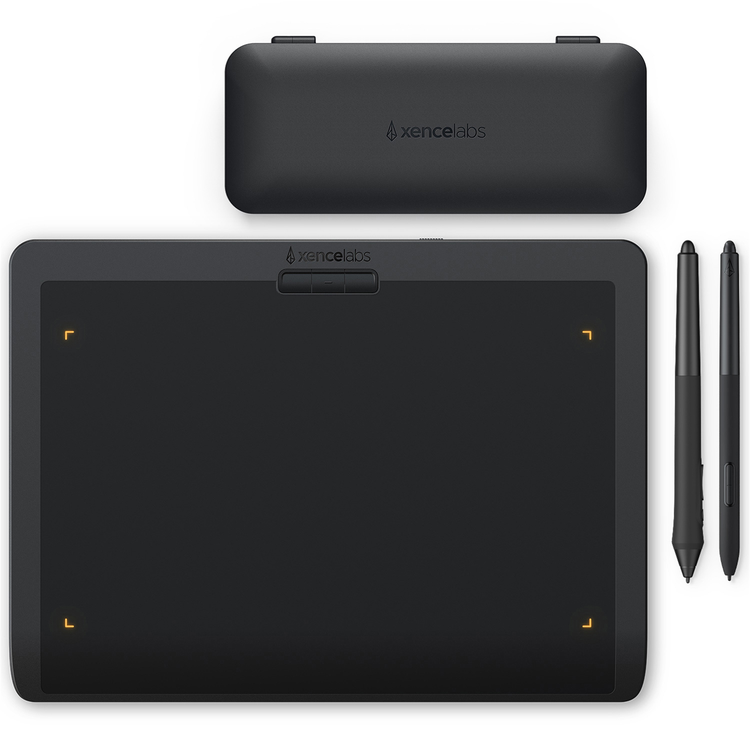

Xencelabs Pen Tablet Small
Designed with the input of industry-leading artists, our Pen Tablet delivers a minimalist design that prioritizes workflow, comfort, and intuitive use. It includes additional accessories and tools providing a cost-effective and natural drawing experience for professionals. *The Xencelabs Quick Keys sold separately.
Compact and portable, the Pen Tablet Small is ideal for creatives on the go and those with limited desk space. With an active area of 6.93X3.89 inches, adjustable LED lights to define the drawing area, and two different sized pens, the Pen Tablet Small provides creatives with all the functionality and accessories they need for their workflow.
Two different sized pens come standard with our tablet, both fully customizable to your workflow. The wider barreled, 3 Button Pen has three programmable buttons + eraser to transform this pen into your fully customized tool. The smaller barreled, Thin Pen handles like your favorite pen or pencil and has two assignable buttons + eraser.
The tablet features a seamless and gently curved palm rest to maximize comfort, as well as adjustable LED lights, which help define the active drawing area. The smaller footprint of this pen tablet is optimal for creating graphics layouts, or when editing involves control points, transformation handles or filters. With a drawing surface aspect ratio of 16:9 native, the active area maps exactly to most industry-standard monitors out of the box. The Pen Tablet Small ships with a protective carrying case for your tablet, your accessories including the USB cable, a drawing glove, and the pen case that contains both digital pens, a dongle, adapter, nibs, and nib extractor.
General
Model Number
BPH0812W-A
Color
Carbon Black
Product Dimensions (W x H x D)
9.21 x 7.27 x 0.3 in / 234.18 x 184.66 x 8 mm
Active Area Size
6.93 x 3.89 in / 176.10 x 99.05 mm
Active area aspect ratio
16 : 9
Product Weight
398g
Hours Per Charge
16 hours (2.5 hours charging time)
Cable included
USB type C to USB type A (Adapter provided)
Connectivity
Wireless or USB
Technology
EMR (Electro-Magnetic Resonance)
System requirements
Windows®7 or later, Mac OS X 10.12 or later, Linux , wireless or cable connection requires USB Type-A port (includes Type-C adapter), internet access to download driver.
Pens + Case
Pen models:
PH5-A (3 Button Pen) / PH6-A (Thin Pen)
3 Button Pen
3 buttons + eraser
Thin Pen
2 buttons + eraser
Pressure levels
8192 levels
Pen tilt range
± 60 degree (both pens)
Pen grip material
Soft Touch Rubber
Pen size
6.20 inches / 157.56 mm (3 Button Pen) 6.20 inches / 157.54 mm (Thin Pen)
Pen weight
3 Button Pen: 17 g / Thin Pen: 12 g (approx)
Certifications
CE/WEEE/FCC/KC/TELEC/EAC/RCM/RoHS/UKCA /WERCS/NOM/CA PROP65
What’s in the Box
Items included
Xencelabs Pen Tablet Small (BPH0812W-A)
3 Button Pen (PH5-A)
Thin Pen (PH6-A)
Pen Case (H05-A)
Dongle (ACD12-A)
USB Cable (ACWTU06-201A)
Nibs (6 Standard) (ACTPH6A-A)
Nibs (4 Felt) (ACTPH6A-B)
Glove Medium (ACG-12M)
Adapter – USB-A to USB-C
Carrying Case
Nib Extracting Ring
Quick Start Guide / Thank You Card
Warranty Booklet
