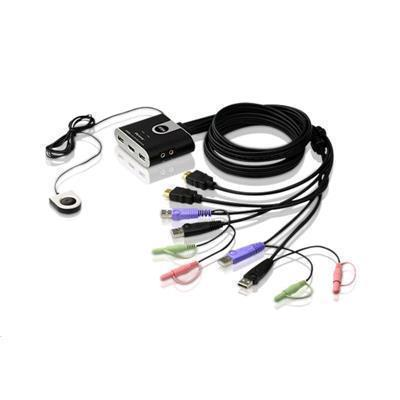

Aten CS692 2 Port USB HDMI/Audio Cable KVM Switch
The CS692 HD USB KVM Switch links two HD-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
- One HD video console controls two HD-enabled PCs or devices
- HDMI compatible; HDCP compatible
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Multiplatform support - Windows, Mac, Linux
- Compact design, built-in all-in-one cables (2 x 1.2 m)
- Superior video quality - up to 1920 x 1200; 1080p
- Compatible with widescreen LCD monitors
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
- Supports gaming and multimedia keyboards
- Supports multifunction and wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac keyboard support and emulation
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
- Non-Powered
- Firmware upgradable
Computer Connections
2
Console Connections
1
Port Selection
Remote Port Selector, Mouse, Hotkeys
Connectors
Keyboard
1 x USB Type A Female (Silver)
Video
1 x HD Type A Female (Black)
Mouse
1 x USB Type A Female (Silver)
Speakers
1 x Mini Stereo Jack Female (Green)
Mic.
1 x Mini Stereo Jack Female (Pink)
KVM Ports
Keyboard
2 x USB Type A Male (Purple)
Video
2 x HD Type A Male (Black)
Mouse
2 x USB Type A Male (Black)
Speakers
2 x Mini Stereo Plug Male (Green)
Mic.
2 x Mini Stereo Plug Male (Pink)
LEDs
KVM
2 (Green)
Cable Length
KVM
2 x 1.2 m
Remote Port Selector
1.8 m
Emulation
Keyboard/Mouse
USB
Video
1080p; 1920 x 1200
Scan Interval
3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption
DC 5V, 2.65W
Environment
Operating Temp.
0 - 50C
Storage Temp.
-20 - 60C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.41 kg
Dimensions (L x W x H)
8.24x6.65x2.52cm
Package Contents
Items included
1x CS692 2-Port USB HD Audio/Video KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
