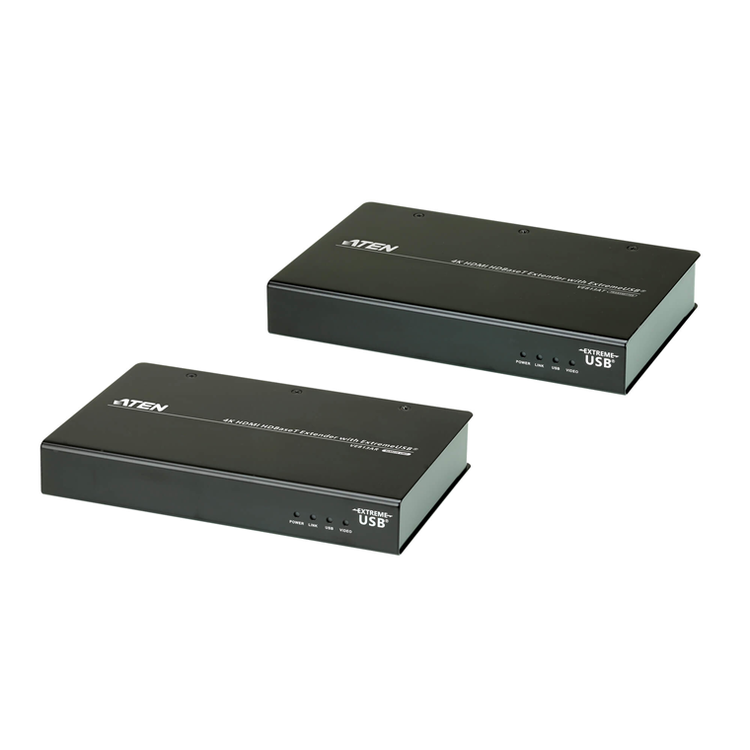

The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Color, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronizing files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage.
- Implements HDBaseT extension technology using only one Cat 5e/6/6a cable that connects the transmitter and receiver
- Anti-jamming - high quality video transmissions via HDBaseT technology that resists signal interference
- Supports Dolby True HD and DTS HD Master Audio
- ExtremeUSB® - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- USB 2.0 Support* - connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel, USB 1.1 web cameras and other USB devices - which require moderate amounts of bandwidth
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Works with all major operating systems: Windows®, OS X®, and Linux®
- Rack-mountable
*Note: The VE813A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices
VE813A Reciever
Video output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ohms
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
Up to 340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K@70m (Cat 5e/6) / 100m (cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output
1 x HDMI Type A Female (Black)
Power Consumption
5 VDC, 5.75W
Note: For the VE813R, power consumption will be 13.25W when all 3 USB connectors are occupied.
Physical Properties
Weight
0.62 kg ( 1.37 lb )
Dimensions (L x W x H)
18.20 x 11.61 x 2.87 cm
Housing
Metal
Carton Lot
5 pcs
Control
USB Channel
3 x USB Type A Female
Transfer Rate: USB 2.0 (Up to 40 Mbps)
Connectors
Power
1 x DC Jack
Environmental
Operating Temperature
0-40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
VE813A Transmitter
Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
1.8 m
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
Up to 340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K@70m (Cat 5e/6) / 100m (cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input
1 x HDMI Type A Female (Black)
Power Consumption
5 VDC, 5.75W
Note: For the VE813R, power consumption will be 13.25W when all 3 USB connectors are occupied.
Physical Properties
Weight
0.61 kg ( 1.34 lb )
Dimensions (L x W x H)
18.20 x 11.61 x 2.87 cm
Housing
Metal
Carton Lot
5 pcs
Control
USB Channel
1 x USB Type B Female
Transfer Rate: USB 2.0 (Up to 40 Mbps)
Connectors
Power
1 x DC Jack
Environmental
Operating Temperature
0-40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
