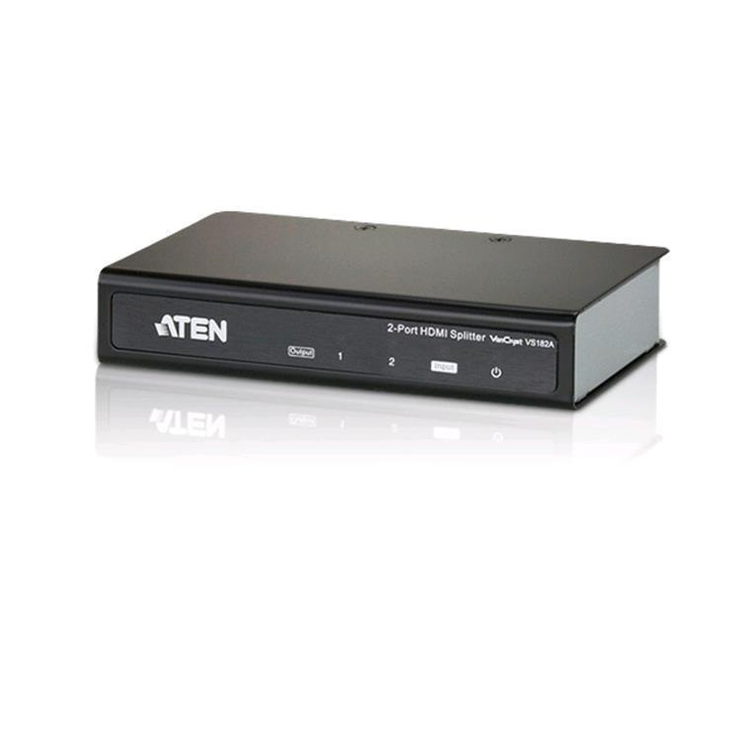

VS182A - 2 Port HDMI Splitter
The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Features
- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play – no software installation required
Video Input
Interface
1 x HDMI Type A Female (Black)
Impedance
100 Ohms
Max distance
1.8 m
Video Output
Interface
2 x HDMI Type A Female (Black)
Impedance
100 Ohms
Video
Max. data rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. pixel clock
340 MHz
Compliance
HDMI (3D, Deep Color, 4K);
HDCP Compatible
Max resolutions
Up to 4K@60 Hz (4:2:0)
Max distance
Up to 15 m
Audio
Input
1 x HDMI Type A Female (Black)
Output
2 x HDMI Type A Female (Black)
Power
Connector
1 x DC Jack
Consumption
5.3 VDC, 2.0W
Environment
Operating Temp.
0-50 °C
Storage Temp.
-20 - 60 °C
Humidity
0-80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.31 kg
Dimensions (L x W x H)
12.50 x 8.00 x 2.50 cm
