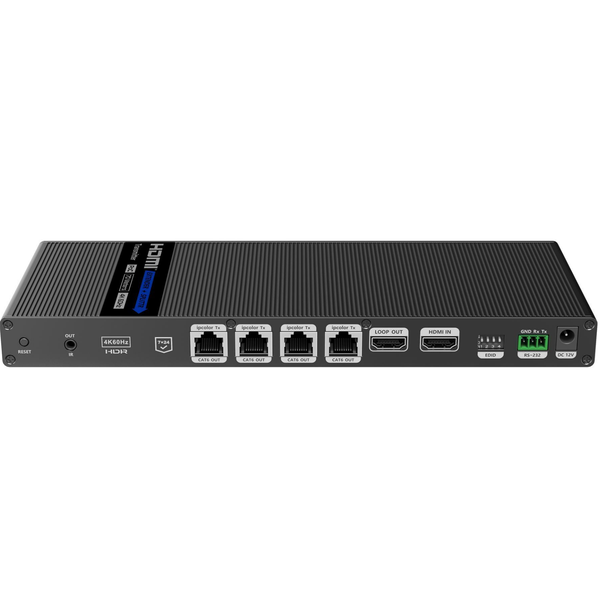

LENKENG LKV824P 1 In 4 Out HDMI Extender Splitter Over Cat6/6a up to 70m. 1x HDMI Input
LENKENG 1-In-4-Out 4K@60Hz HDMI Extender. 1x HDMI in & 4x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Rx.
This product is a 1 input 4 outputs extender splitter kit, which integrates the functions of distribution and extension. It distributes 1x HDMI input signal to 4x identical signal outputs, extends these signals up to 70 meters, and supports 4K@60Hz resolution. It also supports IR passback, RS-232 control and other functions. It is suitable for studios, multimedia classrooms, rail transit, etc.
- Zero-latency transmission.
- Split and extend one HDMI input signal to four identical network output signals.
- Support up to 4K@60Hz resolution.
- Transmission distance up to 70 meters by using Cat6/6A/7 cables.
- Support IR passback (20KHz~60KHz).
- The transmitter supports HDMI loop out.
- The receiver can output the digital audio of the TV or source device from the S/PDIF port.
- Support EDID passthrough or manually set the EDID of the product.
- Support RS-232 command control.
- Surge Protection, Lightning Protection, ESD Protection.
- Equipped with rack mount ears.
- Support PoC, only the transmitter is required to supply power.
Technical parameters
LKV824P
Transport protocol
ipcolor
Split mode
1 IN 4 OUT
Input
1xHDMI
Output
4xRJ45
HDMI signal
HDMI 2.0 compatible with HDCP2.2
PoC
Support
Resolution
480i@60Hz?480p@60Hz?576i@50Hz?576p@50Hz?
720p@50/60Hz?1080i@50/60Hz?1080p@50/60Hz?
1280x960?1280x800?1280x768?1680x1050?
1360x768?1366x768?1600x900?1024x768?800x600?
3840x2160@24/25/30/50/60Hz?4096x2160@24/25Hz
Transmission Distance
CAT6/6A/7=70m
HDMI LOOP OUT
Support up to 4K@60Hz loop output
IR pass back
Support IR pass back, Support 20-60khz IR devices
EDID
Support EDID passthrough and EDID switch
RS-232
Support RS-232 command control
Protection
ESD protection, surge protection, lightning protection
Working Temperature
-20~60?
Storage Temperature
-30~70?
Humidity (no condensation)
0~90%
Power supply
DC12V/3A
Power consumption
<24W
Weight
640g
Material
Aluminium alloy material + crystal panel
Dimension
264.00(L) x 104.00(W) x 23.50(H)mm
