Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable
- INLINE CAPABILITY: You can place the HDMI signal booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
- SIMPLE INSTALLATION: The HDMI booster mounting hardware is included. No CAT5 or CAT6 cable infrastructure required. A power adapter is not required for standard applications, SVUSBPOWER sold separately.
- EASILY CUSTOMIZABLE: The HDMI extender features an equalization switch with ten different levels. The switch lets you adjust the amplification of your signal based on the distance of your cables.
- LONG DISTANCE CAPABILITY: When extending HDMI over long distances, higher resolutions can become unavailable. Using the HDMI amplifier ensures high-definition resolutions up to 1080p at 60Hz.

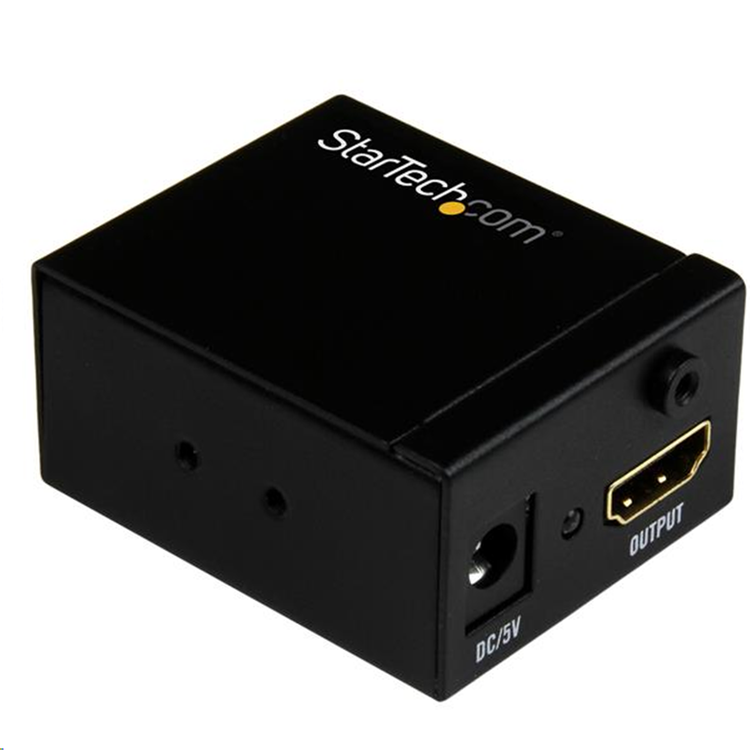

This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
Discreet installation
With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances
The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.
Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.
Applications
- Avoid running network cabling to extend video signals, by using this booster with standard HDMI cabling
- Boost the signal strength of your HDMI video signals for classroom, office or boardroom displays
Connector(s)
Connector A
1 - HDMI (19 pin)
Connector B
1 - HDMI (19 pin)
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
Humidity
5% to 90%
Hardware
AV Input
HDMI
AV Output
HDMI
Cabling
HDMI
Audio
Yes
Rack-Mountable
Yes
Daisy-Chain
No
Indicators
LED Indicators
1 - power LED (blue)
1 - video source LED (blue)
Packaging Information
Package Height
1,3 in [3,3 cm]
Package Length
6,9 in [17,4 cm]
Shipping (Package) Weight
5,4 oz [154,0 g]
Package Width
5,6 in [14,3 cm]
Package Quantity
1
Performance
Maximum Cable Length
114,8 ft [35 m]
Max Distance
35m [115ft]
Maximum Digital Resolutions
1920 x 1080 at 60Hz
Supported Resolutions
1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 × 720
Wide Screen Supported
Yes
Audio Specifications
Audio Specifications
Physical Characteristics
Weight of Product
2,6 oz [74 g]
Color
Black
Material
Steel
Product Length
2,1 in [54,2 mm]
Product Width
1,7 in [4,2 cm]
Product Height
1,0 in [2,6 cm]
Power
Power Source
Not Included (not required for standard applications)
Input Voltage
100 - 240 AC
Output Voltage
5 DC
Output Current
1 A
Center Tip Polarity
Positive
Plug Type
N
Special Notes / Requirements
System and Cable Requirements
The HDMI cable connected to your video source must be longer or equal to the length of the cable connected to your display.
The maximum supported video source cable length is 82 ft. (25m).
The maximum supported display cable length is 33 ft. (10m).
What's in the Box
Included in Package
1 - HDMI signal booster
2 - mounting brackets
4 - mounting screws
1 - screwdriver
