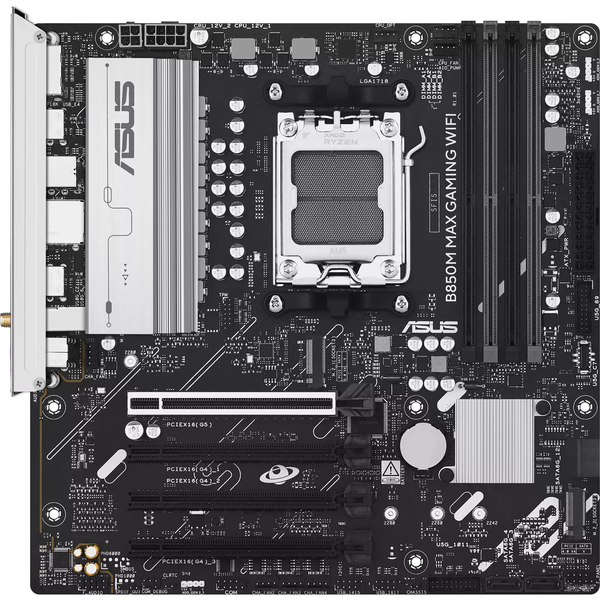

ASUS B850M MAX GAMING WIFI For AMD Ryzen 7000/8000/9000 Series CPUs Socket AM5 - MATX Motherboard
- Model
- B850M MAX GAMING WIFI
- News & Updates
- Socket AM5,
- Please visit our GLOBAL website to check and download the latest updates.
- CPU
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
- Supports up to AMD 170W CPU
- * Refer to https://www.asus.com/support/download-center/ for CPU support list.
- Chipset
- AMD B850 Chipset
- Memory
- 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- Graphics
- 1 x DisplayPort**
- 1 x HDMI™ port***
- * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- 3 x PCIe 4.0 x16 slot (support x1 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
- 3 x PCIe 4.0 x16 slot (support x1 mode)
- * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- ** Specifications vary by CPU types.
- - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported
- Storage
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
- AMD B850 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
- 4 x SATA 6Gb/s ports
- * Specifications vary by CPU types.
- AMD RAIDXpert2 Technology
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
- Ethernet
- 1 x Realtek 1Gb Ethernet
- ASUS LANGuard
- Wireless & Bluetooth
- Wi-Fi 6
- 1x1 Wi-Fi 6 (802.11ax)
- Supports 2.4/5GHz frequency band
- Bluetooth® v5.4*
- * The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- USB
- Rear USB (Total 9 ports)
- 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
- 2 x USB 5Gbps ports (2 x Type-A)
- 5 x USB 2.0 ports (5 x Type-A)
- Front USB (Total 9 ports)
- 1 x USB 5Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps header support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- * USB Type-C® power delivery output: max. 5V/3A
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Premium audio capacitors
- - Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Back Panel I/O Ports
- 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
- 2 x USB 5Gbps ports (2 x Type-A)
- 5 x USB 2.0 ports (5 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
- Internal I/O Connectors
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connectors
- 1 x 4-pin +12V CPU Power connectors
- Storage Related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps connector (supports USB Type-C® )
- 2 x USB 5Gbps header support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable RGB Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin System Panel header
- Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM
- - LANGuard
- - Overvoltage protection
- - SafeSlot
- - Stainless-steel back I/O
- ASUS Q-Design
- - Q-Dashboard
- - Q-DIMM
- - Q-LED Core
- - Q-Slot
- ASUS Thermal Solution
- - VRM heatsink design
- ASUS EZ DIY
- - BIOS FlashBack™ button
- - BIOS FlashBack™ LED
- - Pre-mounted I/O shield
- - SafeSlot
- Aura Sync
- - Addressable RGB Gen 2 headers
- Software Features
- ASUS Exclusive Software
- Armoury Crate
- - Aura Creator
- - Aura Sync
- - Fan Xpert 2+
- ASUS AI Advisor
- ASUS Driver Hub
- ASUS GlideX
- TurboV Core
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- - ASUS MyHotkey
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Manageability
- WOL by PME, PXE
- Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x ASUS Wi-Fi moving antenna
- 2 x Screw packages for M.2 SSD
- Documentation
- 1 x Quick start guide
- Operating System
- Windows® 11, Windows® 10 64-bit
- Form Factor
- mATX Form Factor
- 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
